Schneider G80N3E800: Product Overview and Applications

Introduction

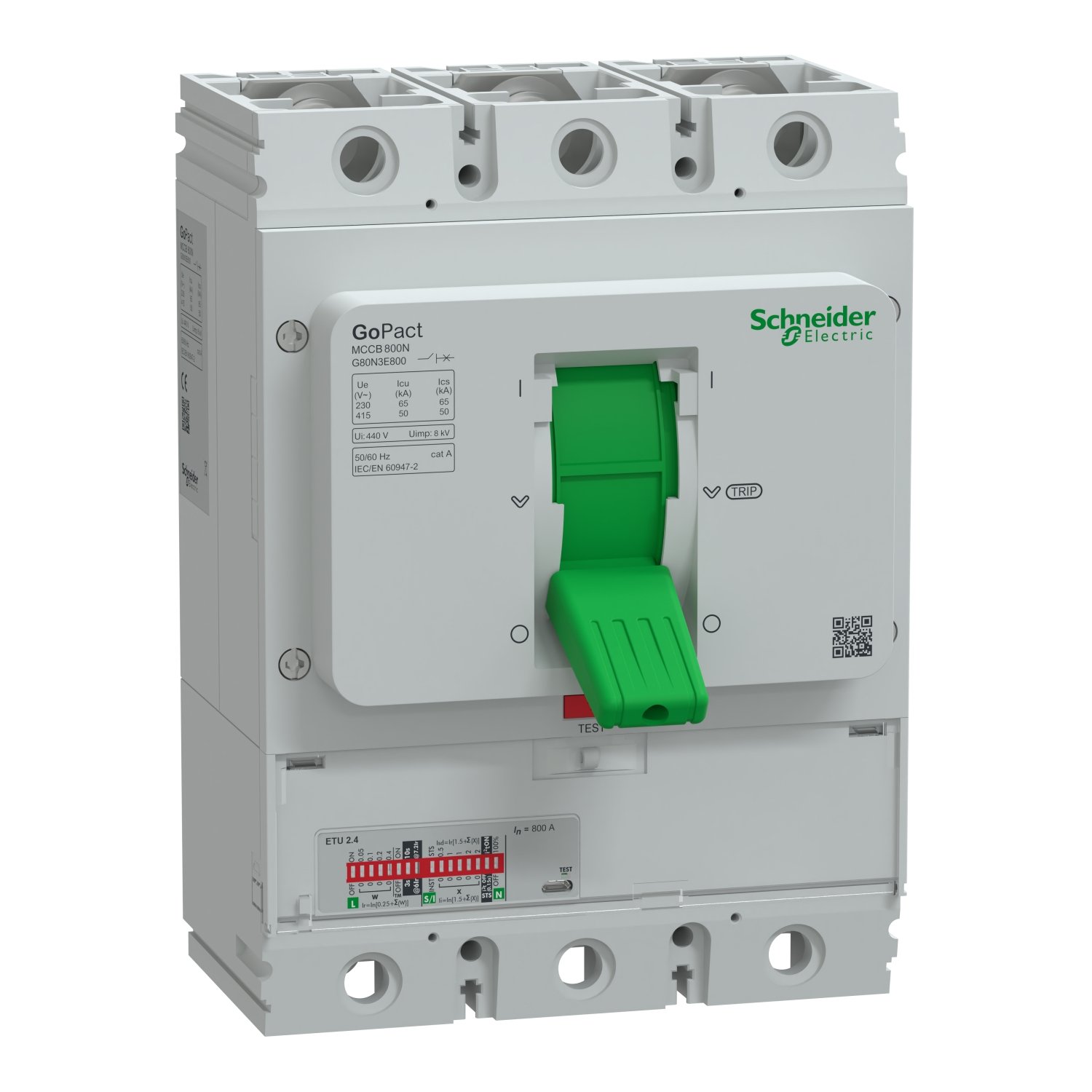

The Schneider G80N3E800 is a robust molded case circuit breaker (MCCB) that provides advanced circuit protection for high-capacity electrical systems. With a rated current capacity of 800A, this MCCB is designed to protect electrical equipment from overloads, short circuits, and other electrical faults. Ideal for heavy-duty industrial, commercial, and renewable energy applications, the G80N3E800 delivers dependable, high-performance protection in demanding environments.

Key Features of Schneider G80N3E800

• High Current Capacity (800A): Handles high power demands, suitable for large-scale applications and heavy machinery.
• Thermal-Magnetic Trip Unit: Offers dual-mode protection with thermal sensing for overloads and magnetic sensing for instantaneous short-circuit protection.
• Adjustable Trip Settings: Allows users to customize trip levels to match specific application needs, enhancing system reliability and efficiency.
• Compact and Durable Design: Engineered for easy integration into control panels and distribution boards without taking up excessive space.
• High Breaking Capacity: Built to interrupt high fault currents, ensuring reliable circuit protection in the event of large electrical faults.

Applications of Schneider G80N3E800

1. Heavy Industrial Facilities: Provides critical protection for heavy machinery and industrial equipment, such as motors and transformers, in sectors like manufacturing and mining.
2. Power Distribution in Commercial Buildings: Essential for large commercial buildings, ensuring stable power distribution and protecting key systems, including HVAC and lighting.
3. Data Centers and IT Infrastructure: Safeguards power distribution units in data centers, where maintaining consistent power is vital.
4. Renewable Energy Installations: Ideal for solar and wind farms, protecting against faults in high-current circuits within renewable energy systems.
5. Utility and Power Generation Plants: Used in substations and power generation facilities for protecting distribution networks.

Benefits of Using Schneider G80N3E800

• Enhanced Safety: Provides reliable protection, reducing risks to equipment and personnel in high-power environments.
• Customizable Protection Levels: Adjustable settings make it adaptable to various applications, ensuring optimal performance for specific systems.
• Reduced Downtime: Prevents damage from electrical faults, helping to avoid costly repairs and downtime in critical operations.
• Efficient Use of Space: Compact design allows it to fit into space-constrained electrical cabinets, simplifying panel layouts.

Conclusion

The Schneider G80N3E800 MCCB is an ideal choice for heavy-duty circuit protection, with its high current capacity, versatile adjustment settings, and compact design. Whether it’s protecting heavy industrial equipment, managing power in data centers, or supporting renewable energy systems, this MCCB offers reliable and adaptable protection. It’s an essential component for applications that demand the highest levels of safety, efficiency, and reliability in high-current circuits.
