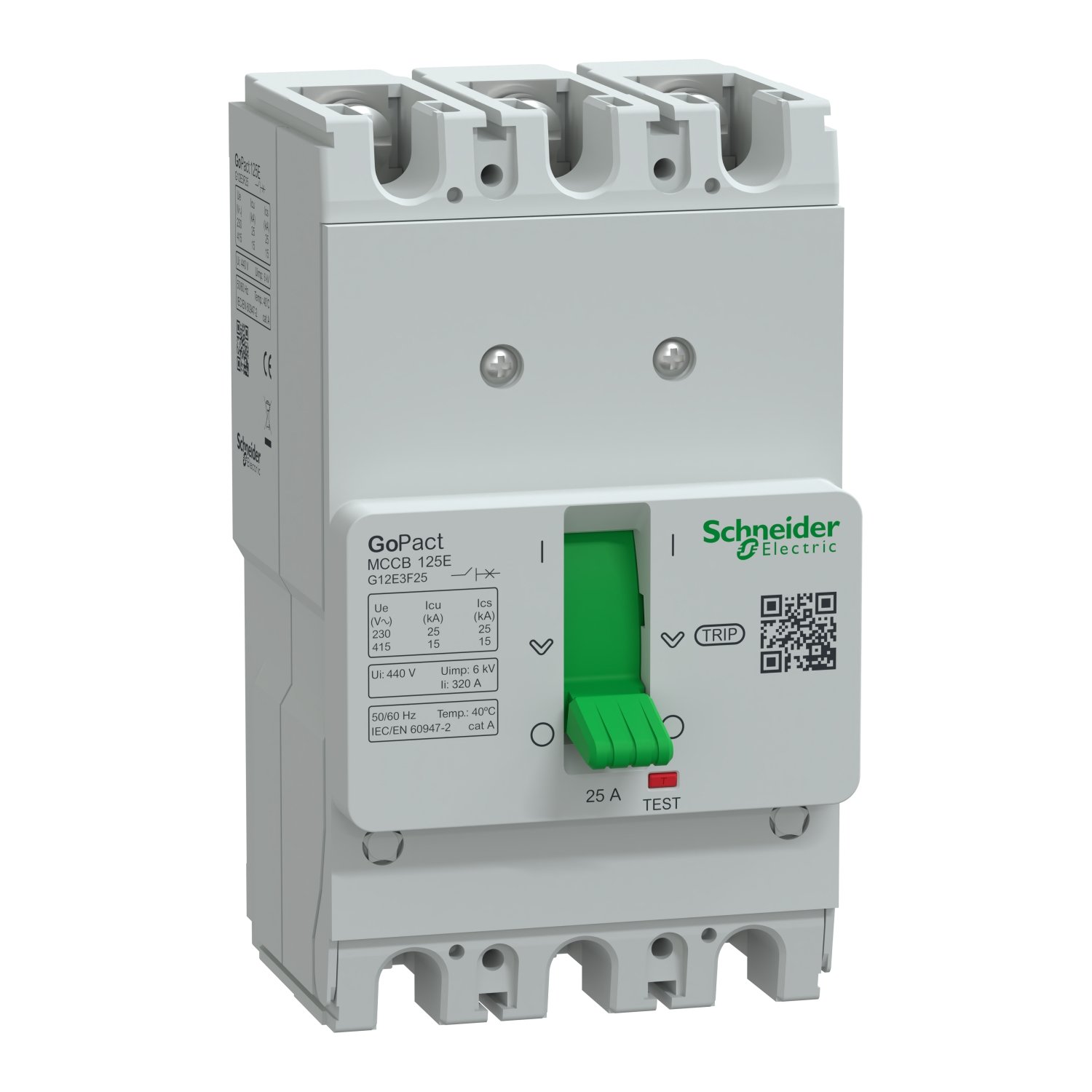

Schneider G12E3F25 | Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 25A rating, TMD trip unit, fixed thermal protection

it circuit breaker, part of the GoPact MCCB series, is a robust electrical protection device designed for various industrial and commercial applications. In this article, we delve into its features, specifications, benefits, and applications to understand its significance in electrical systems.

Introduction to Schneider G12E3F25 Circuit Breaker

Schneider Electric is a renowned name in the electrical industry, known for its innovative and reliable products. it circuit breaker is a prime example of their engineering excellence, offering efficient protection against overloads and short circuits.

Understanding GoPact MCCB

The GoPact Molded Case Circuit Breakers (MCCB) series by Schneider Electric is designed for high-performance protection in low-voltage applications. These breakers are compact, reliable, and easy to install, making them a preferred choice for many industries.

Specifications of Schneider G12E3F25

Poles and Rating

it is a 3-pole circuit breaker with a rating of 25A, suitable for handling moderate electrical loads effectively.

Breaking Capacity

With a breaking capacity of 15kA at 415VAC, this MCCB can interrupt fault currents without compromising safety or performance.

Trip Unit and Protection

Equipped with a TMD (Thermal-Magnetic Delayed) trip unit, it provides precise protection against overloads and short circuits. Its fixed thermal protection ensures consistent performance even under varying load conditions.

Features of Schneider G12E3F25

The TMD trip unit offers adjustable settings for tailored protection, ensuring optimal operation based on specific application requirements. The fixed thermal protection adds an extra layer of safety, preventing overheating and damage to connected equipment.

Benefits

• Enhanced Safety: Reliable protection against electrical faults minimizes the risk of equipment damage and electrical hazards.
• Durable Performance: Designed for longevity and consistent performance in demanding environments.
• Easy Maintenance: Simplified maintenance procedures reduce downtime and ensure uninterrupted operations.

Applications of Schneider G12E3F25 Circuit Breaker

it applications across various industries, including:

• Industrial Manufacturing
• Commercial Buildings
• Data Centers
• Healthcare Facilities
• Renewable Energy Installations

Installation and Maintenance Guidelines

Proper installation and regular maintenance are crucial for the optimal performance of it circuit breaker. Follow manufacturer guidelines and consult certified professionals for installation and servicing.

Conclusion

it circuit breaker, with its advanced features and reliable performance, is a valuable asset for any electrical system requiring robust protection against overloads and short circuits.
