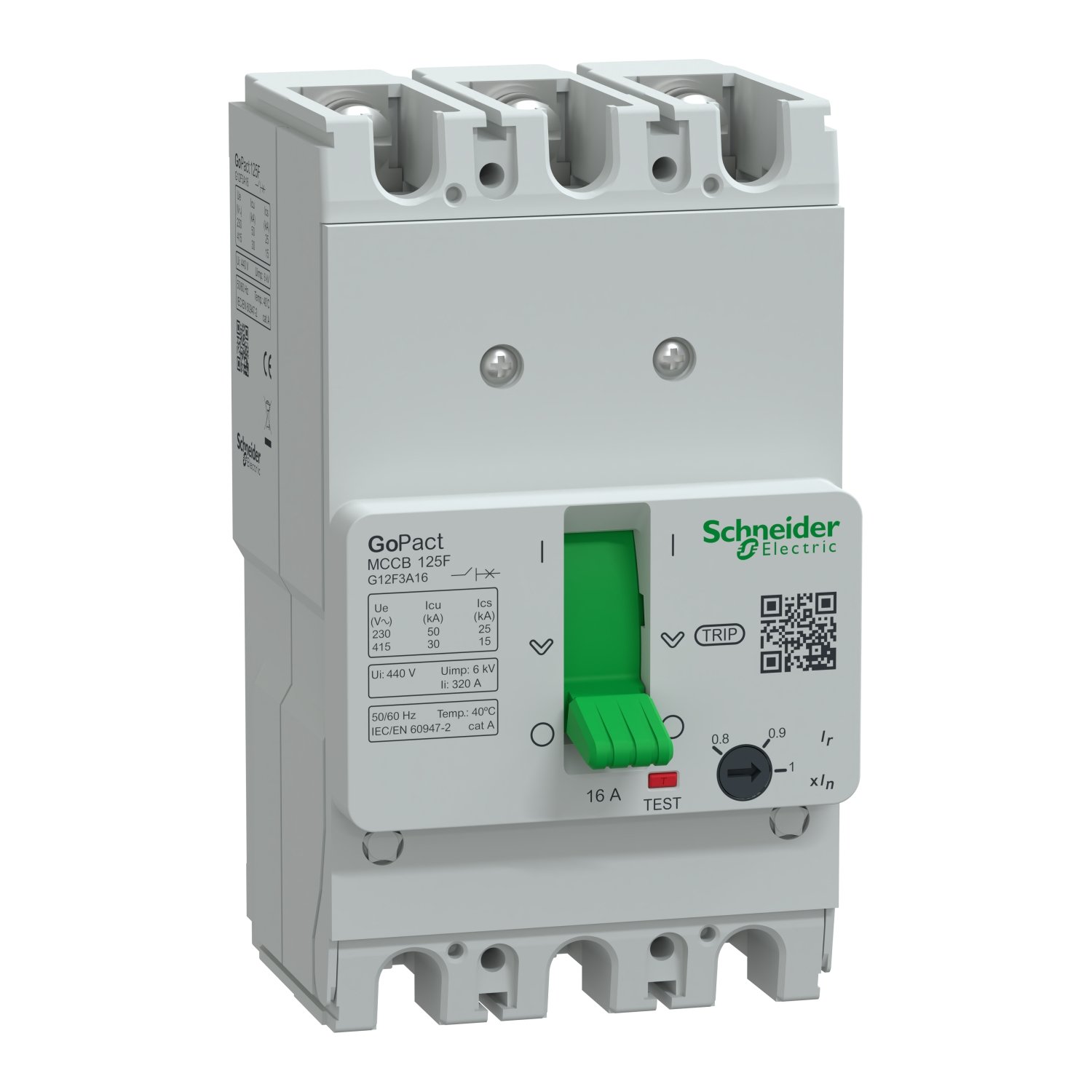

Schneider G12F3A16 | Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection

1. Technical Specifications:

• Model: G12F3A16
• Type: Molded Case Circuit Breaker (MCCB)
• Series: GoPact
• Number of Poles: 3 Poles (3P)
• Rated Current: 16A
• Breaking Capacity: 30kA at 415V AC
• Trip Unit: TMD (Thermal Magnetic)
• Adjustable Thermal Protection: Customizable thermal protection settings for optimal protection
• Voltage Rating: 415V AC
• Frequency: 50/60Hz
• Standards Compliance: IEC 60947-2, UL, CE

2. Features:

High Breaking Capacity: 30kA ensures effective protection in high-risk environments.
TMD Trip Unit: Provides reliable protection against overloads and short circuits.
Adjustable Thermal Protection: Thermal settings are adjustable, allowing customization based on specific application needs.
Compact & Robust Design: Ideal for industrial and commercial applications requiring a space-saving yet durable solution.
Easy Installation: Designed for quick and secure installation in electrical panels.
Enhanced Safety: Protects electrical circuits and equipment from potential damage caused by overloads and faults.

3. Applications:

Industrial Power Distribution: Protects circuits in manufacturing plants and industrial facilities.
Commercial Buildings: Suitable for offices, shopping malls, and other commercial installations.
Motor Protection: Provides reliable protection for motors and heavy-duty machinery.
Renewable Energy Systems: Can be used in solar, wind, and other renewable energy applications for effective circuit protection.

4. Why Choose Schneider G12F3A16?

• Manufactured by Schneider Electric, a global leader in electrical distribution and protection.
• High-performance protection with adjustable thermal settings and a high breaking capacity (30kA).
• Reliable and flexible solution for protecting critical circuits and equipment.
• Compact, easy-to-install design suitable for a wide range of industrial and commercial applications.
