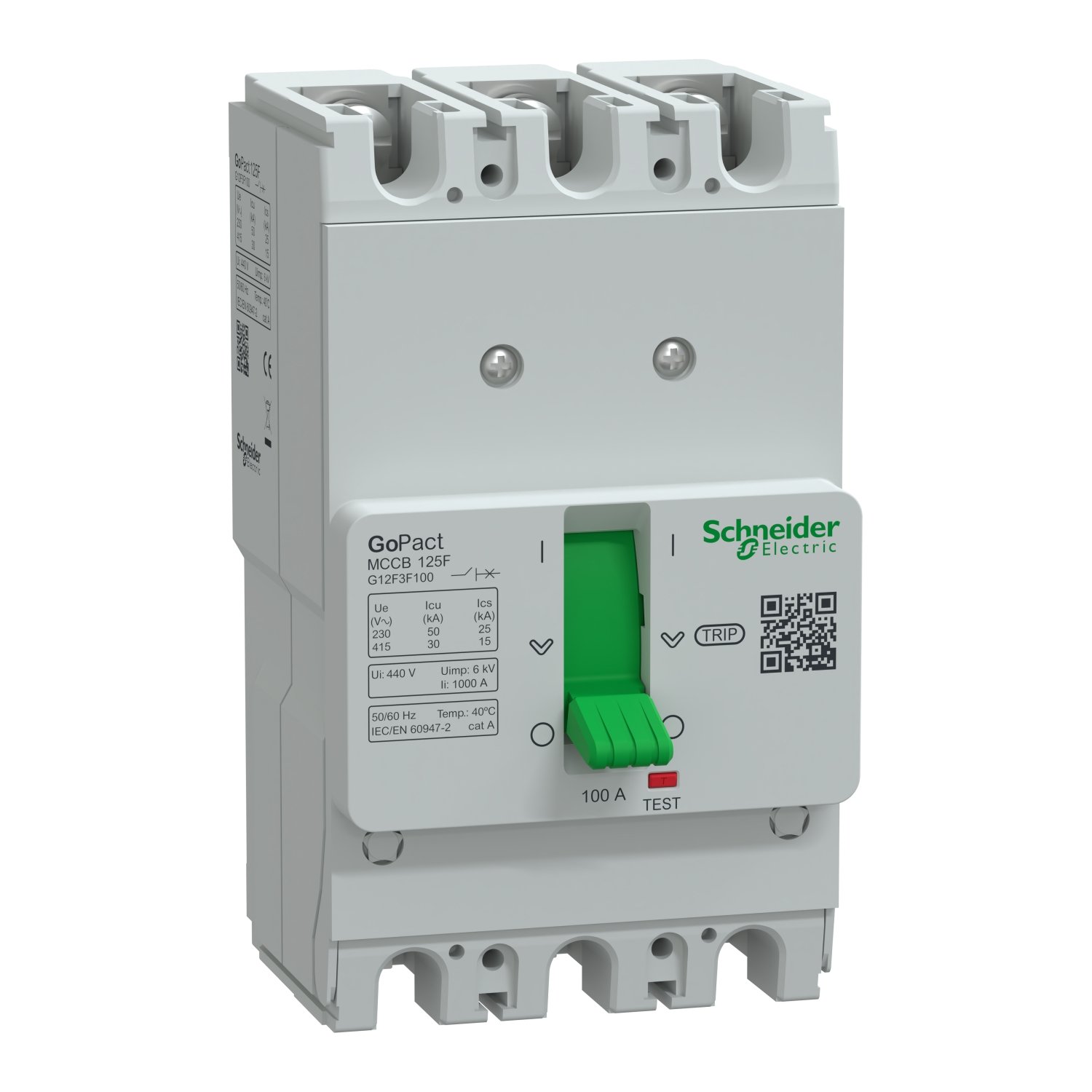

Schneider G12F3F100 | Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection

Schneider G12F3F100 | Circuit Breaker, GoPact MCCB 125, 3P, 30kA at 415V AC, 100A, TMD Trip Unit

1. Overview

The Schneider G12F3F100 is a Molded Case Circuit Breaker (MCCB) from the GoPact MCCB 125 series. It is designed to provide efficient protection against overloads and short circuits in industrial, commercial, and residential applications. With a 100A rating, TMD (Thermal Magnetic) trip unit, and a 30kA breaking capacity at 415V AC, this MCCB ensures high reliability and safety in electrical installations.

2. Key Features

• Rated Current: 100A – Ideal for medium to high-power applications

• Poles: 3P (Three-Pole) – Suitable for three-phase power systems

• Breaking Capacity: 30kA at 415V AC – Provides high fault current protection

• Trip Unit Type: TMD (Thermal Magnetic Device)

  • Thermal Protection: Fixed setting for overload protection

  • Magnetic Protection: Instantaneous trip for short-circuit protection

• Compact & Durable Design – Built for industrial environments

• Standards Compliance: IEC 60947-2

3. Technical Specifications

4. Applications

The Schneider G12F3F100 MCCB is commonly used in:
Industrial Power Distribution – Protects machines, control panels, and distribution boards
Commercial Buildings – Ensures safe electrical operation in offices and shopping malls
Renewable Energy Systems – Used in solar and wind power applications
Motor Protection – Prevents damage due to overload and short circuits
Backup Power Systems – Essential in UPS and generator circuits

5. Benefits

Robust Circuit Protection – Prevents damage due to electrical faults
High Breaking Capacity – Handles fault currents up to 30kA at 415V AC
Reliable & Efficient – Ensures safe operation and reduced downtime
Compact & Space-Saving – Suitable for limited-space installations
Standards Compliant – Meets IEC 60947-2 regulations
