Schneider G12T3F80 | Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection

Schneider G12T3F80 | Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection description

In the world of electrical engineering and power distribution, ensuring safety and efficiency is paramount. One of the key components in this domain is the circuit breaker, a device designed to protect electrical circuits from damage caused by excess current. Among the notable circuit breakers available in the market, it stands out as a reliable and efficient solution for various applications.

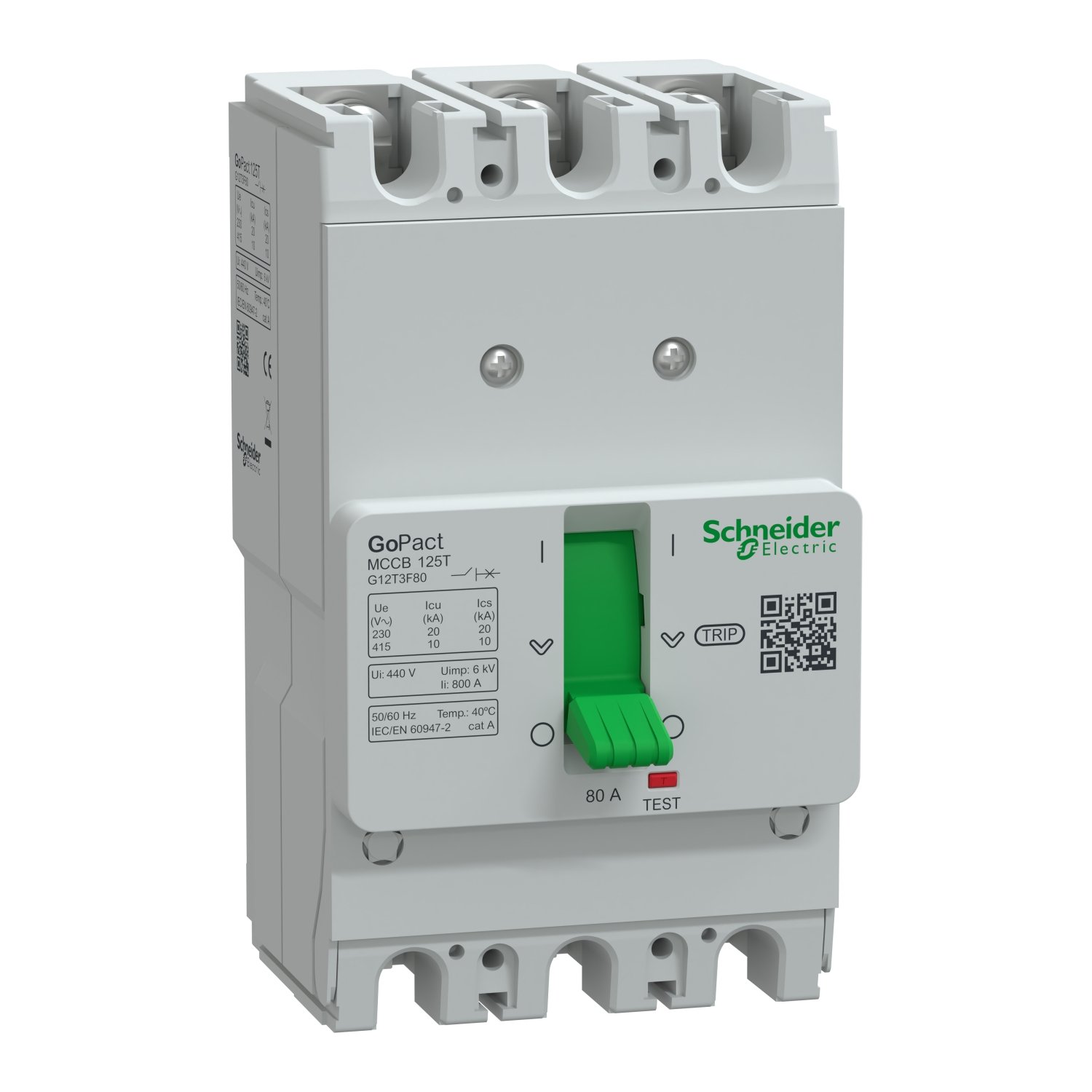

Introduction to Schneider G12T3F80 Circuit Breaker

Circuit breakers play a crucial role in safeguarding electrical systems by interrupting the flow of electricity in case of overloads or short circuits. it is part of the GoPact MCCB 125 series, known for its robustness and performance. This circuit breaker is designed to handle 3 poles, with a breaking capacity of 10kA at 415VAC and an 80A rating.

GoPact MCCB 125 Description

The GoPact MCCB 125 series is renowned for its compact design and high breaking capacity, making it suitable for industrial and commercial applications. It offers reliable protection against overloads and short circuits, ensuring uninterrupted operation of electrical systems.

Technical Specifications

• Voltage and Current Ratings: it operates at 415VAC with a rated current of 80A, making it suitable for medium to heavy-duty applications.
• Pole Configuration and Breaking Capacity: With 3 poles and a breaking capacity of 10kA, this circuit breaker can handle sudden surges in current without compromising safety.

TMD Trip Unit and Fixed Thermal Protection

it is equipped with a TMD (Thermal Magnetic) trip unit, which provides reliable tripping action in response to abnormal currents. Additionally, it features fixed thermal protection to prevent overheating, ensuring longevity and reliability in operation.

Comparison with Other Circuit Breakers

When compared to standard circuit breakers, it offers advanced protection features and higher breaking capacities, making it suitable for demanding environments where electrical safety is paramount.

Application Areas and Industries

it finds applications in a wide range of industries including manufacturing, infrastructure, and commercial facilities. Its versatility and performance make it an ideal choice for protecting critical electrical circuits.

Installation and Maintenance Guidelines

Proper installation of it is crucial for optimal performance. Follow manufacturer guidelines and consult qualified professionals for installation and maintenance procedures. Regular inspections and maintenance routines ensure long-term reliability and safety.

Conclusion

it circuit breaker, part of the GoPact MCCB 125 series, offers advanced protection features and reliable performance for industrial and commercial applications. Its technical specifications, including 3 poles, 10kA breaking capacity, TMD trip unit, and fixed thermal protection, make it a trusted choice for electrical engineers and system integrators.
