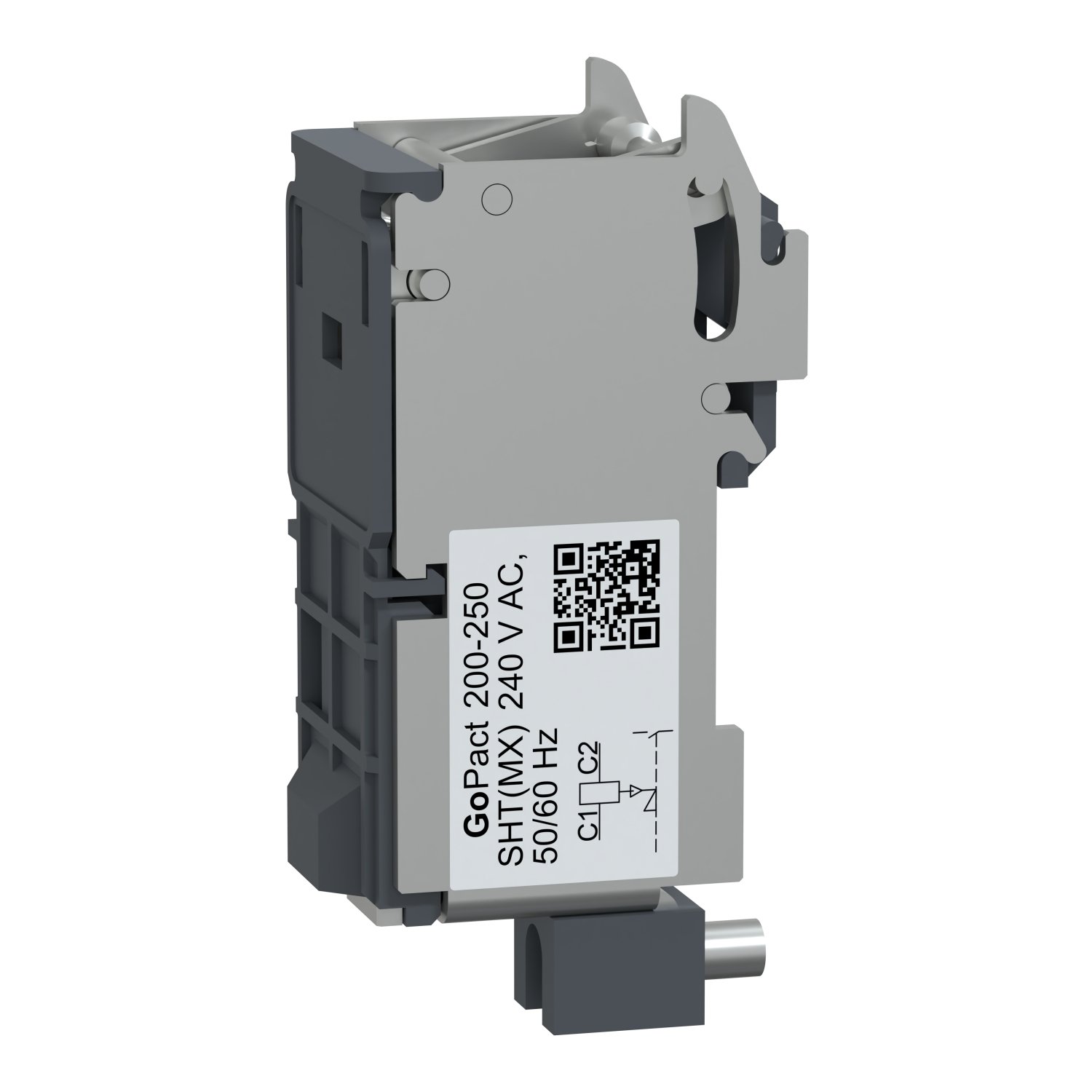

Schneider G20-25SHT240AC Overview

Designed for versatility and reliability, the Schneider G20-25SHT240AC offers a compact and easy-to-install solution for motor protection. With a control voltage of 240V AC and a rated operational current of up to 25 amps, this breaker is well-suited for applications that require precision and durability in motor control.

Key Specifications

• Model Number: G20-25SHT240AC
• Type: Motor Circuit Breaker (MCB) with Shunt Trip feature
• Control Voltage: 240V AC
• Rated Operational Current (Ie): 25 A
• Voltage Compatibility: 240V AC
• Protection Features: Overload, short-circuit, and shunt trip functionality
• Utilization Category: AC-1, AC-3
• Mounting: DIN rail compatible for easy integration

Applications of Schneider G20-25SHT240AC

The Schneider G20-25SHT240AC’s specifications and features make it suitable for various commercial and industrial applications, particularly where remote disconnection capability is advantageous:

• Small Motors in Industrial Applications:
  Ideal for controlling and protecting small motors in industrial equipment like conveyor systems, mixers, and pumps.
• Heating, Ventilation, and Air Conditioning (HVAC):
  Commonly used in HVAC systems to control and protect fan motors, small compressors, and other motor-driven equipment.
• Building Management Systems (BMS):
  Used in building automation for lighting controls, security systems, and other motorized components, with the shunt trip providing emergency control capability.
• Water and Wastewater Treatment:
  Provides protection for small pumps and motors in treatment plants, where reliable motor control and emergency shutdowns are necessary.

The Schneider G20-25SHT240AC is an efficient, versatile motor circuit breaker that combines reliable motor protection with the added safety of a shunt trip feature. Its compact design, adjustable trip settings, and easy integration make it suitable for a variety of industrial and commercial applications. This breaker offers durable performance and high safety standards, ensuring it meets the demands of modern motor control systems.

In summary, the G20-25SHT240AC provides:

• Robust motor protection with a shunt trip for emergency disconnection
• Adjustable trip settings for flexible application
• A compact, DIN rail-compatible design for efficient panel integration
• Compliance with IEC and UL standards for global use
