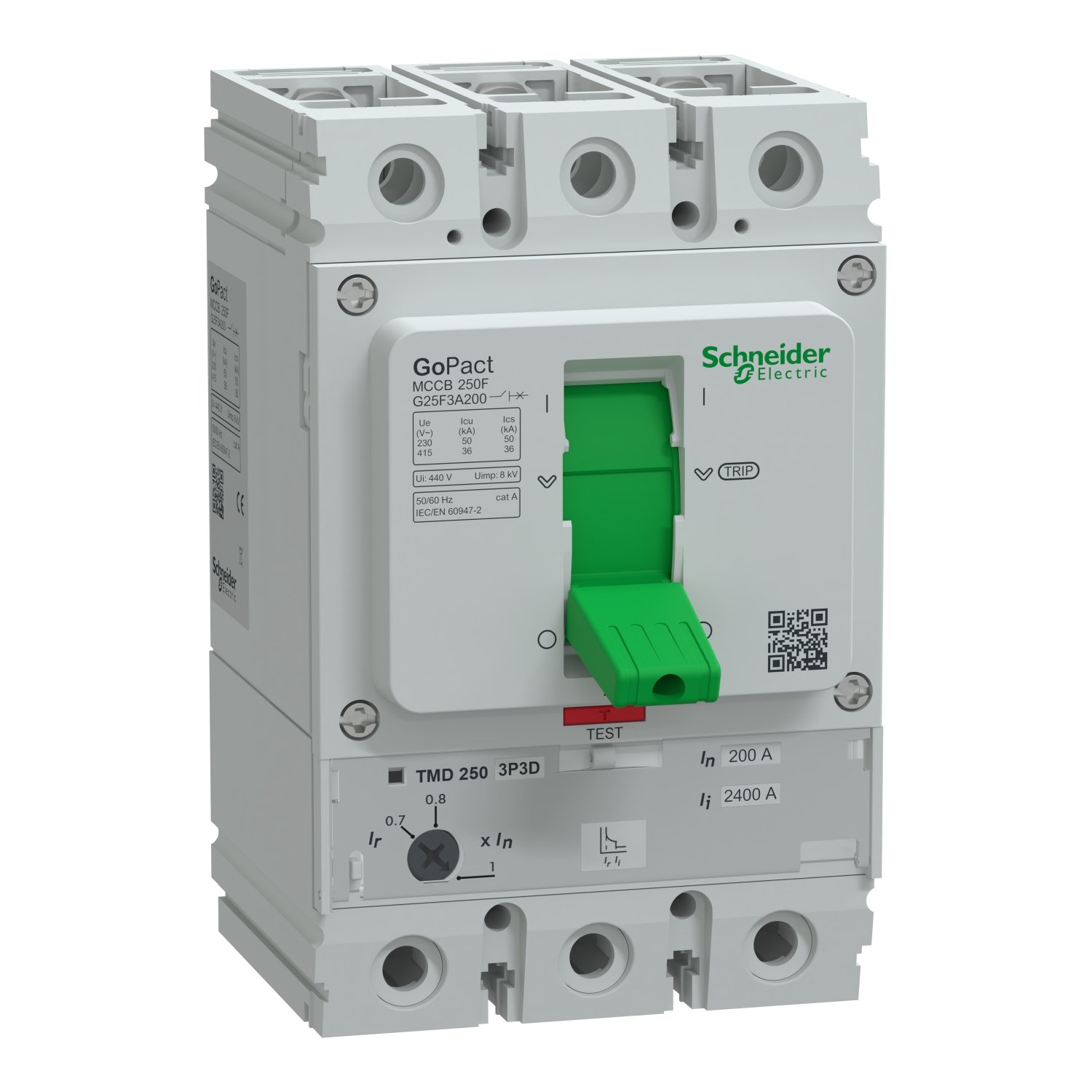

Schneider G25F3A200 | Circuit breaker, GoPact MCCB 250, 3 poles, 36kA at 415VAC, 200A rating, TMD trip unit, adjustable thermal protection

Specifications

The Schneider G25F3A200 is a molded case circuit breaker (MCCB) designed for reliable and efficient electrical protection across various sectors. As part of the GoPact MCCB 250 range from Schneider Electric, it offers solid performance for medium-power applications.

• Product Model: Schneider G25F3A200

• Device Type: Molded Case Circuit Breaker (MCCB)

• Series: GoPact MCCB 250

• Poles: 3 poles (3P)

• Rated Current: 200 Amperes

• Breaking Capacity: 36 kiloamperes (kA) at 415 Volts AC

• Rated Operating Voltage: Up to 415V AC

• Frequency: 50/60 Hz

• Trip Unit Type: TMD (Thermal Magnetic Trip Unit)

• Thermal Protection: Adjustable

• Magnetic Protection: Fixed

• Installation: Panel-mounted or busbar-mounted

• Standards Compliance: In accordance with IEC international standards

Features

1. Dual Protection System
   Combines thermal protection for overload and magnetic protection for short-circuit events, ensuring comprehensive safety.

2. Adjustable Thermal Setting
   Allows the user to fine-tune the thermal trip point according to the electrical load and environment, offering flexibility in various scenarios.

3. High Fault Current Breaking Capability
   With a 36kA breaking capacity, this MCCB is capable of safely interrupting high fault currents, minimizing damage and downtime.

4. Robust Design and Compact Size
   Offers a durable structure with a compact footprint, saving space in distribution panels.

5. Reliable Performance in Harsh Conditions
   Engineered to perform consistently in industrial or high-load environments without frequent maintenance.

6. Simplified Installation
   Designed for easy mounting and wiring, helping reduce labor and time in setup.

7. Trusted Brand Quality
   Manufactured by Schneider Electric, a global leader in power distribution and energy management solutions.

Applications

The Schneider G25F3A200 MCCB is suitable for a wide range of electrical distribution and protection needs, such as:

1. Industrial Applications
   Ideal for protecting heavy-duty equipment, machinery, and motor control systems in industrial plants.

2. Commercial Buildings
   Used in shopping centers, hospitals, hotels, and high-rise offices to ensure reliable protection of electrical circuits.

3. Main and Sub-Distribution Boards
   Can be used as the main breaker or sub-main breaker in both primary and secondary panels.

4. Power Backup and Generator Systems
   Ensures secure connection and protection for circuits powered by backup generators or UPS systems.

5. Educational and Government Facilities
   Maintains uninterrupted and safe power supply for critical institutions such as universities and municipal buildings.

6. Utility and Infrastructure Projects
   Commonly applied in electrical systems for transportation, water treatment plants, and other public infrastructure.
