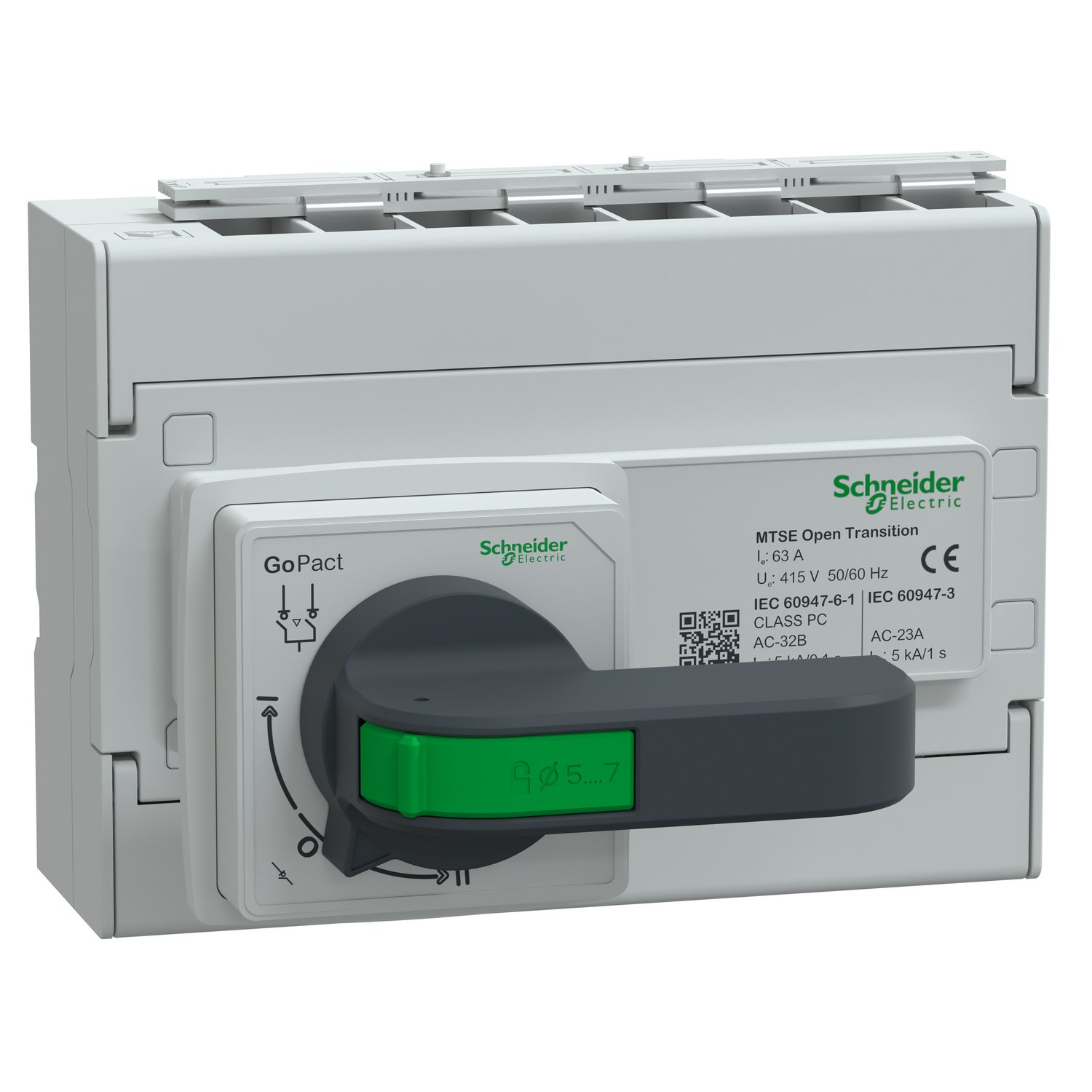

Schneider GM10D4N0634BEE | Manual transfer switch, GoPact MTS 100, 4 poles, 63A, 415VAC 50/60Hz, extended rotary handle, open transition
Schneider GM10D4N0634BEE | Manual transfer switch, GoPact MTS 100, 4 poles, 63A, 415VAC 50/60Hz, extended rotary handle, open transition
Description
Schneider GM10D4N0634BEE | Manual transfer switch, GoPact MTS 100, 4 poles, 63A, 415VAC 50/60Hz, extended rotary handle, open transition
Technical Specifications
-
Product Type: Manual Transfer Switch (MTS)
-
Series: GoPact MTS 100
-
Model Code: GM10D4N0634BEE
-
Number of Poles: 4 poles
-
Rated Current: 63 Amps
-
Rated Voltage: 415VAC
-
Frequency: 50/60 Hz
-
Operation Mode: Manual
-
Transition Type: Open transition (break-before-make)
-
Handle Type: Extended rotary handle (for external operation)
-
Mounting Type: Panel or enclosure mounting
-
Conformity Standards: IEC 60947-6-1
Key Features
-
Manual Control: Allows the operator to manually switch between two power sources, providing complete control and operational awareness.
-
Open Transition: Features a break-before-make mechanism, ensuring that both sources are never connected simultaneously—essential for safe switching operations.
-
Extended Rotary Handle: Provides a safe and ergonomic interface for operation, especially in panel-mounted or enclosed systems.
-
Compact Design: Space-saving footprint suitable for integration in distribution boards, control panels, or switchboards.
-
Robust Construction: Built with high-quality insulating and conductive materials to ensure long-term durability and electrical performance.
-
Safety & Visibility: The handle position clearly indicates the active source, minimizing human error and ensuring clear operational status.
Applications
-
Commercial Buildings: Ideal for small to medium commercial facilities where reliable source switching is essential (e.g., switching between grid power and generators).
-
Industrial Plants: Suitable for applications requiring manual switching for maintenance, emergencies, or scheduled operations.
-
Backup Power Systems: Used in environments where load must be manually transferred between mains and backup power.
-
Remote or Off-Grid Locations: Useful in places where automatic transfer switches are not feasible due to power system design or cost considerations
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | GoPact MTS |
|---|---|
| Product or component type | Manual transfer switch |
| Product name | GoPact MTS 100 |
| Device application | Change source of supply |
| frame size | 100 |
| Suitability for isolation | Yes conforming to IEC 60947-3 |
| transfer switch class | PC |
| poles description | 4P |
| [Ie] rated operational current | AC-21A: 63 A conforming to IEC 60947-3 AC-22A: 63 A conforming to IEC 60947-3 AC-23A: 63 A conforming to IEC 60947-3 AC-31B: 63 A conforming to IEC 60947-6-1 AC-32B: 63 A conforming to IEC 60947-6-1 |
| [Ith] conventional free air thermal current | 63 A at 40 °C |
| [Ithe] conventional enclosed thermal current | 63 A (40 °C) |
| Rated operational power in W | 50 kW AC-23A conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| Breaking capacity | 504 A AC-23A |
| Rated making capacity | 630 A AC-23A |
| Control type | Extended rotary handle |
| Operating mode | Manual |
| Contact position indicator | Yes |
| mechanical interlocking | With mechanical interlocking |
| Locking options description | Padlocking in OFF position 1 to 3 padlocks |
| [Ui] rated insulation voltage | 1000 V AC |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icm] rated short-circuit making capacity | 7.7 kA peak |
| [Icw] rated short-time withstand current | 5 kA during 1 s conforming to IEC 60947-4-3 10 kA during 0.2 s conforming to IEC 60947-4-3 5 kA during 0.1 s conforming to IEC 60947-6-1 |
| Number of contact position | 3 |
| mounting mode | Fixed |
| Mounting support | Backplate DIN rail |
| Connections - terminals | 1 cable with lug wire size 25 mm² |
| Tightening torque | 4.5 N.m |
| Mechanical durability | 20000 cycles |
| Electrical durability | 1500 cycles 415 V |
| Width | 175 mm |
| Height | 132.5 mm |
| Depth | Without handle : 75.6 mm With handle : 164 mm |
| Net weight | 2.5 kg |
| Standards | IEC 60947-3 IEC 60947-6-1 |
| product certifications | IECEE CB Scheme |
| Electrical shock protection class | Class II |
|---|---|
| IP degree of protection | IP54 front face conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -5…55 °C |
| Temperature derating table | 40 °C ( 63 A ) 45 °C ( 63 A ) 50 °C ( 63 A ) 55 °C ( 63 A ) |
| Ambient air temperature for storage | -25…85 °C |
| Operating altitude | 2000 m 100 % of In 3000 m 96 % of In 4000 m 93 % of In 5000 m 89 % of In |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.5 cm |
| Package 1 Width | 17.5 cm |
| Package 1 Length | 24 cm |
| Package 1 Weight | 2.3 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 73.5 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 46 kg |
