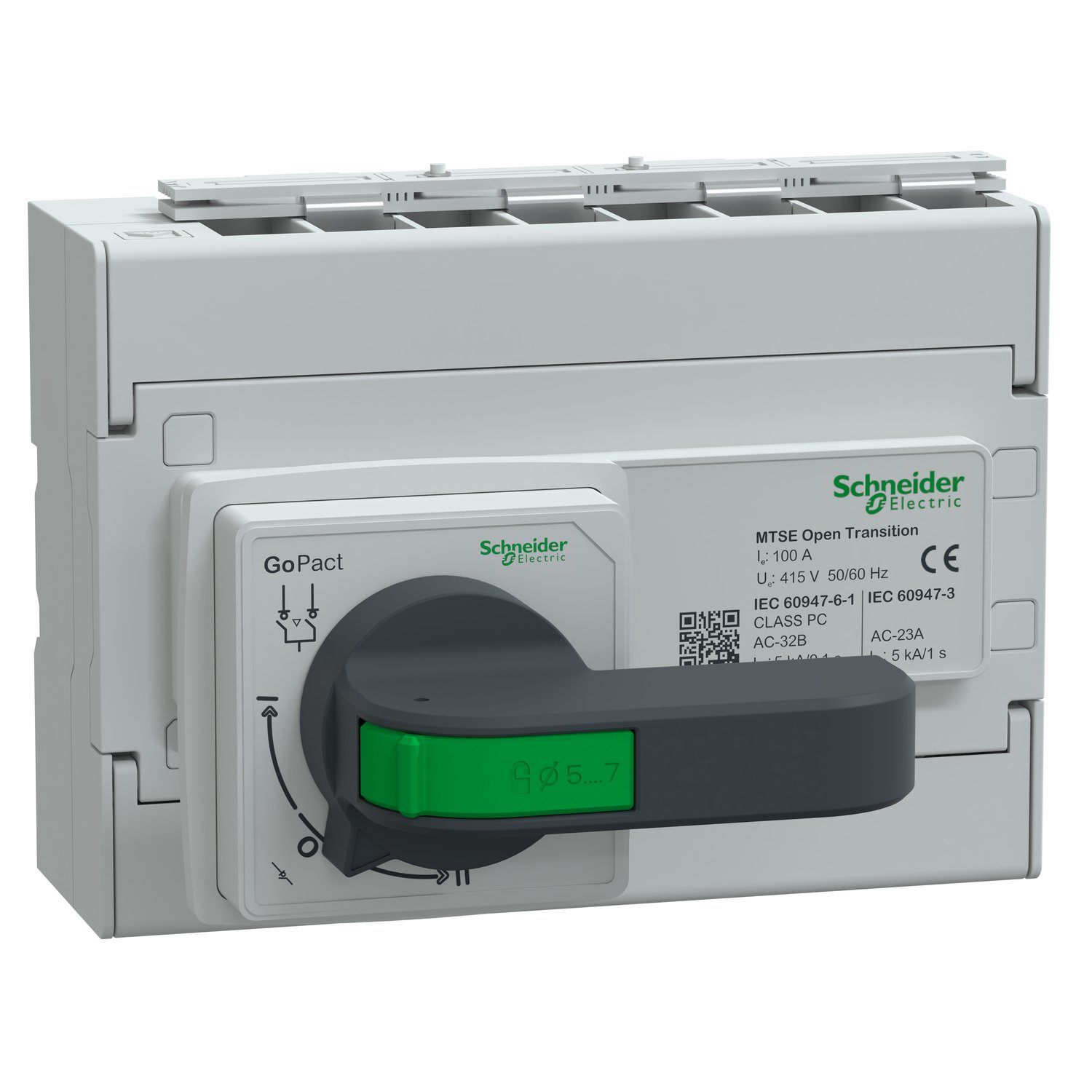

Schneider GM10D4N1004BEE | Manual transfer switch, GoPact MTS 100, 4 poles, 100A, 415VAC 50/60Hz, extended rotary handle, open transition
Schneider GM10D4N1004BEE | Manual transfer switch, GoPact MTS 100, 4 poles, 100A, 415VAC 50/60Hz, extended rotary handle, open transition
Original price was: EGP 1,476,066.00.EGP 1,077,528.00Current price is: EGP 1,077,528.00.
Description
Schneider GM10D4N1004BEE | Manual transfer switch, GoPact MTS 100, 4 poles, 100A, 415VAC 50/60Hz, extended rotary handle, open transition
Technical Specifications
-
Product Type: Manual Transfer Switch (MTS)
-
Series: GoPact MTS 100
-
Model: GM10D4N1004BEE
-
Rated Current: 100 Amps
-
Number of Poles: 4
-
Rated Voltage: 415 VAC
-
Frequency: 50/60 Hz
-
Transition Type: Open transition (break-before-make)
-
Handle Type: Extended rotary handle
-
Mounting: Panel or enclosure mounting
-
Compliant Standards: IEC 60947-6-1
Key Features
-
Manual Operation: Provides complete control for the operator to switch between power sources manually, ideal for load transfer during power outages or maintenance.
-
Open Transition Switching: The switch uses a break-before-make mechanism to ensure that both sources (such as grid and generator) are never connected at the same time, preventing back-feeding and damage.
-
Extended Rotary Handle: Allows for safe operation from the outside of a panel or enclosure, improving accessibility and ease of use.
-
4-Pole Configuration: Suitable for three-phase systems with neutral, offering comprehensive disconnection and reconnection.
-
Clear Position Indication: The rotary handle clearly indicates the current source position (I – 0 – II), improving operational clarity and safety.
-
High Reliability: Engineered with durable materials for dependable performance in industrial and commercial settings.
Applications
-
Commercial Buildings: Ideal for use in offices, malls, schools, and public buildings for switching between mains and generator supply.
-
Industrial Facilities: Useful for plants or factories requiring a manual load transfer for maintenance or in case of power loss.
-
Backup Power Systems: Provides a reliable method of transferring power between utility supply and backup generators in emergency power setups.
-
Remote Sites: Suitable for rural or isolated areas where automatic transfer switches are not necessary or cost-effective.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | GoPact MTS |
|---|---|
| Product or component type | Manual transfer switch |
| Product name | GoPact MTS 100 |
| Device application | Change source of supply |
| frame size | 100 |
| Suitability for isolation | Yes conforming to IEC 60947-3 |
| transfer switch class | PC |
| poles description | 4P |
| [Ie] rated operational current | AC-21A: 100 A conforming to IEC 60947-3 AC-22A: 100 A conforming to IEC 60947-3 AC-23A: 100 A conforming to IEC 60947-3 AC-31B: 100 A conforming to IEC 60947-6-1 AC-32B: 100 A conforming to IEC 60947-6-1 |
| [Ith] conventional free air thermal current | 100 A at 40 °C |
| [Ithe] conventional enclosed thermal current | 100 A (40 °C) |
| Rated operational power in W | 50 kW AC-23A conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| Breaking capacity | 800 A AC-23A |
| Rated making capacity | 1000 A AC-23A |
| Control type | Extended rotary handle |
| Operating mode | Manual |
| Contact position indicator | Yes |
| mechanical interlocking | With mechanical interlocking |
| Locking options description | Padlocking in OFF position 1 to 3 padlocks |
| [Ui] rated insulation voltage | 1000 V AC |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icm] rated short-circuit making capacity | 7.7 kA peak |
| [Icw] rated short-time withstand current | 5 kA during 1 s conforming to IEC 60947-4-3 10 kA during 0.2 s conforming to IEC 60947-4-3 5 kA during 0.1 s conforming to IEC 60947-6-1 |
| Number of contact position | 3 |
| mounting mode | Fixed |
| Mounting support | Backplate DIN rail |
| Connections - terminals | 1 cable with lug wire size 35 mm² |
| Tightening torque | 4.5 N.m |
| Mechanical durability | 20000 cycles |
| Electrical durability | 1500 cycles 415 V |
| Width | 175 mm |
| Height | 132.5 mm |
| Depth | Without handle : 75.6 mm With handle : 164 mm |
| Net weight | 2.5 kg |
| Standards | IEC 60947-3 IEC 60947-6-1 |
| product certifications | IECEE CB Scheme |
| Electrical shock protection class | Class II |
|---|---|
| IP degree of protection | IP54 front face conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -5…55 °C |
| Temperature derating table | 40 °C ( 100 A ) 45 °C ( 100 A ) 50 °C ( 100 A ) 55 °C ( 95 A ) |
| Ambient air temperature for storage | -25…85 °C |
| Operating altitude | 2000 m 100 % of In 3000 m 96 % of In 4000 m 93 % of In 5000 m 89 % of In |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.5 cm |
| Package 1 Width | 17.5 cm |
| Package 1 Length | 24 cm |
| Package 1 Weight | 2.3 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 73.5 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 46 kg |
