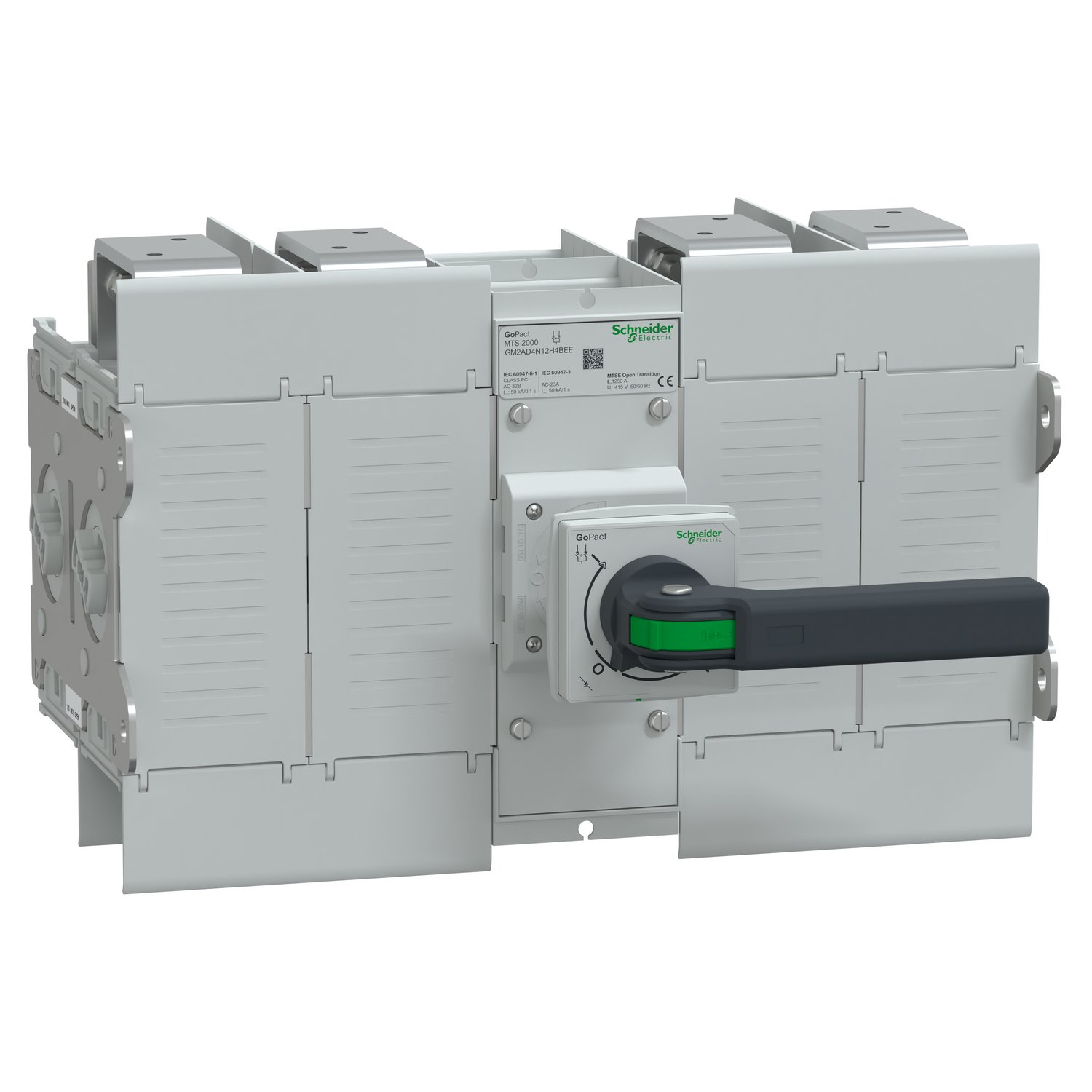

Schneider GM2AD4N12H4BEE | GoMTS 1250 Amps – Extended Rotary Handle – 4 Poles – 415 V
Schneider GM2AD4N12H4BEE | GoMTS 1250 Amps – Extended Rotary Handle – 4 Poles – 415 V
Original price was: EGP 15,460,274.00.EGP 11,286,000.00Current price is: EGP 11,286,000.00.
Description
Schneider GM2AD4N12H4BEE | GoMTS 1250 Amps – Extended Rotary Handle – 4 Poles – 415 V
Key Specifications
-
Product Type: Manual Transfer Switch
-
Series: GoPact MTS
-
Rated Current: 1250 Amps
-
Number of Poles: 4 poles (three-phase + neutral)
-
Rated Voltage: 415 V AC (50/60 Hz)
-
Breaking Capacity: 10 kA
-
Rated Making Capacity: 12.5 kA peak
-
Thermal Current Rating: 1250 A at 40°C
-
Operating Mechanism: Extended rotary handle for manual operation
-
Protection Rating: IP54 (front face when installed within an enclosure)
-
Mounting: Fixed, suitable for backplate installation
-
Weight: Approximately 52 kg
Features
-
Manual Operation: The GM2AD4N12H4BEE is equipped with an extended rotary handle that allows manual switching between two power sources, providing control and flexibility in managing the electrical supply.
-
High Breaking Capacity: With a breaking capacity of 10 kA, it is capable of safely handling fault currents, ensuring protection of the electrical system.
-
Safety Features: This transfer switch includes mechanical interlocking to prevent the simultaneous connection to both power sources. It also offers padlocking options when in the OFF position for enhanced safety during maintenance.
-
Environmental Protection: With an IP54 rating, the switch is protected against dust and splashes of water, making it suitable for use in various environmental conditions.
-
Compact Design: Its compact dimensions allow for easy installation in electrical panels, optimizing space usage and providing a streamlined setup.
Applications
-
Industrial Facilities: Ideal for manufacturing plants and factories where reliable power source switching is essential for maintaining continuous operations.
-
Commercial Buildings: Ensures an uninterrupted power supply in offices, retail spaces, and other commercial environments by enabling quick transitions between power sources.
-
Critical Infrastructure: Suitable for data centers, hospitals, and other facilities that require continuous, reliable power to avoid disruptions in operations.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | GoPact MTS |
|---|---|
| Product or component type | Manual transfer switch |
| Product name | GoPact MTS 2000 |
| Device application | Change source of supply |
| frame size | 2000 |
| Suitability for isolation | Yes conforming to IEC 60947-3 |
| transfer switch class | PC |
| poles description | 4P |
| [Ie] rated operational current | AC-21A: 1250 A conforming to IEC 60947-3 AC-22A: 1250 A conforming to IEC 60947-3 AC-23A: 1250 A conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 1250 A at 40 °C |
| [Ithe] conventional enclosed thermal current | 1250 A (40 °C) |
| Rated operational power in W | 710 kW AC-23A conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| Breaking capacity | 10000 A AC-23A |
| Rated making capacity | 12500 A AC-23A |
| Control type | Extended rotary handle |
| Operating mode | Manual |
| Contact position indicator | Yes |
| mechanical interlocking | With mechanical interlocking |
| Locking options description | Padlocking in OFF position 1 to 3 padlocks |
| [Ui] rated insulation voltage | 1000 V AC |
|---|---|
| [Uimp] rated impulse withstand voltage | 12 kV |
| [Icm] rated short-circuit making capacity | 105 kA peak |
| [Icw] rated short-time withstand current | 50 kA during 1 s conforming to IEC 60947-4-3 85 kA during 0.2 s conforming to IEC 60947-4-3 |
| Number of contact position | 3 |
| mounting mode | Fixed |
| Mounting support | Backplate |
| Connections - terminals | 2 bars |
| Tightening torque | 55 N.m |
| Mechanical durability | 10000 cycles |
| Electrical durability | 500 cycles 415 V |
| Width | 540 mm |
| Height | 339 mm |
| Depth | Without handle : 325 mm With handle : 500 mm |
| Net weight | 52 kg |
| Standards | IEC 60947-3 |
| product certifications | IECEE CB Scheme |
| Electrical shock protection class | Class II |
|---|---|
| IP degree of protection | IP54 front face conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -5…55 °C |
| Temperature derating table | 40 °C ( 1250 A ) 45 °C ( 1250 A ) 50 °C ( 1250 A ) 55 °C ( 1188 A ) |
| Ambient air temperature for storage | -25…85 °C |
| Operating altitude | 2000 m 100 % of In 3000 m 96 % of In 4000 m 93 % of In 5000 m 89 % of In |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 88.4 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 80 cm |
| Package 1 Weight | 88.2 kg |
