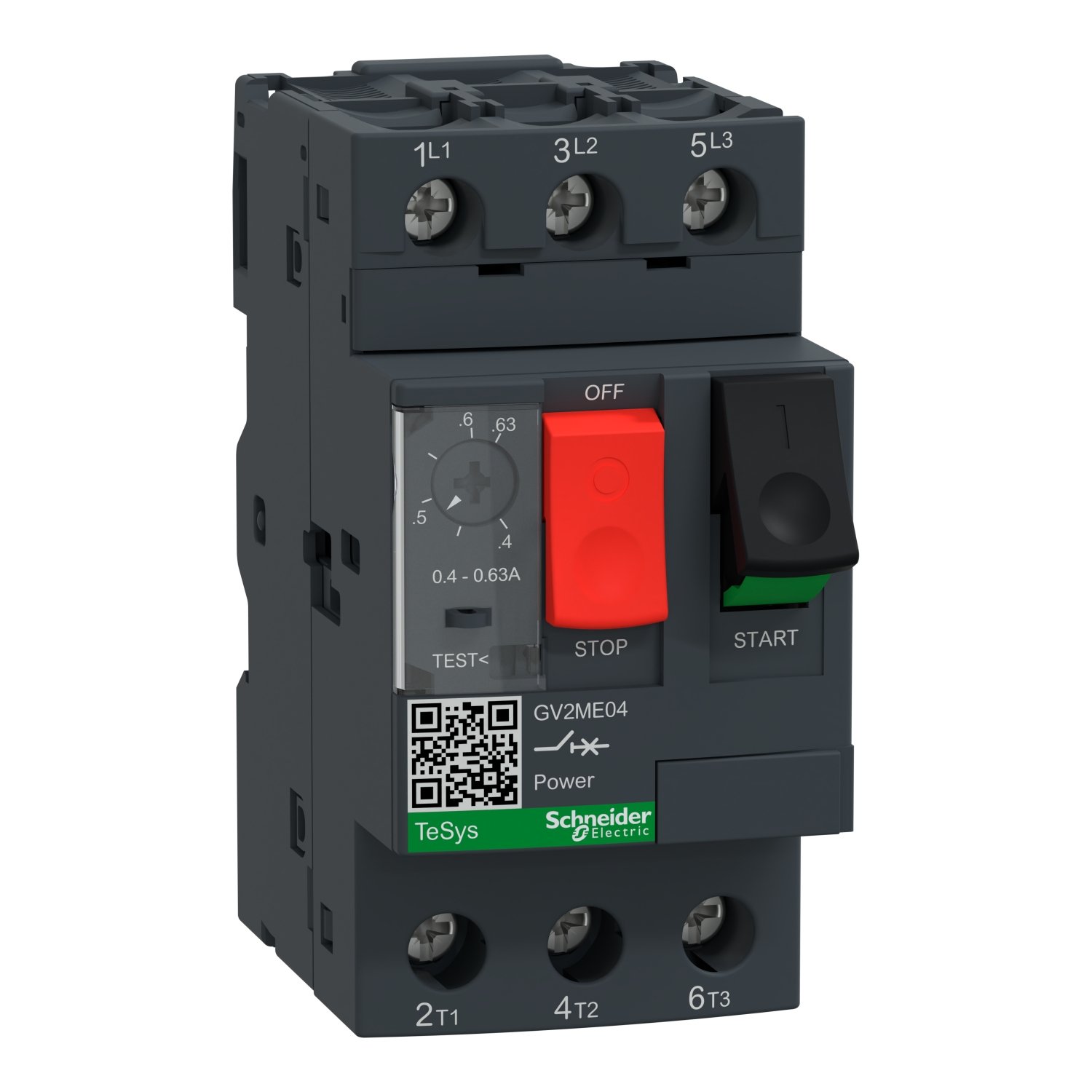

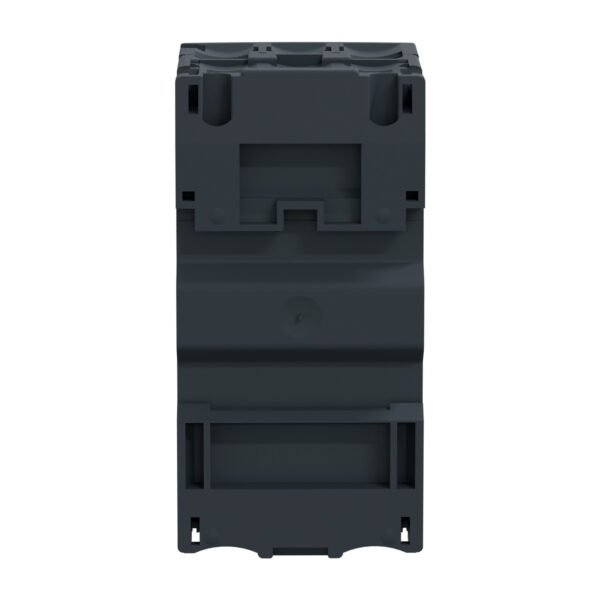

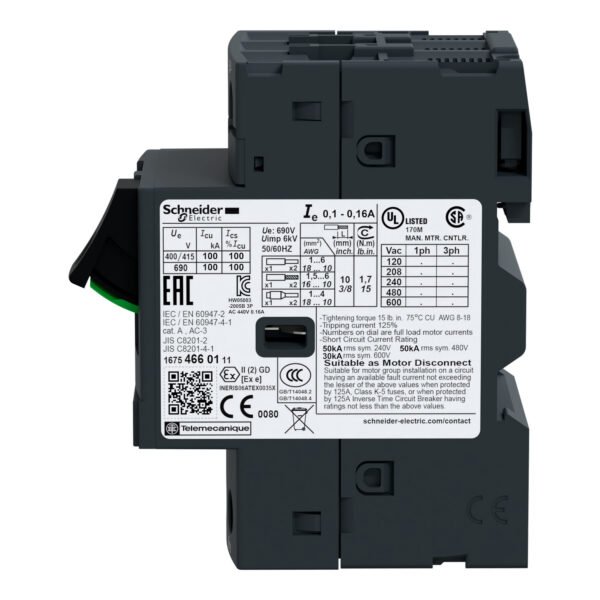

Schneider GV2ME04 | Motor circuit breaker, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminals
Schneider GV2ME04 | Motor circuit breaker, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminals
Original price was: EGP 50,118.00.EGP 27,064.00Current price is: EGP 27,064.00.
Description
Schneider GV2ME04 | Motor circuit breaker, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminals
Technical Specifications
- Model Number: GV2ME04
- Series: TeSys GV2
- Breaker Type: Motor Circuit Breaker (MCB)
- Number of Poles: 3P (Three-Pole)
- Rated Current Range: 0.4 – 0.63A (Adjustable)
- Tripping Mechanism: Thermal Magnetic Protection
- Breaking Capacity: 100 kA at 400V AC
- Voltage Rating: 690V AC (Maximum Operating Voltage)
- Frequency: 50/60 Hz
- Connection Type: Screw Clamp Terminals
- Mounting Type: DIN Rail or Panel Mounting
- Operating Temperature: -20°C to +60°C
- Protection Rating: IP20 (IP65 with enclosure)
- Certifications & Standards: IEC 60947-2, IEC 60947-4-1, UL, CSA
Key Features
-
Reliable Motor Protection
- Provides thermal protection against overloads and magnetic protection against short circuits, ensuring motor safety.
-
Adjustable Current Range (0.4-0.63A)
- Allows precise setting to match motor specifications, preventing unnecessary tripping.
-
High Breaking Capacity (100 kA at 400V AC)
- Ensures safe operation in high-fault conditions, making it suitable for industrial environments.
-
Compact and Space-Saving Design
- Fits easily into motor control panels and switchboards, optimizing space utilization.
-
Manual ON/OFF Control with Trip Indication
- Features a built-in switch for easy manual control and a visual trip indicator for quick fault identification.
-
Screw Clamp Terminals for Secure Connections
- Ensures strong and reliable wiring, reducing the risk of loose connections.
-
Compatible with TeSys Accessories
- Works with auxiliary contacts, shunt trips, and undervoltage releases for enhanced control and monitoring.
-
Meets Global Standards for Safety & Performance
- Certified under IEC 60947-2 and IEC 60947-4-1, ensuring compliance with international regulations.
Applications
- Motor Control and Protection
- Ideal for small three-phase motors in industrial machinery, conveyor belts, pumps, and fans.
- Industrial Automation
- Used in motor control centers (MCCs) and automation systems for efficient motor protection.
- HVAC Systems
- Ensures reliable protection for compressors and ventilation systems.
- Water Pumping Stations
- Provides secure motor protection in irrigation and water treatment plants.
- Manufacturing & Processing Plants
- Used in assembly lines, material handling systems, and automated production equipment.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 TeSys Deca |
| Product or component type | Motor circuit breaker |
| Device short name | GV2ME |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| poles description | 3P |
|---|---|
| network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Motor power kW | 0.12 kW at 400/415 V AC 50/60 Hz 0.18 kW at 400/415 V AC 50/60 Hz 0.37 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| [In] rated current | 0.63 A |
| Thermal protection adjustment range | 0.4…63 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 8 A |
| [Ith] conventional free air thermal current | 0.63 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
| Net weight | 0.26 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| Product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA UKCA |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 216.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.568 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 98.088 kg |
| Warranty | 18 months |
|---|
