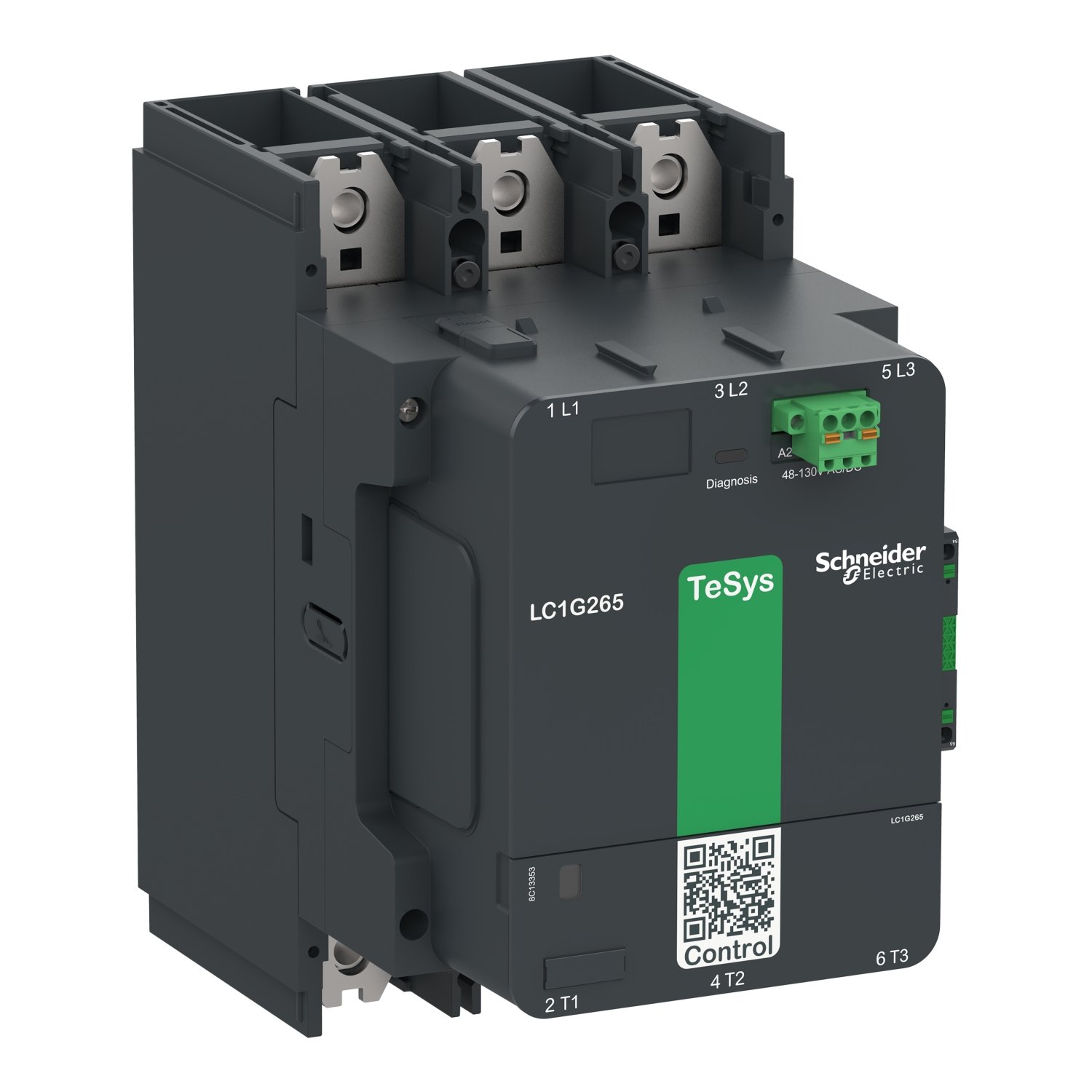

Schneider LC1G265KUEN | High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, standard version, 100…250V wide band AC/DC coil
Schneider LC1G265KUEN | High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, standard version, 100…250V wide band AC/DC coil
Original price was: EGP 910,062.00.EGP 491,434.00Current price is: EGP 491,434.00.
Description
Schneider LC1G265KUEN | High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, standard version, 100…250V wide band AC/DC coil
. Technical Specifications
-
Manufacturer: Schneider Electric
-
Series: TeSys Giga
-
Model: LC1G265KUEN
-
Type: High power contactor
-
Number of Poles: 3 (3 Normally Open contacts)
-
Utilization Category: AC-3 (motor control)
-
Rated Operational Current (Ie):
-
265 A at ≤ 440 V (AC-3 duty)
-
-
Rated Operational Voltage (Ue):
-
Up to 1000 V AC
-
-
Control Voltage (Coil):
-
Wide band: 100–250 V AC/DC, 50/60 Hz
-
-
Coil Consumption:
-
Optimized low inrush and holding power
-
-
Mechanical Durability:
-
Up to 10 million operations
-
-
Electrical Durability (AC-3 at 440 V):
-
Up to 1 million operations
-
-
Mounting Type:
-
Panel or DIN rail (depending on model size)
-
-
Connection Type:
-
Screw clamp terminals (power and control)
-
-
Protection Degree:
-
IP20 (with appropriate terminal covers)
-
-
Standards:
-
IEC 60947-4-1, UL, CSA
-
-
Certifications: CE, EAC, CCC
. Key Features
-
High current handling capacity for large motor and load switching
-
Wide band coil (100–250 V AC/DC) eliminates need for multiple part numbers
-
Compact design optimized for panel space and thermal efficiency
-
Mechanical indicators and optional auxiliary contacts for monitoring
-
Low power coil consumption for energy efficiency
-
Reliable performance in high-cycle industrial environments
. Typical Applications
The LC1G265KUEN is suitable for use in a wide range of industrial sectors, including:
-
Motor control centers for large motors
-
Pumps, compressors, and crushers
-
HVAC systems and chiller plants
-
Conveyors and material handling systems
-
Power distribution and switching panels
-
Renewable energy and battery storage systems
-
Infrastructure and large commercial facilities
. Advantages
-
Universal coil voltage range reduces inventory and simplifies logistics
-
High electrical endurance for frequent switching cycles
-
Flexible mounting options for various panel layouts
-
Integrated TeSys Giga system compatibility with accessories and protection devices
-
Built to international standards, ensuring safety and reliability
-
Optimized for harsh environments and continuous industrial operation
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Range of product | TeSys Giga |
| Product or component type | Contactor |
| Device short name | LC1G |
| contactor application | Power switching Motor control |
| utilisation category | AC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8a AC-8b DC-1 DC-3 DC-5 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 385 A (at <40 °C) at <= 1000 V AC-1 265 A (at <60 °C) at <= 440 V AC-3 |
| [Uc] control circuit voltage | 100...250 V AC 50/60 Hz 100...250 V DC |
| Control circuit voltage limits | Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C) Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 385 A (at 40 °C) |
| Rated breaking capacity | 2380 A at 440 V |
| [Icw] rated short-time withstand current | 2.2 kA - 10 s 1.23 kA - 30 s 0.95 kA - 1 min 0.62 kA - 3 min 0.48 kA - 10 min |
| Associated fuse rating | 315 A aM at <= 440 V for motor 250 A aM at <= 690 V for motor 400 A gG at <= 690 V |
| Average impedance | 0.000144 Ohm |
| [Ui] rated insulation voltage | 1000 V |
| Power dissipation per pole | 20 W AC-1 - Ith 385 A 11 W AC-3 - Ith 265 A |
| Compatibility code | LC1G |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Motor power kW | 75 kW at 230 V AC 50/60 Hz (AC-3e) 132 kW at 400 V AC 50/60 Hz (AC-3e) 132 kW at 415 V AC 50/60 Hz (AC-3e) 160 kW at 440 V AC 50/60 Hz (AC-3e) 160 kW at 500 V AC 50/60 Hz (AC-3e) 200 kW at 690 V AC 50/60 Hz (AC-3e) 160 kW at 1000 V AC 50/60 Hz (AC-3e) 75 kW at 230 V AC 50/60 Hz (AC-3) 132 kW at 400 V AC 50/60 Hz (AC-3) 132 kW at 415 V AC 50/60 Hz (AC-3) 160 kW at 440 V AC 50/60 Hz (AC-3) 160 kW at 500 V AC 50/60 Hz (AC-3) 200 kW at 690 V AC 50/60 Hz (AC-3) 160 kW at 1000 V AC 50/60 Hz (AC-3) 75 kW at 230 V AC 50/60 Hz (AC-4) 132 kW at 400 V AC 50/60 Hz (AC-4) 132 kW at 415 V AC 50/60 Hz (AC-4) 150 kW at 440 V AC 50/60 Hz (AC-4) 160 kW at 500 V AC 50/60 Hz (AC-4) 160 kW at 690 V AC 50/60 Hz (AC-4) 160 kW at 1000 V AC 50/60 Hz (AC-4) |
| Motor power hp | 75 hp at 200/208 V 60 Hz 100 hp at 230/240 V 60 Hz 200 hp at 460/480 V 60 Hz 200 hp at 575/600 V 60 Hz |
| Irms rated making capacity | 3320 A at 440 V |
| Coil technology | Built-in bidirectional peak limiting |
| Mechanical durability | 8 Mcycles |
| inrush power in VA (50/60 Hz, AC) | 700 VA |
| inrush power in W (DC) | 645 W |
| hold-in power consumption in VA (50/60 Hz, AC) | 15.0 VA |
| hold-in power consumption in W (DC) | 9.1 W |
| Operating time | 40...70 ms closing 15...50 ms opening |
| Maximum operating rate | 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4 AC-4 |
| Connections - terminals | Power circuit: bar 2 - busbar cross section: 32 x 10 mm Power circuit: lugs-ring terminals 1 185 mm² Power circuit: bolted connection Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end Control circuit: push-in 2 0.5…1.0 mm² with cable end Control circuit: push-in 0.75…2.5 mm² - cable stiffness: solid stranded without cable end Control circuit: push-in 0.75…2.5 mm² - cable stiffness: flexible with cable end |
| Connection pitch | 45 mm |
| mounting support | Plate |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 |
| product certifications | CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL |
| Tightening torque | 35 N.m |
| height | 225 mm |
| Width | 140 mm |
| Depth | 226 mm |
| Net weight | 7.5 kg |
| IP degree of protection | IP2X front face with shrouds conforming to IEC 60529 IP2X front face with shrouds conforming to VDE 0106 |
|---|---|
| ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Mechanical robustness | Vibrations 5…300 Hz 2 gn contactor open Vibrations 5…300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed |
| Colour | Dark grey |
| Protective treatment | TH |
| Permissible ambient air temperature around the device | -40…70 °C at Uc |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.000 cm |
| Package 1 Width | 31.000 cm |
| Package 1 Length | 31.500 cm |
| Package 1 Weight | 7.465 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 39.850 kg |
