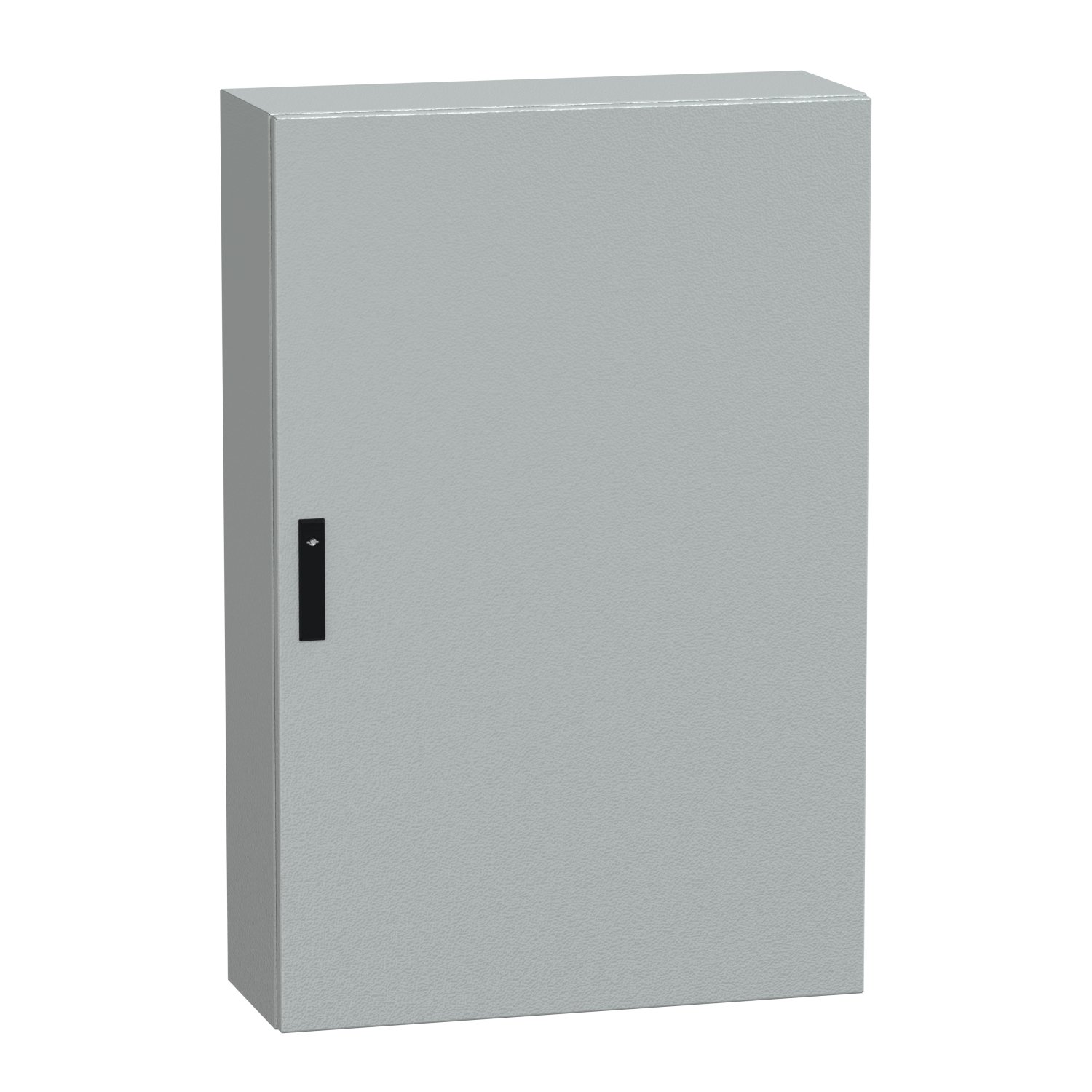

Schneider NSYCRNG128300 | Spacial CRNG plain door w/o mount.plate. H1200xW800xD300 IP66 IK10 RAL7035

Technical Specifications NSYCRNG128300

• Series: Spacial CRNG

• External Dimensions: 1200 mm (height) × 800 mm (width) × 300 mm (depth)

• Door Type: Plain steel door, reversible (opens up to 120°)

• Mounting Plate: Not included (to be ordered separately if needed)

• Locking System: 3-point lock with a 5 mm double-bar key

• Material: Sheet steel

• Surface Finish: Epoxy-polyester powder coated

• Color: Light grey (RAL 7035)

• Ingress Protection: IP66 (dust-tight and protected against powerful water jets)

• Impact Resistance: IK10 (high resistance to mechanical impacts)

• Mounting: Wall-mounted (rear fixing points and bottom cable gland plate included)

• Operating Temperature Range: -25°C to +60°C

• Standards Compliance: IEC 62208, IEC 60529, RoHS, REACH, UL / cUL listed

Key Features:

• High Environmental Protection (IP66): Provides excellent sealing against dust, water, and harsh conditions

• Strong Mechanical Resistance (IK10): Withstands industrial environments and heavy impacts

• No Mounting Plate Included: Allows for customized internal configuration using DIN rails, back plates, or chassis

• Reversible Door: Door opening direction can be changed (left or right) during installation

• Secure Locking System: 3-point locking ensures safety and prevents unauthorized access

• Corrosion-Resistant Finish: Polyester powder coating ensures durability in humid or chemically exposed environments

• Modular Compatibility: Supports a wide range of accessories from the Spacial range including ventilation, lighting, and cable management

• Ideal for Harsh Environments: Engineered for industrial reliability and protection

Typical Applications:

• Low Voltage Electrical Distribution Panels in industrial and commercial buildings

• Automation and Control Panels for PLCs, drives, and process equipment

• Motor Starter Cabinets located near pumps, fans, or conveyor systems

• Solar PV and Renewable Energy Systems for inverter or combiner box enclosures

• IT, Telecom, and CCTV Systems needing high protection in industrial settings

• Public Infrastructure Projects such as transport hubs, utilities, and water treatment plants

• Modernization Projects that require high-quality enclosures matching existing Spacial setups
