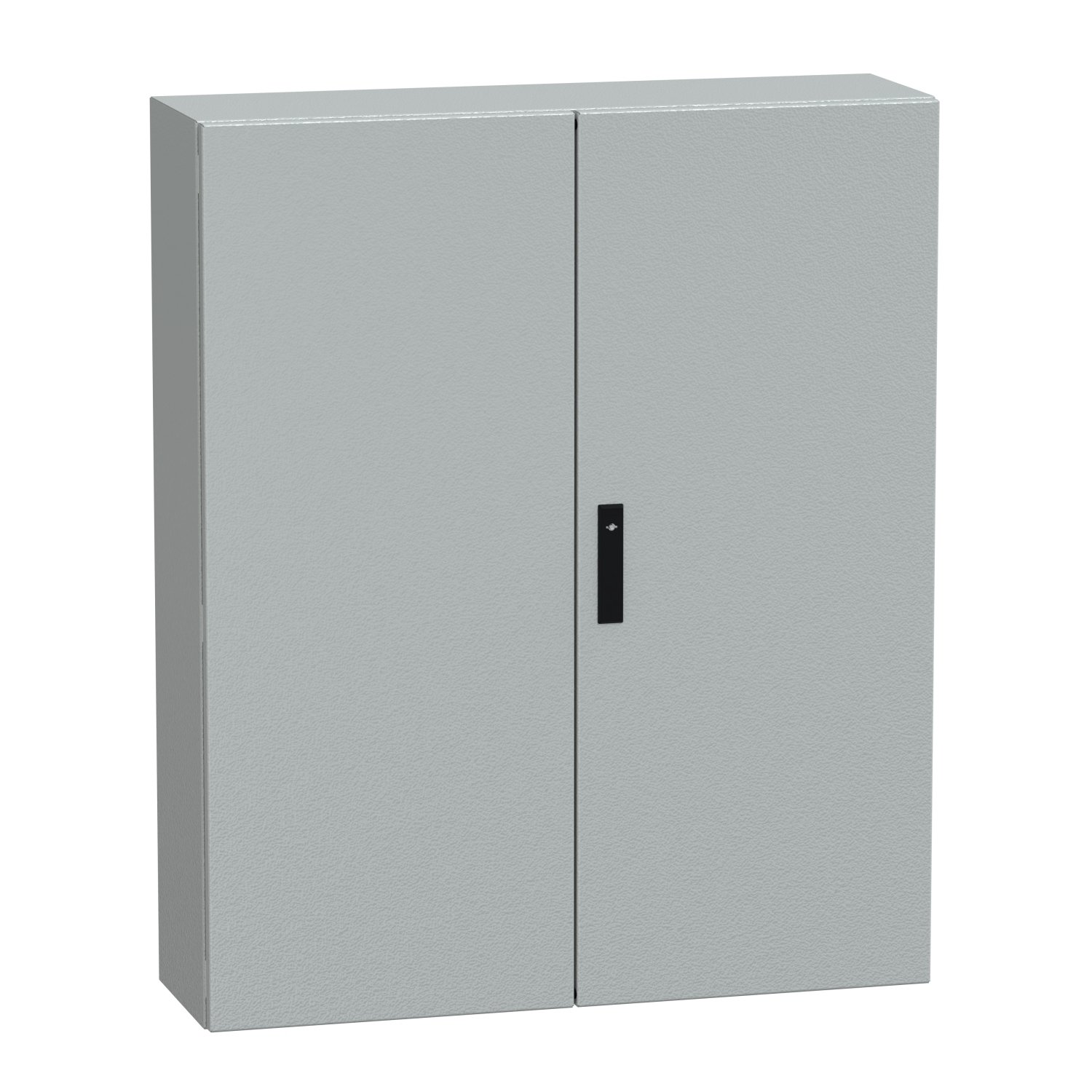

Schneider NSYCRNG1210300D | Spacial CRNG dbl plain door w/o mount.plate. H1200xW1000xD300 IP55 IK10 RAL7035

Technical Specifications SYCRNG1210300D

• Series: Spacial CRNG

• Model: NSYCRNG1210300D

• Enclosure Type: Wall-mounted steel enclosure with double plain doors

• External Dimensions:

  • Height: 1200 mm

  • Width: 1000 mm

  • Depth: 300 mm

• Doors:

  • Double plain steel doors (no windows)

  • Reversible opening

  • 3-point locking system per door

• Mounting Plate: Not included (optional, can be ordered separately)

• Material: Sheet steel

• Surface Finish: Epoxy-polyester powder-coated

• Color: Light grey (RAL 7035)

• Ingress Protection Rating: IP55 (protection against dust and water jets)

• Impact Resistance Rating: IK10 (resistant to mechanical impacts)

• Mounting Type: Wall-mounted or floor-standing (with appropriate accessories)

• Operating Temperature Range: -25°C to +60°C

• Standards Compliance: IEC 62208, IEC 60529, RoHS, REACH, UL / cUL listed

Key FeaturesNSYCRNG1210300D

• Double Door Design: Facilitates wide front access for larger assemblies and easier maintenance

• IP55 Protection: Provides high resistance against dust ingress and low-pressure water jets

• IK10 Impact Resistance: Built to withstand mechanical shocks and harsh environments

• No Mounting Plate: Flexible configuration for various electrical or automation projects

• Secure Locking System: Dual 3-point locking systems ensure strong protection for both doors

• Reversible Door Opening: Customizable left or right opening for site-specific needs

• Corrosion-Resistant Finish: Durable powder coating protects against humidity and chemicals

• Compatible with Spacial Accessories: Easily integrates with Schneider’s internal mounting systems, cable management, fans, lights, etc.

Typical Applications:

• Industrial Electrical Panels: For housing large power distribution and control gear

• Automation Systems: Suitable for enclosures with PLCs, drives, and industrial controllers

• Motor Control Centers (MCCs): For organizing starters, contactors, and overload relays

• Process and Machine Control Panels: Used in factories, food and beverage lines, and water treatment

• Renewable Energy: Ideal for PV inverter or battery control setups

• Public and Infrastructure Projects: Applied in transport systems, utilities, and municipal facilities

• Modern Electrical Rooms: Provides safe, neat, and accessible organization for wiring and devices
