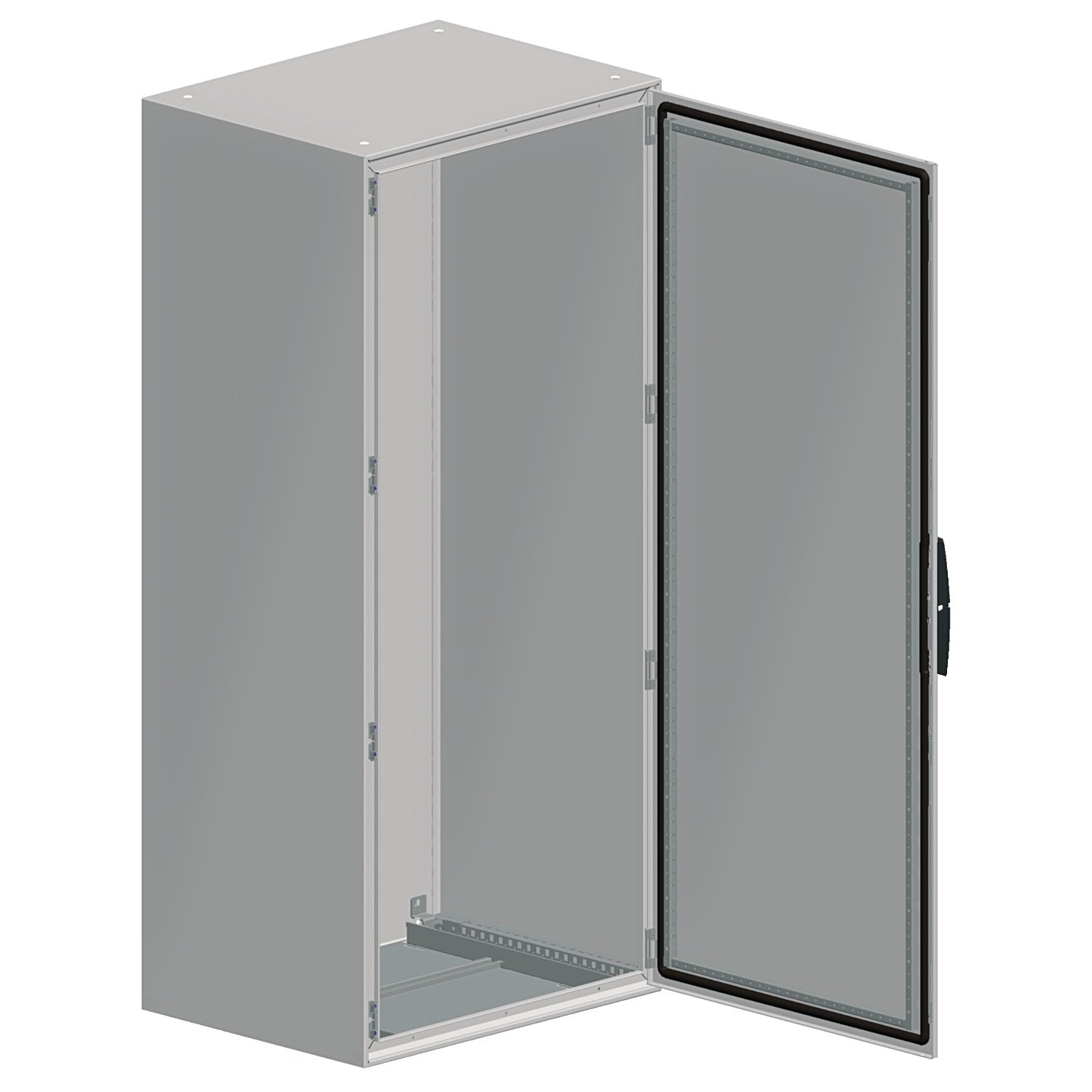

Schneider NSYSM16840 | Spacial SM compact enclosure without mounting plate – 1600x800x400 mm

Technical Specifications

• Product Reference: NSYSM16840

• Product Series: Spacial SM

• Type: Compact floor-standing enclosure

• Material: Galvanized steel

• Surface Finish: Epoxy-polyester powder coating

• Color: Light grey (RAL 7035)

• External Dimensions:

  • Height: 1600 mm

  • Width: 800 mm

  • Depth: 400 mm

• Door Type: Single front door with concealed hinges

• Locking System: 3-point locking mechanism with handle

• Mounting Plate: Not included (optional, available separately)

• Ingress Protection Rating: IP55 (IEC 60529)

• Mechanical Impact Resistance: IK10 (IEC 62262)

• Cable Access: Bottom removable gland plate

• Certifications and Standards: IEC 62208, IEC 60529, IEC 62262

Key Features

• Large internal space accommodates multiple components such as circuit breakers, control gear, and PLC systems.

• IP55 rating provides reliable protection against dust ingress and water jets, ensuring equipment safety in industrial environments.

• IK10 mechanical strength ensures high resistance to physical impacts, enhancing protection and longevity.

• No mounting plate included, offering the freedom to implement custom setups or add Schneider Electric’s optional accessories as required.

• 3-point locking system with ergonomic handle improves security and provides a firm door seal.

• Removable gland plate simplifies cable entry and allows easier integration with external systems.

• Durable construction with corrosion-resistant coated steel ensures long-term reliability in challenging conditions.

Applications

The NSYSM16840 is suitable for a wide range of industrial and infrastructure applications, including:

• Electrical distribution boards

• Industrial automation panels

• Machine and process control cabinets

• HVAC and building management systems

• Data and telecom infrastructure

• Renewable energy control panels

• Utility and substation enclosures
