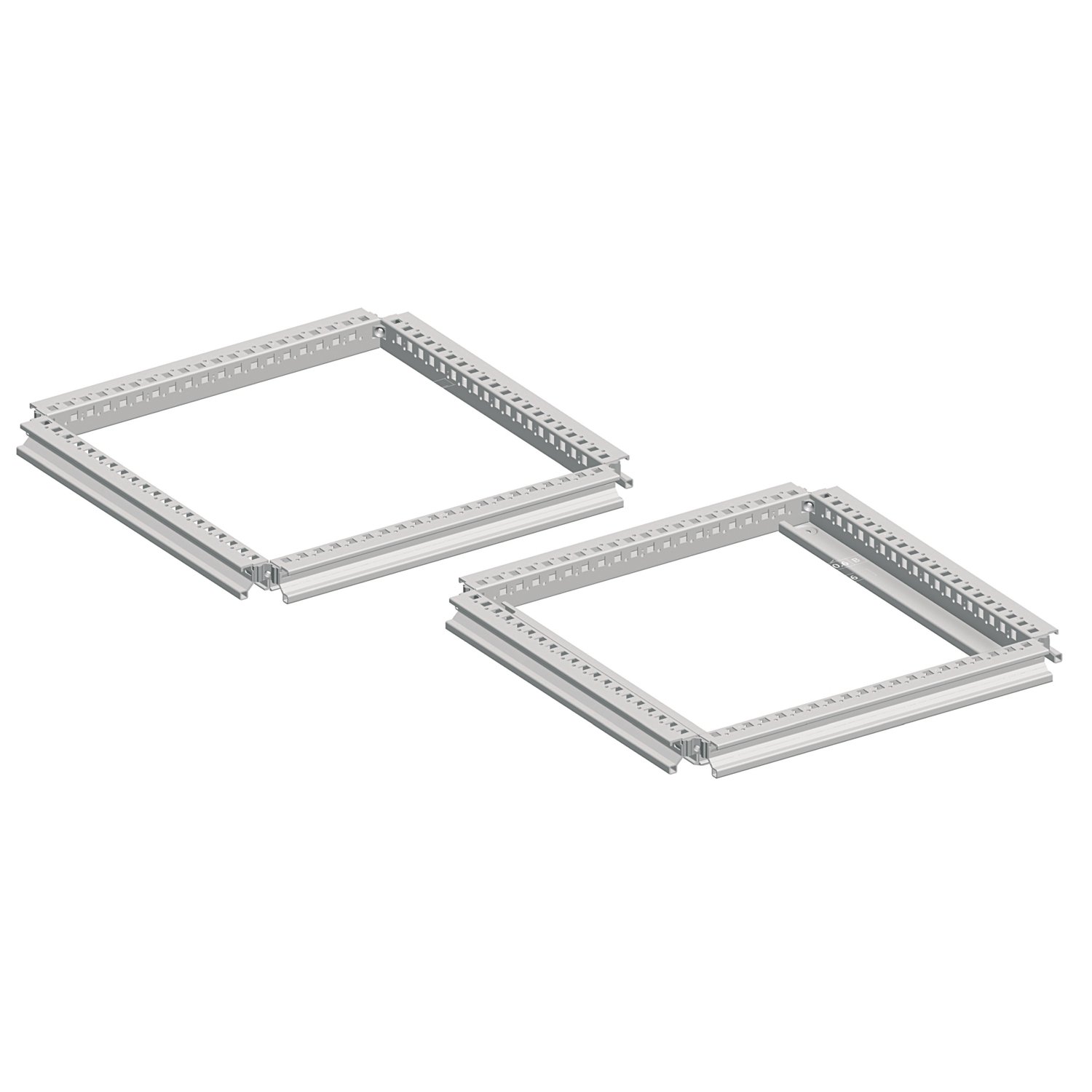

Schneider NSYSFC86 | Spacial SF bottom and top frame – 800×600 mm

Technical Specifications NSYSFC86

• Product Name: Schneider Electric NSYSFC86

• Product Type: Bottom and Top Frame

• Range: Spacial SF

• Compatibility: Suitable for Spacial SF enclosures

• Dimensions:

  • Width: 800 mm

  • Depth: 600 mm

• Material: Steel

• Surface Finish: Epoxy-polyester powder coating

• Color: RAL 7035 (light grey)

• Mounting: To be fixed at the top and bottom of the enclosure structure

• Standards Compliance: IEC 62208

• Weight: Optimized for structural rigidity without excessive weight

Key Features

• Structural Reinforcement
  Provides solid and stable support for the enclosure by reinforcing both top and bottom sections, ensuring durability under mechanical and environmental stress.

• Precision Fit for Spacial SF Enclosures
  Designed specifically for 800×600 mm enclosures, guaranteeing perfect alignment and compatibility without modification.

• Corrosion-Resistant Finish
  High-quality epoxy-polyester coating ensures resistance to corrosion, chemicals, and harsh environmental conditions, ideal for industrial settings.

• Easy Installation
  Simplified mounting process with pre-engineered slots and guides for quick, secure assembly.

• Enhanced Load Bearing
  Supports additional components such as gland plates, cable entries, or internal mounting accessories with improved mechanical strength.

• Professional Aesthetic
  RAL 7035 grey finish aligns with modern industrial design standards and matches other enclosure components seamlessly.

Applications

• Electrical Control Panels
  Forms the structural base and top of SF enclosures housing low- and medium-voltage switchgear, PLCs, and automation systems.

• Industrial Automation Systems
  Provides robust framework for enclosures used in manufacturing lines, processing plants, and machine control systems.

• Power Distribution Enclosures
  Used in cabinets distributing power within factories, commercial buildings, or renewable energy plants.

• Data & Communication Cabinets
  Forms part of a sturdy enclosure for networking, telecom, and control systems in IT and utility applications.

• Infrastructure & Transportation
  Suitable for enclosures used in public infrastructure projects such as rail, airports, water treatment, and more.

• OEM Panel Builder Projects
  Ideal for integrators and panel builders who need a strong, standard-compliant foundation for custom electrical assemblies.
