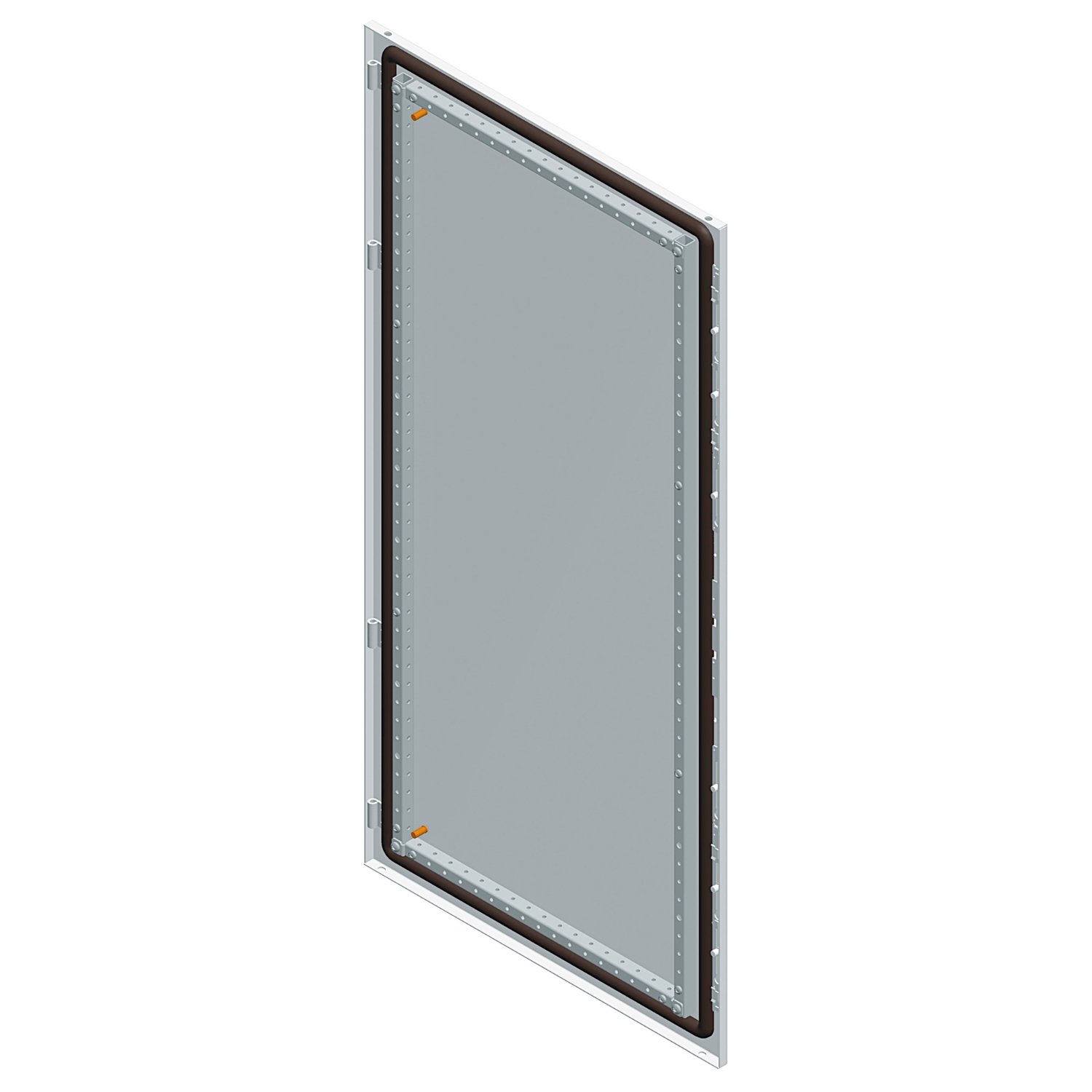

Schneider NSYSFD206 | Spacial SF plain door – 2000×600 mm

Technical Specifications NSYSFD206

• Product Code: NSYSFD206

• Product Type: Plain front door for floor-standing enclosure

• Compatible Series: Schneider Electric Spacial SF

• Installation Position: Front

• Door Type: Solid (non-glazed), single leaf

• Dimensions:

  • Height: 2000 mm

  • Width: 600 mm

• Material: Sheet steel

• Surface Finish: Epoxy-polyester powder coated

• Color: Light grey (RAL 7035)

• Locking Mechanism: Equipped with a standard lock system (typically 3-point locking)

• Mounting Method: Hinged on either side, reversible during installation

• Standards Compliance: Conforms to IEC 62208 and Schneider’s quality requirements

Key Features

1. Robust Steel Construction
The door is made from high-quality sheet steel, providing mechanical strength and resistance to impact, corrosion, and harsh environments. The powder-coated surface ensures long-term durability.

2. Full-Height Coverage
With dimensions of 2000×600 mm, the door provides complete coverage for one side of a floor-standing enclosure, protecting internal components from external elements.

3. Reversible Hinges
The door can be hinged on either the left or right side, offering flexibility in enclosure layout and easier adaptation to installation site constraints.

4. Secure Locking
Typically equipped with a standard 3-point locking system, the door ensures the contents are securely enclosed and protected against unauthorized access or accidental opening.

5. Seamless Aesthetic Integration
The light grey (RAL 7035) finish matches other Spacial SF enclosure components, creating a uniform and professional appearance in industrial settings.

6. IP and IK Rating Support
When correctly installed with compatible components and gaskets, the door contributes to maintaining the enclosure’s IP55 protection against dust and water, and an IK10 impact resistance rating.

Applications

Electrical Switchboards and Control Panels
Provides a secure and accessible front closure for enclosures housing circuit breakers, controllers, relays, and other low-voltage devices.

Automation Cabinets
Used in factory automation systems to protect PLCs, HMIs, and various automation modules within Spacial SF enclosures.

Power Distribution Systems
Serves as a front interface for power distribution cabinets in commercial and industrial facilities.

Data and Communication Infrastructure
Protects network switches, cabling, and IT hardware in structured cabling cabinets deployed in technical rooms or industrial environments.

OEM and System Integrator Solutions
Ideal for custom enclosure designs
