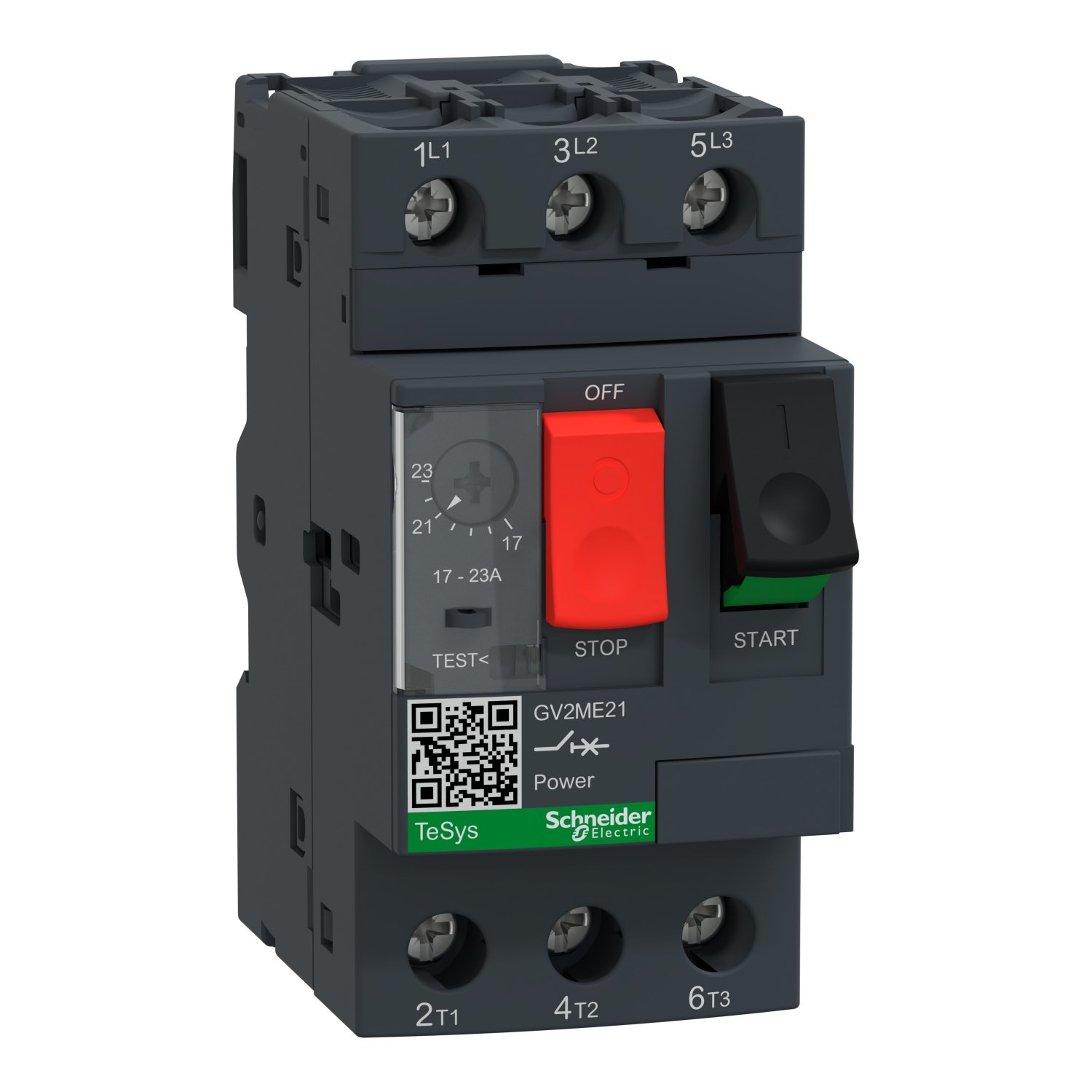

Schneider GV2ME21 | Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals
Schneider GV2ME21 | Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals
Original price was: EGP 57,057.00.EGP 30,811.00Current price is: EGP 30,811.00.
Description
Schneider GV2ME21 | Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals
The Schneider GV2ME21 is a reliable and compact motor circuit breaker from the TeSys GV2 series, designed to provide effective protection for motors rated between 17 to 23 Amperes. It offers dual protection—thermal and magnetic—making it a versatile solution for industrial and commercial motor control systems.
Key Features:
-
Product Reference: GV2ME21
-
Brand: Schneider Electric
-
Series: TeSys GV2
-
Device Type: Motor Circuit Breaker
-
Protection Type: Thermal-magnetic
-
Poles: 3P (Three poles)
-
Adjustable Current Range: 17 to 23 A
-
Terminals: Screw clamp terminals
-
Manual Control: ON/OFF push-buttons with trip indicator
Main Applications:
-
Motor protection in industrial automation
-
Suitable for pumps, conveyors, fans, compressors, and machine tools
-
Used in motor control panels, distribution boards, and HVAC systems
Key Advantages:
-
Thermal Overload Protection: Prevents damage from prolonged overcurrent
-
Magnetic Short-Circuit Protection: Instant trip in case of fault
-
Compact and Durable: Saves space and ensures longevity
-
Front-Facing Controls: Easy start/stop and reset
-
Precise Settings: Adjustable dial to match motor requirements
-
High Reliability: Built to perform under demanding conditions
Technical Specifications:
-
Rated Current Range: 17 – 23 A
-
Rated Insulation Voltage (Ui): 690V
-
Rated Operational Voltage (Ue): Up to 690V AC
-
Frequency: 50/60 Hz
-
Breaking Capacity: High, ideal for industrial use
-
Mounting Options: DIN rail or screw mount
-
Standards: IEC 60947-2 & IEC 60947-4-1 compliant
Common Use Cases:
-
Industrial motor starters
-
Electrical panels for HVAC equipment
-
Control cabinets in manufacturing lines
-
Automated machinery and production systems
User Benefits:
-
Integrated motor protection in a single unit
-
Fast installation and wiring with screw terminals
-
Expandable with accessories like auxiliary contacts, under-voltage or shunt trips
-
Visual trip indication simplifies troubleshooting
-
Cost-effective solution with robust performance
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 TeSys Deca |
| Product or component type | Motor circuit breaker |
| Device short name | GV2ME |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Motor power kW | 9 kW at 400/415 V AC 50/60 Hz 11 kW at 500 V AC 50/60 Hz 18.5 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| control type | Push-button |
| [In] rated current | 23 A |
| Thermal protection adjustment range | 17…23 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 327 A |
| [Ith] conventional free air thermal current | 23 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 78.5 mm |
| Net weight | 0.26 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.300 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 287.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.228 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 125.988 kg |
| Warranty | 18 months |
|---|
