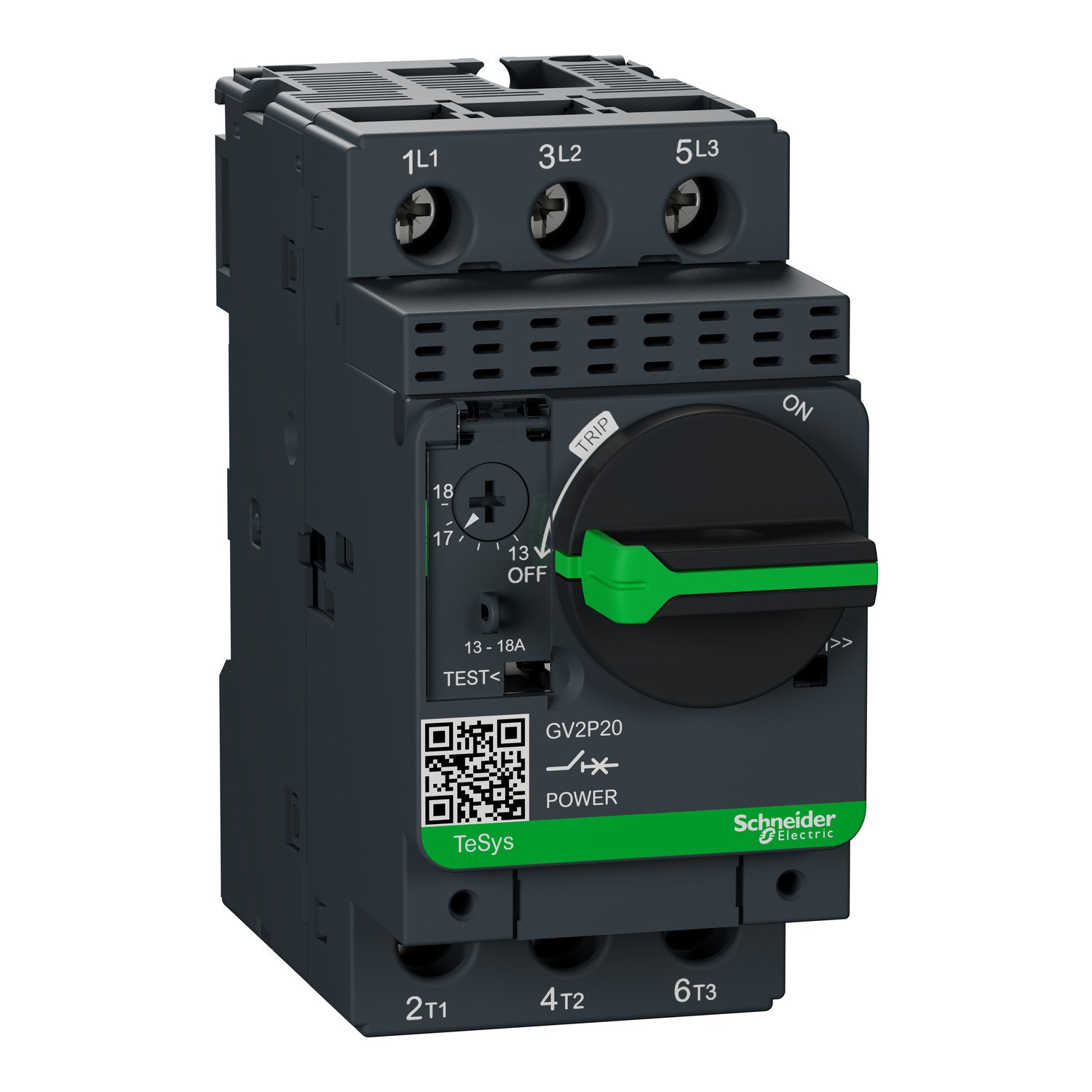

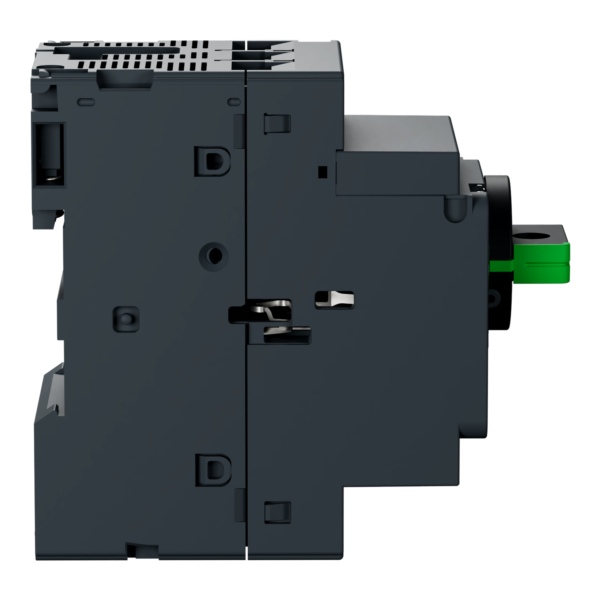

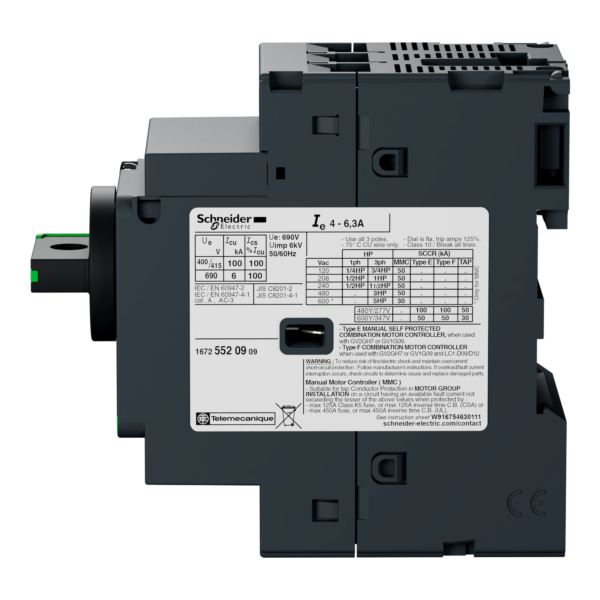

Schneider GV2P20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals
Schneider GV2P20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals
Original price was: EGP 88,493.00.EGP 47,786.00Current price is: EGP 47,786.00.
Description
Schneider GV2P20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals
Technical Specifications
-
Model: Schneider GV2P20
-
Product Series: TeSys GV2
-
Number of Poles: 3P (Three-Pole)
-
Current Rating: Adjustable 13-18 A
-
Protection Type: Thermal-magnetic for overload and short-circuit protection
-
Trip Mechanism: Manual reset with push-button operation
-
Terminals: Screw clamp terminals for secure wiring connections
-

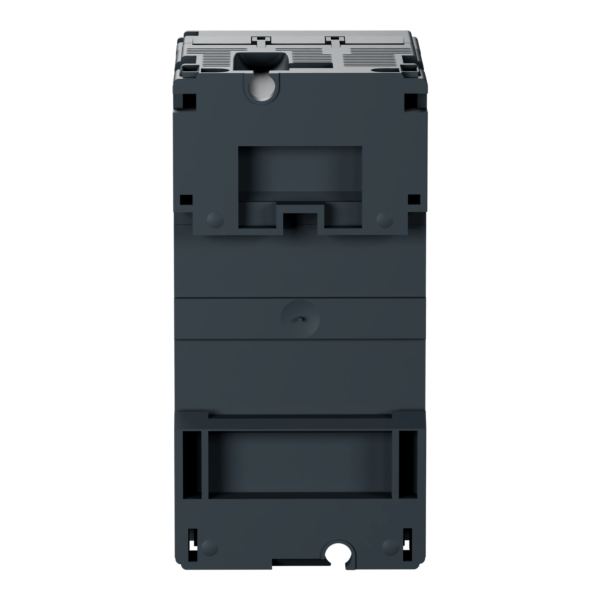

Mounting: DIN rail or panel mounting
-
Conformity: Complies with IEC 60947-2 & IEC 60947-4-1 standards
Key Features
1. Dual Protection Mechanism
The GV2P20 features a thermal-magnetic trip unit, offering:
-
Thermal protection for overloads, preventing motor overheating.
-
Magnetic protection for short circuits, ensuring fast disconnection in case of faults.
2. Wide Current Adjustment Range
With an adjustable setting of 13-18 A, it provides flexibility to protect motors with varying current requirements.
3. Robust and Compact Design
-
Designed for space-saving installations in electrical panels.
-
Built for harsh industrial environments with high mechanical endurance.
4. Secure and Reliable Connections
Equipped with screw clamp terminals, ensuring firm and vibration-resistant wiring connections for long-term stability.
5. Easy Installation and Operation
-
DIN rail or panel mounting for flexible installation.
-
Simple manual reset for quick operation and maintenance.
Applications
-
Industrial Automation: Protects motors in conveyors, pumps, compressors, and machine tools.
-
Manufacturing Plants: Ensures safe operation of production line machinery.
-
HVAC Systems: Used in large fans, compressors, and air handling units.
-
Water Treatment Plants: Protects motors in pumps, filtration, and wastewater systems.
-
Agricultural Equipment: Provides motor protection in irrigation systems and automated feeding systems.
-
Commercial Buildings: Ensures reliable operation of elevators, escalators, and ventilation systems
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 TeSys Deca |
| Product or component type | Motor circuit breaker |
| Device short name | GV2P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 2 x M4 screws) |
| Motor power kW | 7.5 kW at 400/415 V AC 50/60 Hz 9 kW at 500 V AC 50/60 Hz 15 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Rotary handle |
| [In] rated current | 18 A |
| Thermal protection adjustment range | 13…18 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 223 A |
| [Ith] conventional free air thermal current | 18 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| Product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.800 cm |
| Package 1 Width | 9.300 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 334.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.982 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 118.272 kg |
| Warranty | 18 months |
|---|
