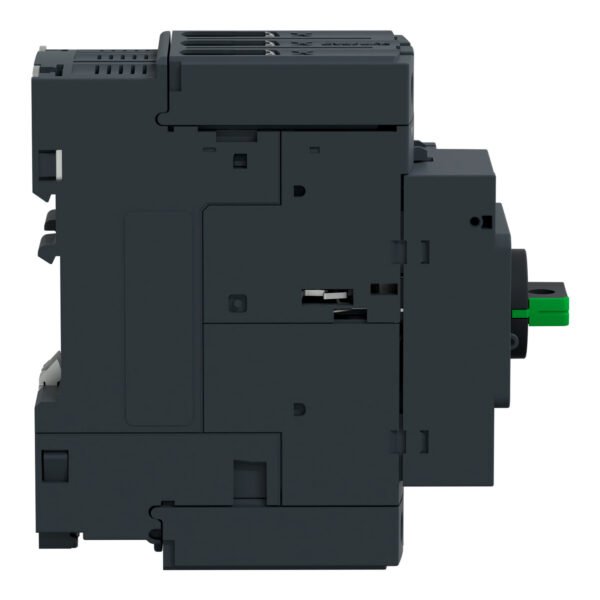

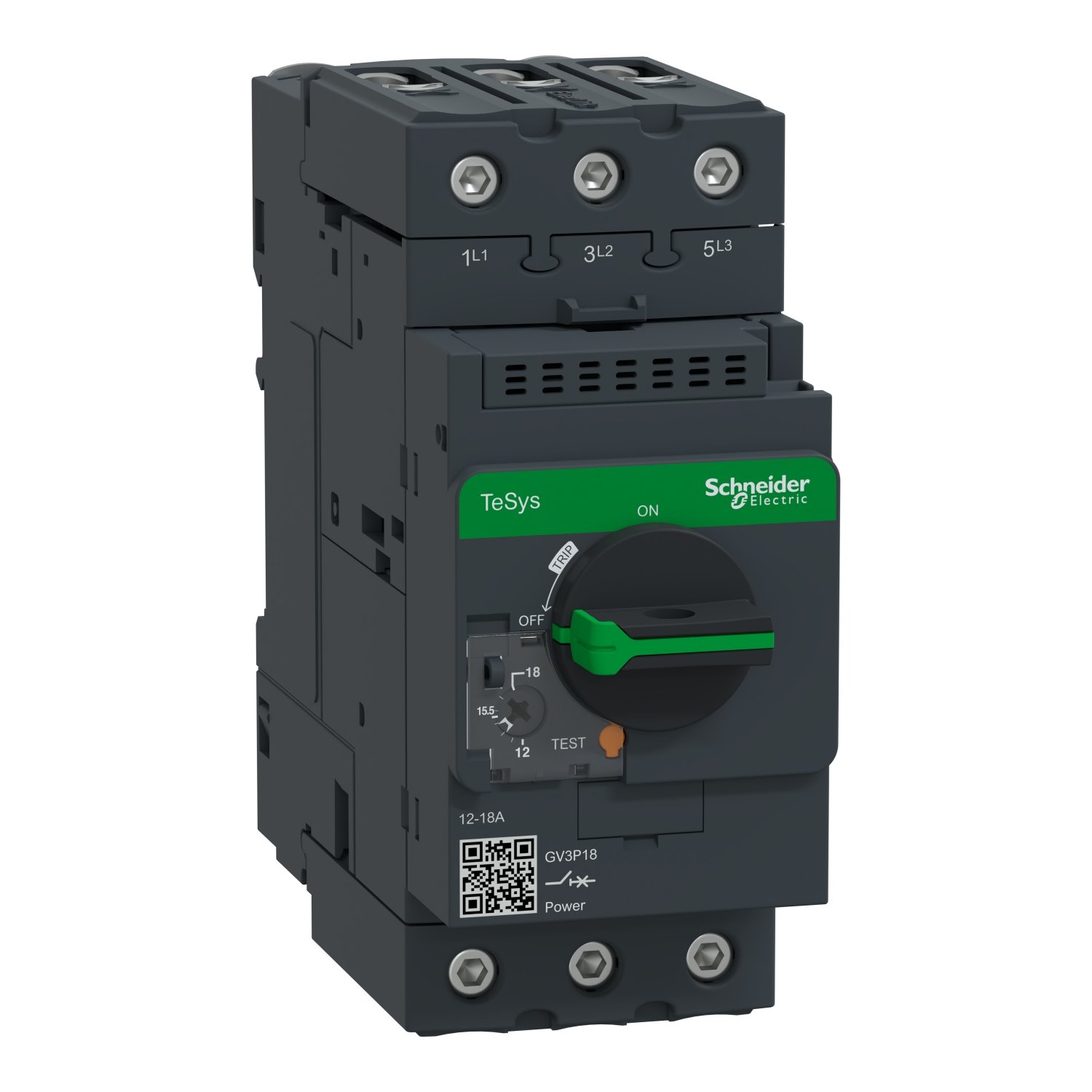

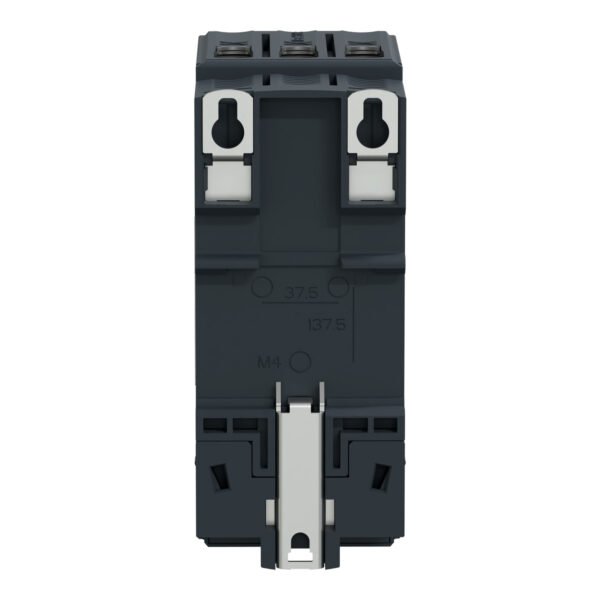

Schneider GV3P18 | Motor circuit breaker, TeSys GV3, 3P, 12-18 A, thermal magnetic, EverLink terminals

Specifications:

• Model: Schneider GV3P18
• Series: TeSys GV3
• Number of Poles: 3P (Three Poles)
• Current Range: 12-18A
• Protection Type: Thermal-Magnetic
• Connection Type: EverLink Terminals
• Voltage Rating: Up to 690V AC
• Protection Rating: IP20
• Breaking Capacity: 100 kA at 400V AC
• Operating Temperature: -20°C to +55°C

Features:

Reliable Motor Protection: Provides thermal protection against overload and magnetic protection against short circuits.
Compact Design: Ideal for installation in control panels while saving space.
EverLink Technology: Ensures secure and stable wiring connections, reducing the need for re-tightening.
Easy Installation & Operation: Can be mounted on DIN rails or fixed using screws.
Compatible with Automation & Control Systems: Can be integrated with TeSys accessories and motor control devices.

Applications:

Protecting electric motors from overloads and short circuits.
Used in industrial applications such as pumps, fans, and compressors.
Suitable for electrical control panels and industrial machinery.
Ensures effective protection in commercial and infrastructure sectors.
