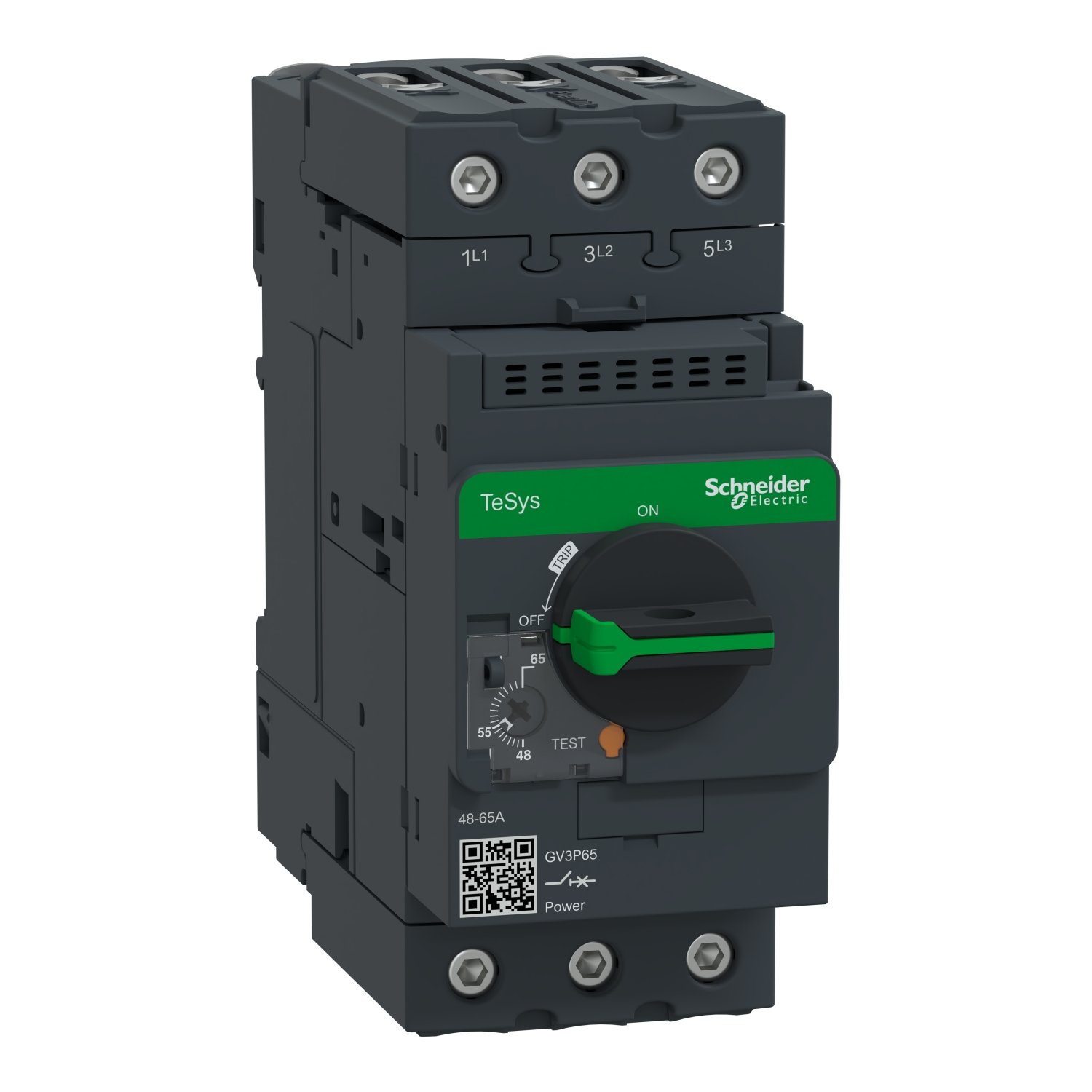

Schneider GV3P65 | Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals
Schneider GV3P65 | Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals
Original price was: EGP 206,796.00.EGP 11,167.00Current price is: EGP 11,167.00.
Description
Schneider GV3P65 | Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals
Key Specifications:
- Current Range: 48A to 65A, suitable for medium to large motors.
- Voltage Rating: Up to 690V AC.
- Protection Type: Thermal-magnetic protection, which combines both thermal overload and magnetic short circuit protection.
- Adjustable Thermal Setting: Allows fine-tuning of the overload protection to suit different motor types and sizes.
- Rated Power: Handles up to 75 kW at 400V for three-phase motors.
- Enclosure Protection: IP20, ensuring basic protection against contact with internal components and dust ingress.
Key Features:
- Thermal-Magnetic Protection: Provides comprehensive protection for motors against both overloads (due to excessive current) and short circuits (due to faults in the system).
- Manual Isolation and Control: The GV3P65 allows for manual switching and disconnection of the motor from the electrical supply, enhancing safety during maintenance.
- Compact and Robust Design: Its space-efficient, durable design is suited for various industrial environments, even in harsh conditions.
- User-Friendly Operation: Easy-to-use rotary knob for simple setting adjustments and reliable operation.
- High Durability: Rated for long-term performance with a high mechanical endurance, ideal for continuous industrial applications.
Applications:
- Industrial Machinery: Commonly used in controlling and protecting motors for machines that require regular and reliable operation.
- Pumps: Ideal for pump systems that require protection against electrical faults and overload conditions.
- Conveyors and Automation Systems: Provides motor protection in automated material handling systems.
- HVAC Systems: Suitable for motor-driven HVAC equipment where motor protection and control are critical.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV3 TeSys Deca |
| Product or component type | Motor circuit breaker |
| Device short name | GV3P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws) |
| Motor power kW | 30 kW at 400/415 V AC 50/60 Hz 45 kW at 500 V AC 50/60 Hz 55 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Rotary handle |
| [In] rated current | 65 A |
| Thermal protection adjustment range | 48…65 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 910 A |
| [Ith] conventional free air thermal current | 65 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 50000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 5 N.m - on screw clamp terminal |
| Width | 55 mm |
| Height | 132 mm |
| Depth | 136 mm |
| Net weight | 0.96 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
|---|---|
| Product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV ABS DNV-GL UKCA |
| IK degree of protection | IK09 enclosure |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 15 Gn for 11 ms contactor open Shocks: 30 Gn for 11 ms contactor closed Vibrations: 4 Gn, 5...300 Hz |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.000 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 14.600 cm |
| Package 1 Weight | 1.016 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 134.920 kg |
| Warranty | 18 months |
|---|
