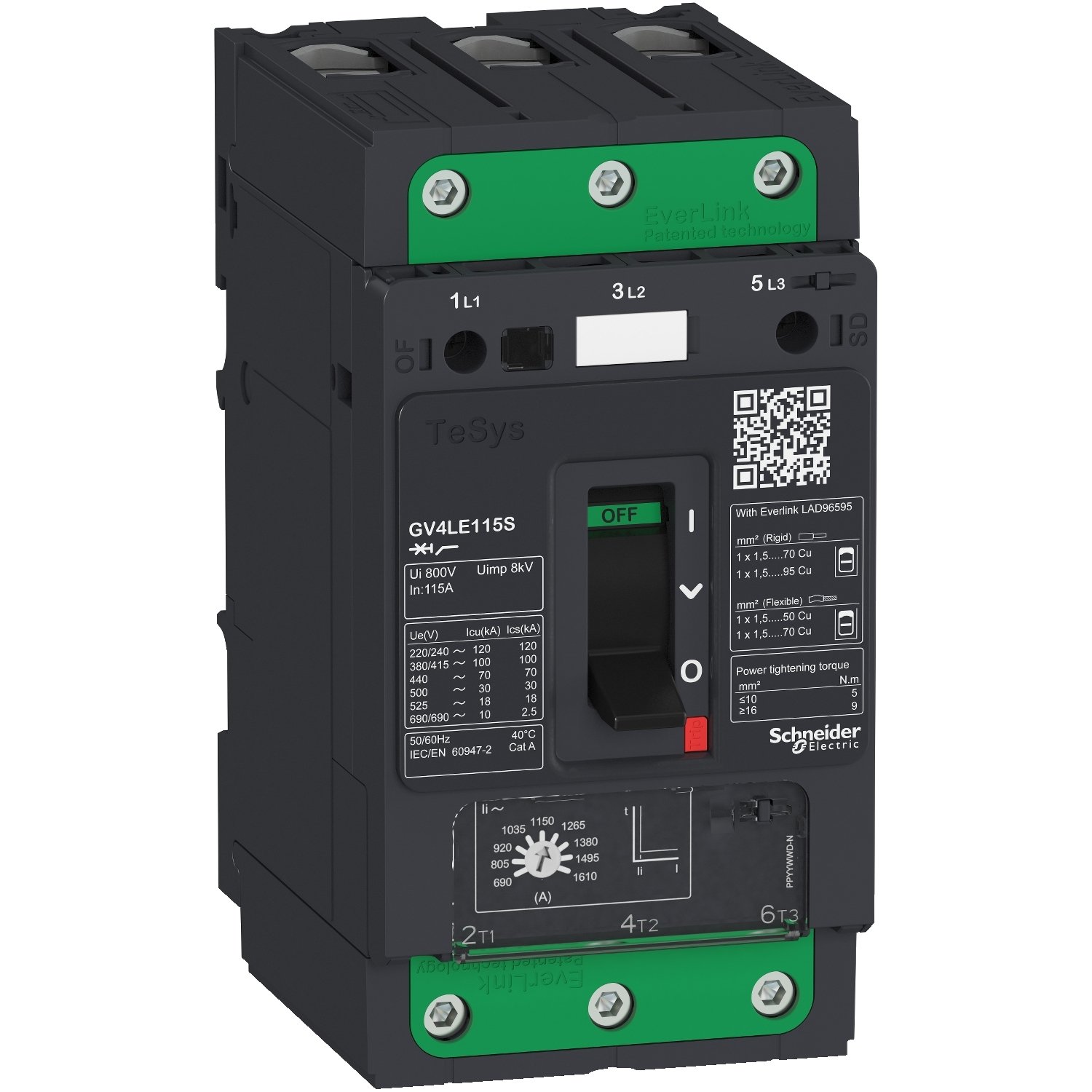

Schneider GV4LE02N | TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 2A, Icu 50kA, magnetic, EverLink terminals
EGP 30,552.00
Description
Schneider GV4LE02N | TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 2A, Icu 50kA, magnetic, EverLink terminals
Schneider GV4LE02N | TeSys Deca Motor Circuit Breaker – 3P, 2A, Icu 50kA, Magnetic, EverLink Terminals
The Schneider GV4LE02N is a 3-pole magnetic motor circuit breaker from the TeSys GV4 series, designed for reliable motor protection. With a rated current of 2A and high breaking capacity of 50kA, it is ideal for applications requiring short-circuit protection with fast disconnection. The EverLink terminals ensure long-lasting, secure connections.
General Information:
-
Brand: Schneider Electric
-
Series: TeSys GV4
-
Model Number: GV4LE02N
-
Product Type: Motor Circuit Breaker
-
Breaking Technology: Magnetic (short-circuit protection only)
Electrical Specifications:
-
Number of Poles: 3P (Three-phase)
-
Rated Current (In): 2 A
-
Breaking Capacity (Icu): 50 kA at 400/415 V AC
-
Operating Voltage: Up to 690 V AC
-
Frequency: 50/60 Hz
-
Trip Type: Instantaneous magnetic trip
Key Features:
-
EverLink Terminals: Maintain tightening torque over time, ideal for vibration-prone environments
-
High Short-Circuit Protection: Fast interruption to protect equipment
-
Compact Design: Space-saving for electrical panels
-
Tool-Free Mounting: Easy to install and replace
-
Visual Trip Indication: Simplifies fault diagnostics
Standards & Compliance:
-
IEC 60947-2
-
IEC 60947-4-1
-
CE Marked
-
RoHS Compliant
Applications:
-
Motor control and protection in industrial environments
-
HVAC systems
-
Pumps and compressors
-
Material handling equipment
-
Distribution boards requiring fast short-circuit protection
Benefits:
-
Reliable motor protection against short circuits
-
Reduced downtime with quick tripping and reset
-
Secure wiring with EverLink technology
-
Enhanced panel safety and organization
-
Meets international electrical standards
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | TeSys GV4 |
|---|---|
| Range | TeSys Deca TeSys Deca |
| Device short name | GV4L |
| Product name | TeSys GV4 TeSys Deca |
| Product or component type | Motor circuit breaker |
| Device application | Motor protection |
| Trip unit technology | Magnetic Electronic |
| Poles description | 3P |
|---|---|
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 |
| Operating position | Any position |
| Motor power kW | 0.25 kW at 400...415 V AC 50/60 Hz 0.37 kW at 400...415 V AC 50/60 Hz 0.55 kW at 400...415 V AC 50/60 Hz 0.75 kW at 400...415 V AC 50/60 Hz 0.37 kW at 500 V AC 50/60 Hz 0.55 kW at 500 V AC 50/60 Hz 0.75 kW at 500 V AC 50/60 Hz 1.1 kW at 500 V AC 50/60 Hz 0.55 kW at 660...690 V AC 50/60 Hz 0.75 kW at 660...690 V AC 50/60 Hz 1.1 kW at 660...690 V AC 50/60 Hz 1.5 kW at 660...690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| control type | Toggle |
| [In] rated current | 2 A |
| Magnetic tripping current | 12…28 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current | 115 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Power dissipation per pole | 6.1 W |
| Mechanical durability | 40000 cycles |
| Electrical durability | 40000 cycles for AC-3 at 440 V In/2 40000 cycles for AC-3 at 440 V In |
| Maximum operating rate | 25 cyc/h |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Connections - terminals | EverLink BTR screw connectors (top) 1 cable(s) 1.5…70 mm² - solid EverLink BTR screw connectors (top) 1 cable(s) 1.5…50 mm² - flexible EverLink BTR screw connectors (bottom) 1 cable(s) 2.5…95 mm² - solid EverLink BTR screw connectors (bottom) 1 cable(s) 2.5…70 mm² - flexible |
| Tightening torque | 9 N.m for cable 16…95 mm² 5 N.m for cable 1.5…10 mm² |
| Mechanical robustness | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6 Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6 Shocks: 15 gn 11 ms conforming to IEC 60068-2-27 |
| height | 155 mm |
| Width | 81 mm |
| Depth | 116 mm |
| Net weight | 1.5 kg |
| Colour | Grey (RAL 7016) |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| product certifications | IEC CCC EAC EU-RO MR |
| Climatic withstand | Conforming to IACS E10 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Pollution degree | 3 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for storage | -50…85 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Operating altitude | 5000 m |
| Ambient air temperature for operation | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.2 cm |
| Package 1 Width | 10.3 cm |
| Package 1 Length | 22.0 cm |
| Package 1 Weight | 1.72 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.6 kg |
| Warranty | 18 months |
|---|
