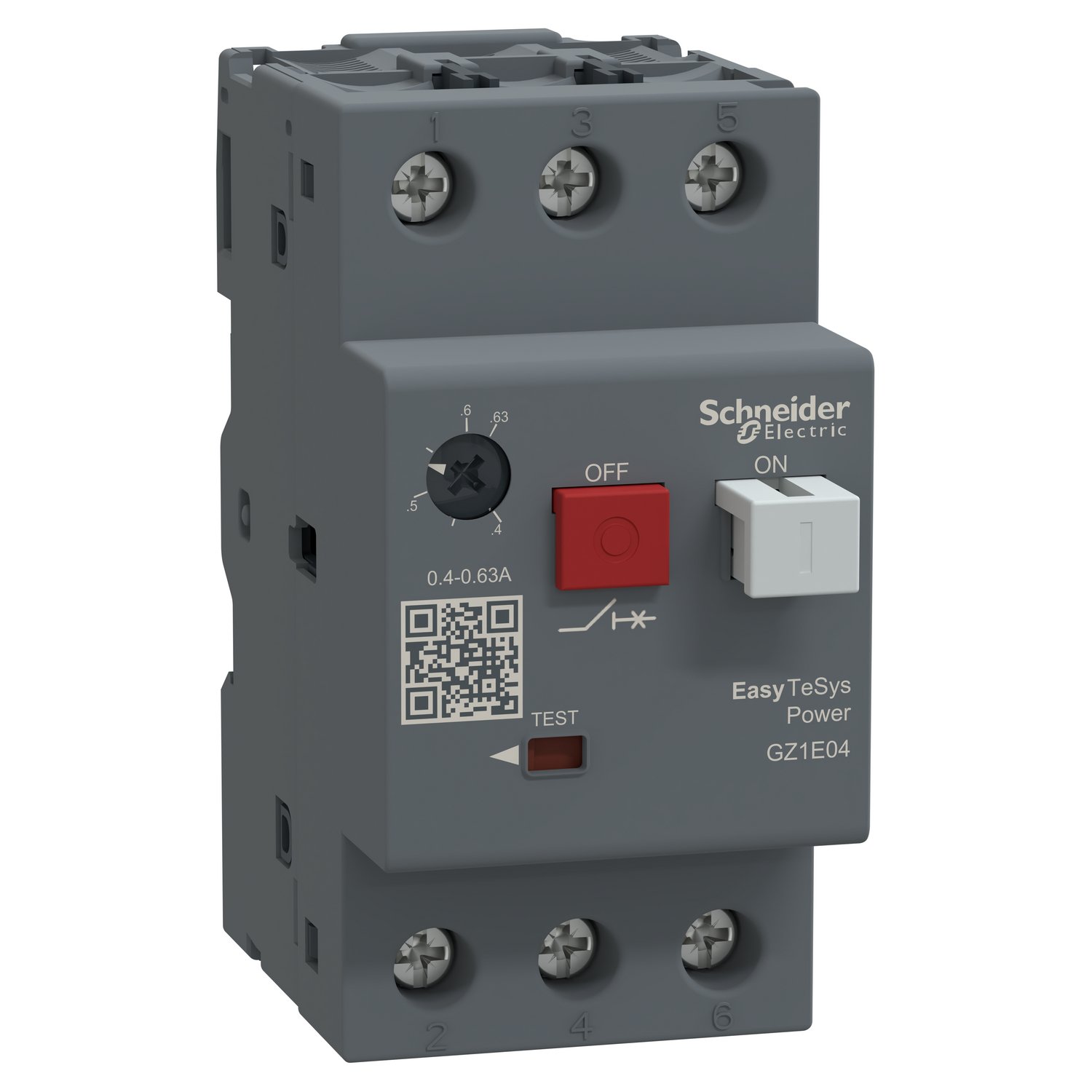

Schneider GZ1E04 | Motor circuit breaker, EasyPact, TVS GZ1E, AC-3, 3P, 0.40..0.63A, thermal magnetic detection

Schneider GZ1E04 | Motor Circuit Breaker, EasyPact, TVS GZ1E, AC-3, 3P, 0.40..0.63A, thermal magnetic detection description

The Schneider GZ1E04 is a cutting-edge motor circuit breaker designed for optimal performance and safety in electrical circuits. This article delves into its features, benefits, and technical specifications to provide a comprehensive understanding for professionals in the electrical industry and enthusiasts alike.

Introduction to Schneider GZ1E04 Motor Circuit Breaker

Schneider Electric is renowned for its innovative electrical solutions, and the GZ1E04 motor circuit breaker is no exception. It offers reliable protection against overloads and short circuits, ensuring the smooth operation of motors in various industrial applications.

Overview of EasyPact and TVS GZ1E

The GZ1E04 is part of Schneider’s EasyPact range, known for its ease of installation and maintenance. The TVS GZ1E model specifically caters to AC-3 applications, making it suitable for a wide range of motor loads.

AC-3 Rating and Its Significance

The AC-3 rating of the GZ1E04 indicates its ability to handle motor loads under normal operating conditions. This rating, coupled with thermal magnetic detection technology, ensures efficient and reliable circuit protection.

3P Configuration Explained

The GZ1E04 features a 3P (3-pole) configuration, suitable for three-phase electrical systems. This configuration enhances the breaker’s performance and compatibility with industrial setups.

Thermal Magnetic Detection Technology

The thermal magnetic detection technology in the GZ1E04 enables precise and quick response to overloads and short circuits. It combines thermal and magnetic mechanisms for efficient circuit protection.

Technical Specifications of Schneider GZ1E04

• Rated Current: 0.40..0.63A
• Voltage: AC 230/400 V
• Breaking Capacity: 25 kA
• Frequency: 50/60 Hz
• Operating Temperature: -25°C to +70°C

Installation and Usage Guidelines

Installing the GZ1E04 follows standard procedures outlined in its manual. Proper installation and adherence to usage guidelines are crucial for optimal performance and safety.

Benefits of Using Schneider GZ1E04

• Reliable circuit protection
• Easy installation and maintenance
• Compatibility with various motor loads
• Enhanced safety features

Comparison with Other Motor Circuit Breakers

Compared to traditional circuit breakers, the GZ1E04 stands out with its advanced technology, higher breaking capacity, and compact design, making it a preferred choice for industrial applications.

Maintenance and Safety Tips

Regular maintenance checks and adherence to safety protocols are essential for prolonging the lifespan of the GZ1E04 and ensuring a safe working environment.

Conclusion

The Schneider GZ1E04 motor circuit breaker combines cutting-edge technology with reliable performance, making it an ideal choice for industrial settings. Its features, including thermal magnetic detection and AC-3 rating, ensure efficient circuit protection and smooth motor operations.
