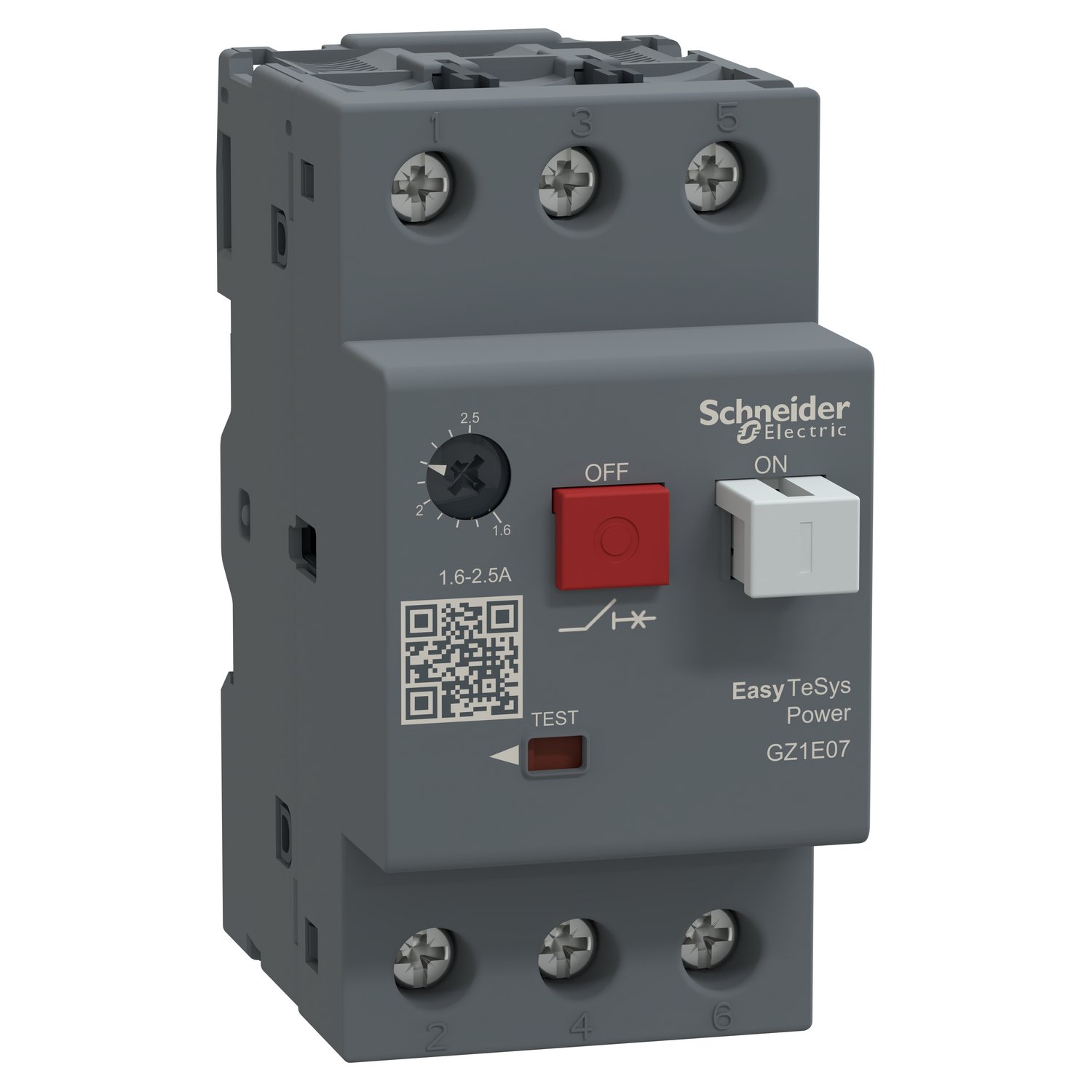

Schneider GZ1E07 | Motor circuit breaker,Easy TeSys Power,GZ1E,AC-3,3P,1.6..2.5A,thermal magnetic trip
Original price was: EGP 23,632.00.EGP 12,761.00Current price is: EGP 12,761.00.
Description
Schneider GZ1E07 | Motor circuit breaker,Easy TeSys Power,GZ1E,AC-3,3P,1.6..2.5A,thermal magnetic trip
Schneider GZ1E07: Comprehensive Overview
Introduction
The Schneider GZ1E07 is a robust enclosure accessory tailored to house and protect motor circuit breakers and other electrical components. Part of Schneider Electric’s extensive product lineup, the GZ1E07 is designed to ensure durability and performance in industrial and commercial environments. This article explores its specifications, features, applications, and benefits.
Technical Specifications
- Model Number: GZ1E07
- Type: Enclosure for motor circuit breakers
- Material: High-impact thermoplastic
- Mounting Type: Surface or DIN rail
- IP Rating: Protection against dust and water (verify specific IP rating from datasheet)
- Dimensions: Optimized for compact setups
- Compliance Standards: Meets IEC 60947 requirements for low-voltage switchgear
Key Features
- Durable Build:
- Constructed from high-quality materials, the GZ1E07 withstands harsh operating conditions.
- Compact Design:
- Fits seamlessly into control panels without taking up excessive space.
- Safety Assurance:
- Offers robust protection for internal components against environmental and operational hazards.
- Ease of Installation:
- Features user-friendly mounting options for quick integration into systems.
- Compatibility:
- Designed for use with Schneider motor circuit breakers and other compatible devices.
Applications
The Schneider GZ1E07 is ideal for:
- Motor Protection Systems: Housing motor circuit breakers to protect against overloads and short circuits.
- Power Distribution Panels: Organizing and safeguarding low-voltage components.
- Industrial Automation: Enhancing reliability and safety in control systems.
- Outdoor Installations: Providing a protective enclosure for sensitive devices when used with appropriate IP-rated configurations.
Benefits
- Enhanced Safety: Protects personnel and equipment by reducing exposure to electrical hazards.
- Reliable Performance: Ensures the longevity of housed components under demanding conditions.
- Cost Efficiency: Lowers maintenance costs through durable and robust construction.
- Versatility: Suitable for a wide range of applications in industrial and commercial setups.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| range of product | Easy TeSys Power |
| product or component type | Circuit breaker |
| Device short name | GZ1E |
| device application | Motor |
| Trip unit technology | Thermal-magnetic |
| Suitability for isolation | Yes conforming to IEC 60947-1 appendix 7.1.6 |
| Colour | Grey (RAL 7011) |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | AC-3 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| mounting mode | By clips By screws |
| mounting support | Rail |
| Mounting position | Any position |
| Motor power kW | 0.37 kW at 230 V AC 50/60 Hz 0.55 kW at 400 V AC 50/60 Hz 0.75 kW at 440 V AC 50/60 Hz 1.1 kW at 500 V AC 50/60 Hz 1.5 kW at 690 V AC 50/60 Hz |
| Breaking capacity | Icu: >= 100 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 2 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| Thermal protection adjustment range | 1.6…2.5 A |
| Magnetic tripping current | 33.5 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Power dissipation | 2.5 W (per pole) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 |
| Maximum operating rate | 25 cyc/h |
| Connections - terminals | Screw clamp terminals 2 1…6 mm² - cable stiffness: solid Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Height | 89 mm |
| Width | 44.5 mm |
| Depth | 78 mm |
| net weight | 0.26 kg |
| Standards | IEC 60947-2 IEC 60947-4 |
|---|---|
| Protective treatment | TH |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.800 cm |
| Package 1 Width | 8.400 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 241.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.148 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 106.800 kg |
