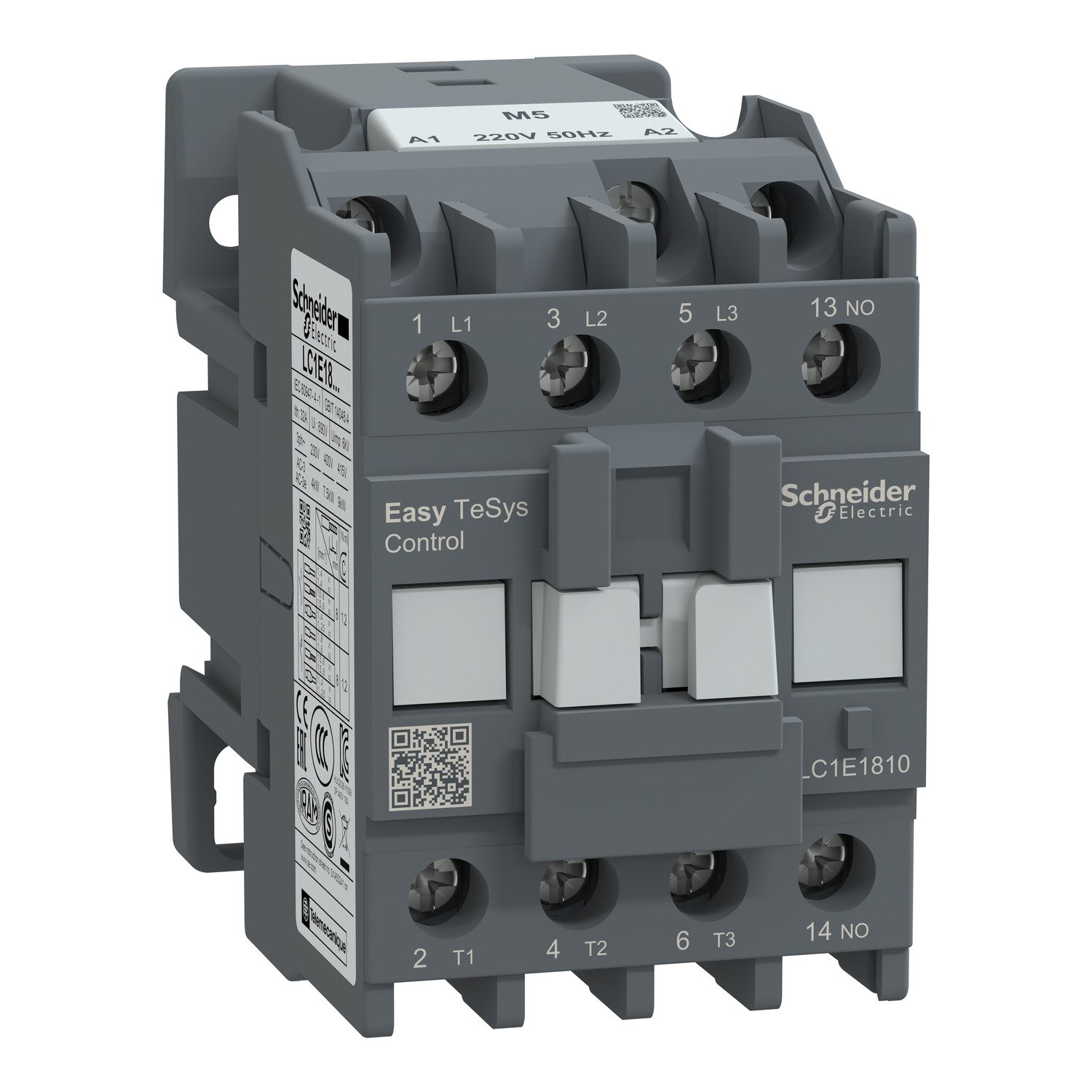

Schneider LC1E1810M5 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,220V AC coil,50Hz,1NO auxiliary contact
Original price was: EGP 16,234.00.EGP 8,767.00Current price is: EGP 8,767.00.
Description
Schneider LC1E1810M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,18A,220V AC coil,50Hz,1NO auxiliary contact
Schneider LC1E1810M5: Revolutionizing Electrical Control
In the realm of electrical engineering, precision and reliability are paramount. it stands as a testament to these principles, offering unparalleled performance in electrical control applications. This article aims to delve into the intricacies of it, elucidating its features, advantages, installation process, comparisons with alternatives, maintenance requirements, customer reviews, and availability.
Features
Overview
it is a versatile and robust contactor designed for a wide range of electrical control tasks. With its compact design and high-quality construction, it ensures optimal performance in various environments.
Technical Specifications
- Rated Operational Voltage: 240V AC
- Rated Operational Current: 18A
- Coil Voltage: 24V AC
- Number of Poles: 3
- Contact Configuration: 1NO (Normally Open)
- Coil Type: AC Coil
Application
it finds application in diverse industrial settings, including motor control, lighting control, heating systems, and HVAC (Heating, Ventilation, and Air Conditioning) units. Its compatibility with different voltage and current ratings makes it an ideal choice for numerous projects.
Advantages of LC1E1810M5
Efficiency
One of the standout features of it is its efficiency in electrical control operations. With low power consumption and minimal heat dissipation, it ensures energy savings without compromising performance.
Reliability
it is renowned for its reliability, offering consistent operation even in demanding conditions. Its durable construction and adherence to stringent quality standards make it a trusted choice for critical applications.
Versatility
From small-scale installations to large industrial setups, LC1E1810M5 adapts effortlessly to various environments. Its flexible design and compatibility with different control systems enhance its versatility, catering to a wide range of requirements.
Installation and Usage
Installation Process
Installing it is a straightforward process, thanks to its user-friendly design and clear instructions. With proper wiring and mounting, it can be seamlessly integrated into existing electrical systems.
Usage in Different Scenarios
Whether controlling motors in manufacturing plants or managing lighting systems in commercial buildings, it delivers consistent performance. Its reliable operation ensures smooth functioning across diverse applications.
Comparison with Alternatives
Comparison with Similar Models
When compared to similar contactors in the market, it stands out for its superior performance and durability. Its robust construction and advanced features make it a preferred choice among engineers and technicians.
Advantages Over Competitors
it offers several advantages over its competitors, including higher efficiency, greater reliability, and broader compatibility. Its competitive pricing and comprehensive warranty further solidify its position in the market.
Maintenance and Durability
Maintenance Tips
To ensure optimal performance and longevity, regular maintenance of it is recommended. This includes periodic inspections, cleaning of contacts, and ensuring proper ventilation around the device.
Durability
Built to withstand harsh operating conditions, LC1E1810M5 exhibits exceptional durability. Its rugged construction and high-quality components ensure prolonged service life, minimizing downtime and maintenance costs.
Customer Reviews
Positive Reviews
Customers praise LC1E1810M5 for its reliability, ease of installation, and consistent performance. Many highlight its robust construction and versatility, making it a valuable asset in their electrical projects.
Negative Reviews
Some users have reported minor issues with coil durability and contact wear over time. However, these instances are rare and can be mitigated with proper maintenance and usage practices.
Price and Availability
Price Range
The price of LC1E1810M5 varies depending on factors such as quantity, distributor, and region. However, it offers excellent value for money considering its performance and reliability.
Availability
LC1E1810M5 is readily available through authorized Schneider distributors and online retailers. Its widespread availability ensures convenient access for engineers and technicians worldwide.
Conclusion
In conclusion, Schneider LC1E1810M5 sets a benchmark in electrical control technology with its exceptional performance, reliability, and versatility. From industrial automation to commercial applications, it delivers unparalleled efficiency and peace of mind for engineers and users alike.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| range of product | Easy TeSys Control |
| product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 18 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 18 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 32 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| Motor power kW | 4 kW at 220...230 V AC 50/60 Hz 7.5 kW at 380...400 V AC 50/60 Hz 9 kW at 415 V AC 50/60 Hz 9 kW at 440 V AC 50/60 Hz 10 kW at 500 V AC 50/60 Hz 10 kW at 660...690 V AC 50/60 Hz |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 32 A (at 55 °C) for power circuit |
| Irms rated making capacity | 180 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 144 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 145 A 40 °C - 10 s for power circuit 84 A 40 °C - 60 s for power circuit 40 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 35 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 2.5 mOhm - Ith 32 A 50 Hz for power circuit |
| Power dissipation per pole | 0.81 W AC-3 2.6 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 300000 cycles AC-1 1200000 cycles AC-3 |
| Control circuit type | AC at 50 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50 Hz |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing 4...19 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end |
| Tightening torque | Power circuit: 1.2 N.m Control circuit: 1.2 N.m |
| Auxiliary contact composition | 1 NO |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| mounting support | Plate DIN rail |
| Standards | IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1 |
|---|---|
| Product certifications | EAC CE |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (7 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms) |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
| net weight | 0.3 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.700 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 7.600 cm |
| Package 1 Weight | 339.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.652 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 576 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 211.044 kg |
| Warranty | 18 months |
|---|
