Schneider LC1E50M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,50A,220V AC coil,50Hz

Schneider LC1E50M5 | Contactor, EasyPact TVS, 3P (3NO), AC-3, ≤440V, 50A, 220V AC Coil, 50Hz

1. Introduction

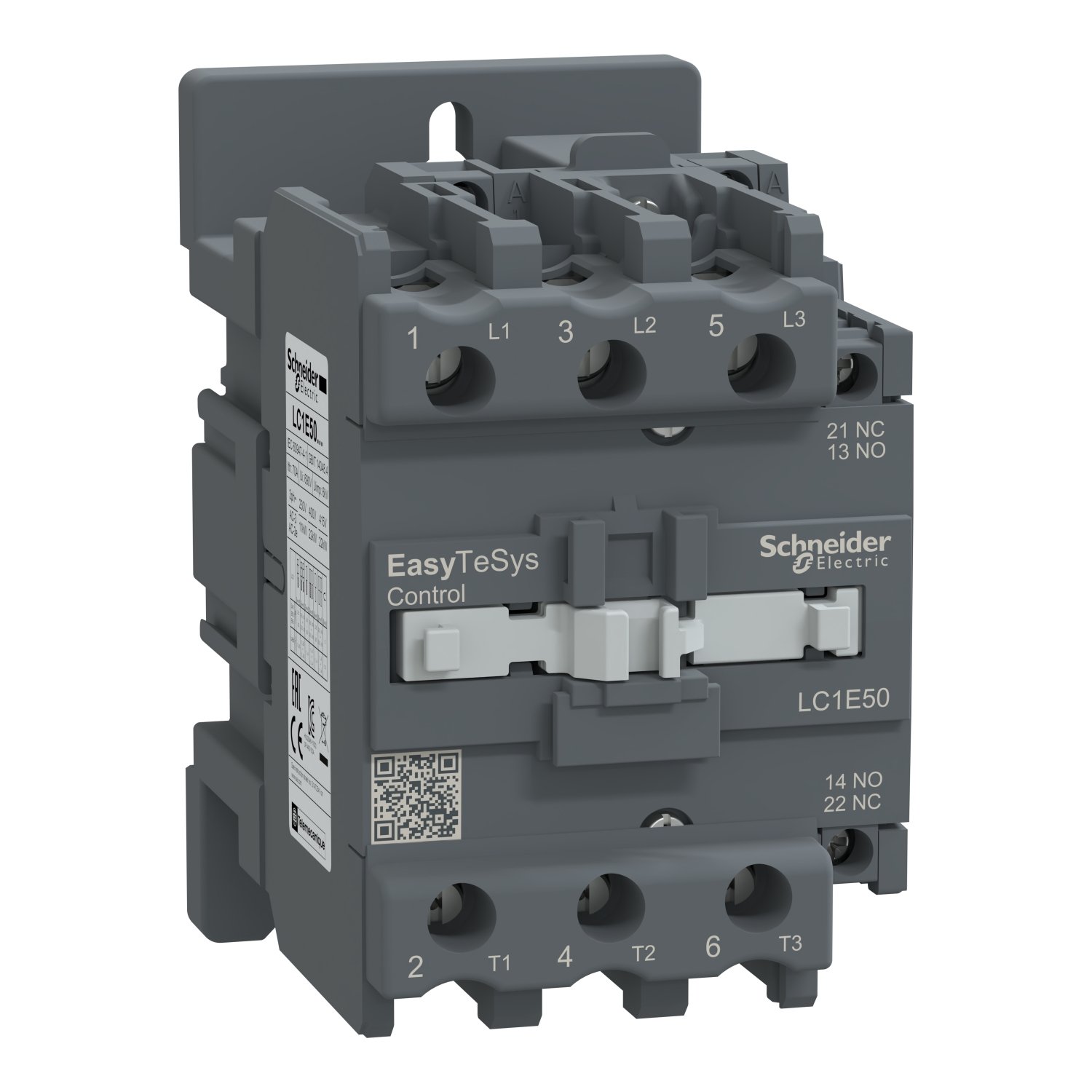

The Schneider LC1E50M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, designed for efficient motor control and power switching. It supports AC-3 applications up to 440V with a 50A current rating. Equipped with a 220V AC coil (50Hz), this contactor ensures reliable performance in industrial and commercial applications.

2. Key Features

• Rated Current: 50A (AC-3)

• Voltage Rating: ≤440V

• Number of Poles: 3P (3 Normally Open – 3NO)

• Coil Voltage: 220V AC, 50Hz

• Compact and Durable Design for space-saving installations

• High Electrical & Mechanical Endurance

• Auxiliary Contact for Control Circuit Integration

• Easy Installation & Compatibility with Overload Relays

3. Technical Specifications

• Product Series: EasyPact TVS

• Utilization Category: AC-3 (Motor control applications)

• Rated Current (Ie): 50A

• Operating Voltage: ≤440V

• Coil Voltage: 220V AC, 50Hz

• Number of Poles: 3P (3NO)

• Mechanical Durability: Up to 10 million operations

• Electrical Durability: Up to 1 million operations (AC-3)

• Operating Temperature: -5°C to +55°C

• Compliance Standards: IEC 60947-4-1

4. Applications

The LC1E50M5 contactor is widely used in various industrial and commercial applications, including:

• Motor Control – Reliable switching and protection of motors

• HVAC Systems – Controlling fans, compressors, and pumps

• Pumping Systems – Ensuring efficient operation of water and fluid pumps

• Lighting Control – Managing high-power lighting circuits

• Industrial Automation – Integration into control panels for process automation

5. Benefits

• Reliable and High-Performance Operation – Ensures long-term durability

• Compact & Space-Saving Design – Ideal for control panels

• Versatile Applications – Suitable for industrial and commercial power switching

• Easy Wiring & Maintenance – Quick installation and replacement

• Seamless Integration – Works with Schneider overload relays for enhanced motor protection
