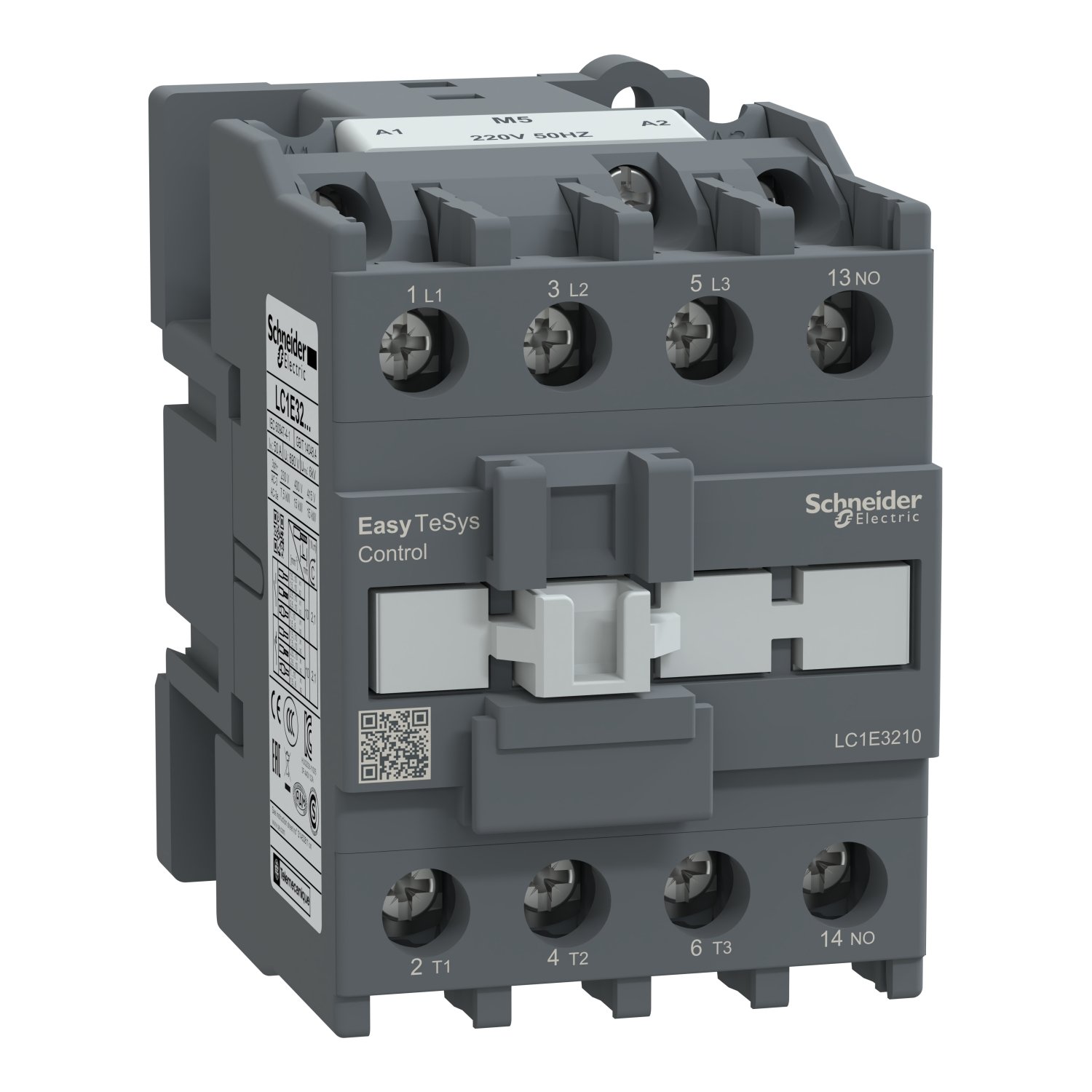

Schneider LC1E3210M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,32A,220V AC coil,50Hz,1NO auxiliary contact
Original price was: EGP 27,178.00.EGP 14,676.00Current price is: EGP 14,676.00.
Description
Schneider LC1E3210M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,32A,220V AC coil,50Hz,1NO auxiliary contact
Schneider LC1E3210M5 | Contactor, EasyPact TVS, 3P (3NO), AC-3, ≤440V, 32A, 220V AC Coil, 50Hz, 1NO Auxiliary Contact
1. Introduction
The Schneider LC1E3210M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, specifically designed for motor control and power switching in industrial applications. It supports AC-3 applications up to 440V with a 32A current rating and operates using a 220V AC coil (50Hz). Additionally, it includes a 1NO (Normally Open) auxiliary contact for enhanced control functions.
2. Key Features
-
Rated Current: 32A (AC-3)
-
Voltage Rating: ≤440V
-
Number of Poles: 3P (3 Normally Open – 3NO)
-
Auxiliary Contact: 1NO (Normally Open)
-
Coil Voltage: 220V AC, 50Hz
-
Compact & Sturdy Design for industrial applications
-
High Electrical & Mechanical Durability
-
Compatible with Overload Relays for Motor Protection
-
Easy Installation & Maintenance
3. Technical Specifications
-
Product Series: EasyPact TVS
-
Utilization Category: AC-3 (Motor control applications)
-
Rated Current (Ie): 32A
-
Operating Voltage: ≤440V
-
Coil Voltage: 220V AC, 50Hz
-
Number of Poles: 3P (3NO)
-
Auxiliary Contact Configuration: 1NO
-
Mechanical Durability: Up to 10 million operations
-
Electrical Durability: Up to 1 million operations (AC-3)
-
Operating Temperature: -5°C to +55°C
-
Compliance Standards: IEC 60947-4-1
4. Applications
The LC1E3210M5 contactor is ideal for various industrial and commercial applications, including:
-
Motor Control – Effective switching and protection of motors
-
HVAC Systems – Managing air conditioning, fans, and compressors
-
Pumping Systems – Controlling water and fluid pumps
-
Lighting Control – Handling high-power lighting circuits
-
Industrial Automation – Integration into control panels for automation systems
5. Benefits
-
Reliable and Efficient Performance – Ensures long-term durability
-
Compact & Space-Saving Design – Ideal for control panel installations
-
Versatile Usage – Suitable for multiple industrial applications
-
Quick Installation & Wiring – Simplifies setup and maintenance
-
Built-in 1NO Auxiliary Contact – Enhances control and monitoring capabilities
-
Seamless Compatibility – Works with Schneider overload relays for enhanced motor protection
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 32 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| Motor power kW | 7.5 kW at 220...230 V AC 50/60 Hz 15 kW at 380...400 V 15 kW at 415 V 15 kW at 440 V 18.5 kW at 500 V 18.5 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 50 A (at 55 °C) for power circuit |
| Irms rated making capacity | 320 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 256 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 260 A 40 °C - 10 s for power circuit 138 A 40 °C - 60 s for power circuit 60 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 2.5 mOhm - Ith 50 A 50 Hz for power circuit |
| Power dissipation per pole | 2 W AC-3 5 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 8000000 cycles |
| Electrical durability | 1000000 cycles AC-3 350000 cycles AC-1 |
| Control circuit type | AC at 50 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50 Hz |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing 4...19 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 2.1 N.m |
| Auxiliary contact composition | 1 NO |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Mounting support | DIN rail Plate |
| Standards | IEC 60947-4-1 IEC 60947-1 IEC 60947-5-1 |
|---|---|
| Product certifications | EAC CE |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms) |
| Height | 84 mm |
| Width | 56 mm |
| Depth | 86 mm |
| Net weight | 0.45 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.700 cm |
| Package 1 Width | 8.600 cm |
| Package 1 Length | 9.200 cm |
| Package 1 Weight | 447.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 11.267 kg |
| Warranty | 18 months |
|---|
