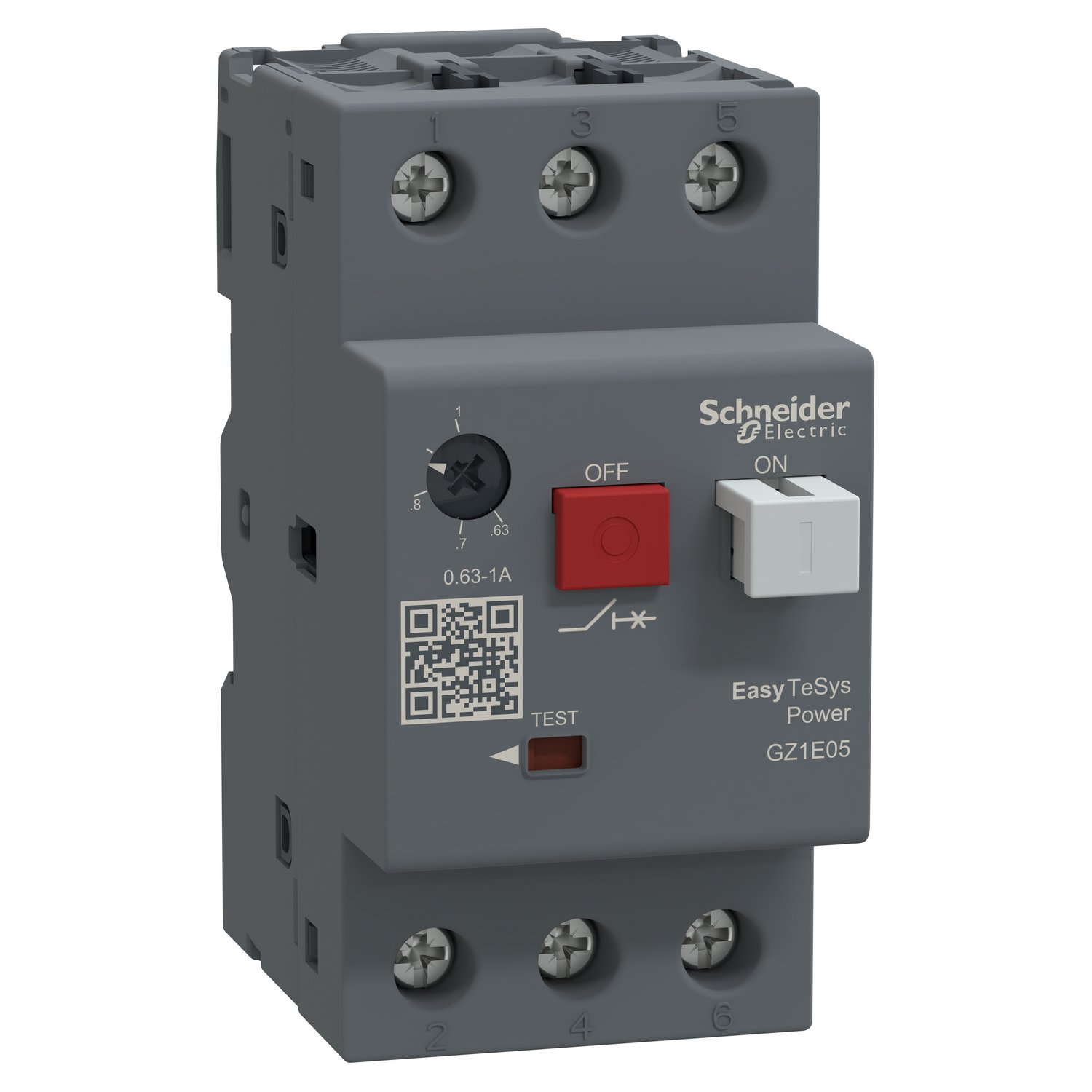

Schneider GZ1E05 | Motor circuit breaker, EasyPact, TVS GZ1E, AC-3, 3P, 0.63..1A, thermal magnetic detection

Schneider GZ1E05 | Motor Circuit Breaker, EasyPact TVS GZ1E, 3P, 0.63-1A, Thermal Magnetic Protection

1. Introduction

The Schneider GZ1E05 is a motor circuit breaker (MCB) from the EasyPact TVS GZ1E series, designed to protect motors against overloads, short circuits, and phase failures. With an adjustable current range of 0.63 to 1A, it is ideal for small motor applications in industrial and commercial setups.

2. Key Features

• Thermal-Magnetic Protection – Provides overload (thermal) and short-circuit (magnetic) protection

• Adjustable Current Range – 0.63A to 1A for precise motor protection

• Three-Phase (3P) Design – Suitable for three-phase motor circuits

• Compact & Space-Saving – Fits easily into electrical panels

• Trip Indication – Helps with quick fault diagnosis and troubleshooting

• High Breaking Capacity – Reliable for industrial and commercial applications

• Easy Installation & Maintenance

3. Technical Specifications

• Product Series: EasyPact TVS GZ1E

• Protection Type: Thermal-Magnetic

• Current Rating: 0.63A – 1A (Adjustable)

• Number of Poles: 3P

• Operating Voltage: ≤ 690V AC

• Breaking Capacity: High performance for industrial environments

• Operating Temperature: -5°C to +55°C

• Compliance Standards: IEC 60947-2, IEC 60947-4-1

4. Applications

The Schneider GZ1E05 motor circuit breaker is suitable for a variety of applications, including:

• Small Industrial Motors – Provides protection for low-power motors

• Conveyors & Automated Systems – Ensures continuous operation without electrical faults

• Pumps & Fans – Ideal for small HVAC and water pump applications

• Machine Tools & Robotics – Protects sensitive equipment from overloads and short circuits

• Commercial & Agricultural Systems – Used in processing equipment and small machinery

5. Benefits

• Reliable Motor Protection – Prevents costly damage due to overloads and short circuits

• Compact & Efficient Design – Saves space in control panels

• Adjustable Overload Settings – Offers flexibility for different motor types

• Enhanced Safety & Durability – Reduces downtime and maintenance costs

• Easy to Install & Operate – Simplifies panel integration
