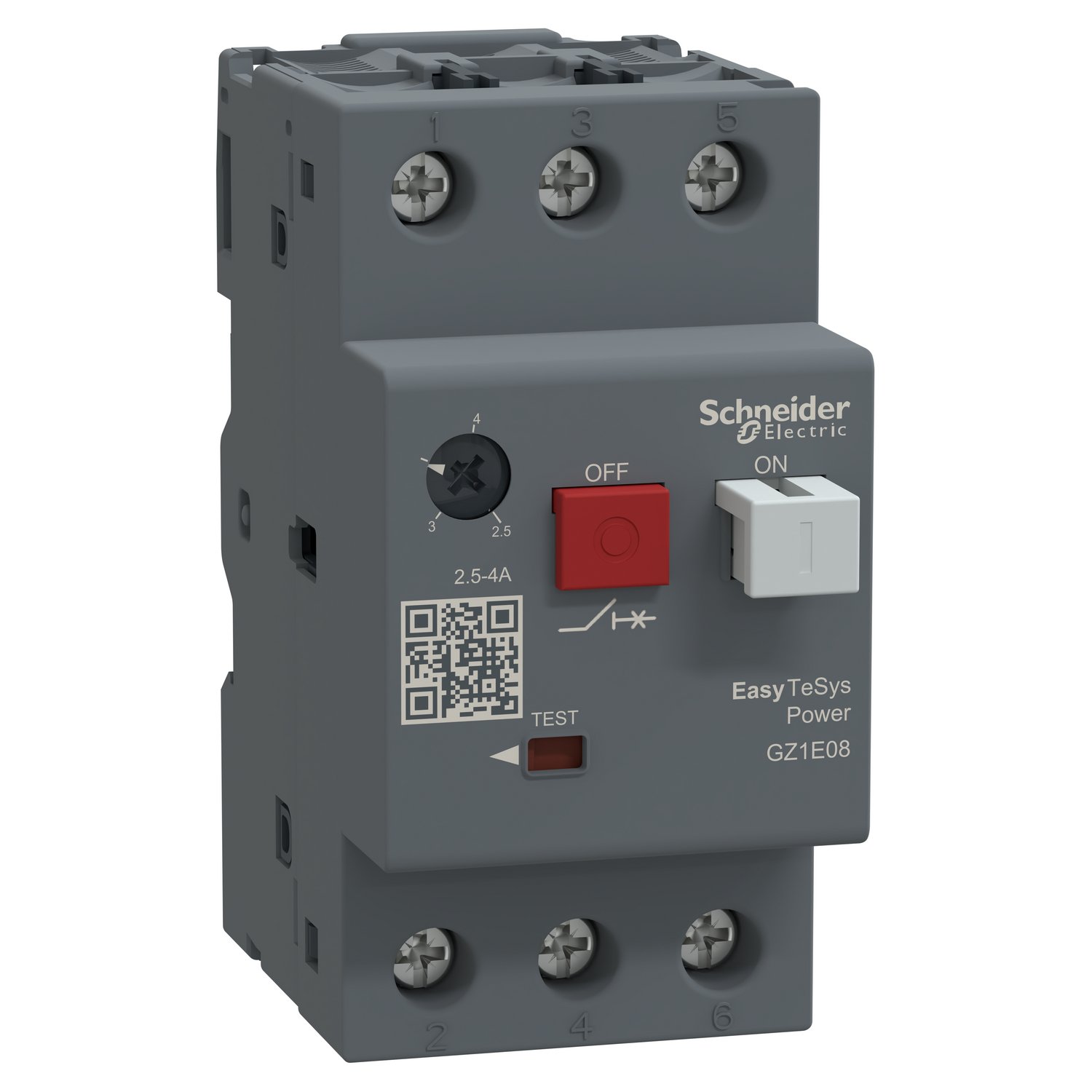

Schneider GZ1E08 | Motor Circuit Breaker, EasyPact TVS GZ1E, 3P, 2.5-4A, Thermal Magnetic Protection

1. Introduction

The Schneider GZ1E08 is a motor circuit breaker (MCB) from the EasyPact TVS GZ1E series, designed to protect motors from overloads, short circuits, and phase failures. It operates within a current range of 2.5 to 4A, making it ideal for small to medium-sized motor applications.

2. Key Features

• Thermal-Magnetic Protection – Protects against both overload (thermal) and short-circuit (magnetic) faults

• Adjustable Current Setting – 2.5A to 4A for flexible motor protection

• Three-Phase (3P) Design – Suitable for three-phase motor control circuits

• Compact & Space-Saving – Ideal for panel-mounted applications

• Trip Indication – Provides clear fault identification for quick troubleshooting

• High Breaking Capacity – Ensures reliable operation in industrial environments

• Easy Installation & Maintenance

3. Technical Specifications

• Product Series: EasyPact TVS GZ1E

• Protection Type: Thermal-Magnetic

• Current Rating: 2.5A – 4A (Adjustable)

• Number of Poles: 3P

• Operating Voltage: ≤ 690V AC

• Breaking Capacity: High performance for industrial applications

• Operating Temperature: -5°C to +55°C

• Compliance Standards: IEC 60947-2, IEC 60947-4-1

4. Applications

The Schneider GZ1E08 motor circuit breaker is widely used in:

• Industrial Motor Control Panels – Ensures reliable protection for motors

• Pumps & Fans – Protects essential rotating equipment

• Conveyors & Machinery – Ideal for automated systems requiring motor protection

• HVAC Systems – Used in heating, ventilation, and air conditioning motor circuits

• Agricultural & Commercial Applications – Protects motors in irrigation and processing systems

5. Benefits

• Reliable Motor Protection – Prevents damage due to overloads and short circuits

• Enhanced Safety & Performance – Reduces downtime and maintenance costs

• Compact & Efficient Design – Saves space in electrical panels

• Adjustable Overload Settings – Allows precise motor protection

• Easy to Install & Operate – Simplifies panel integration and maintenance
