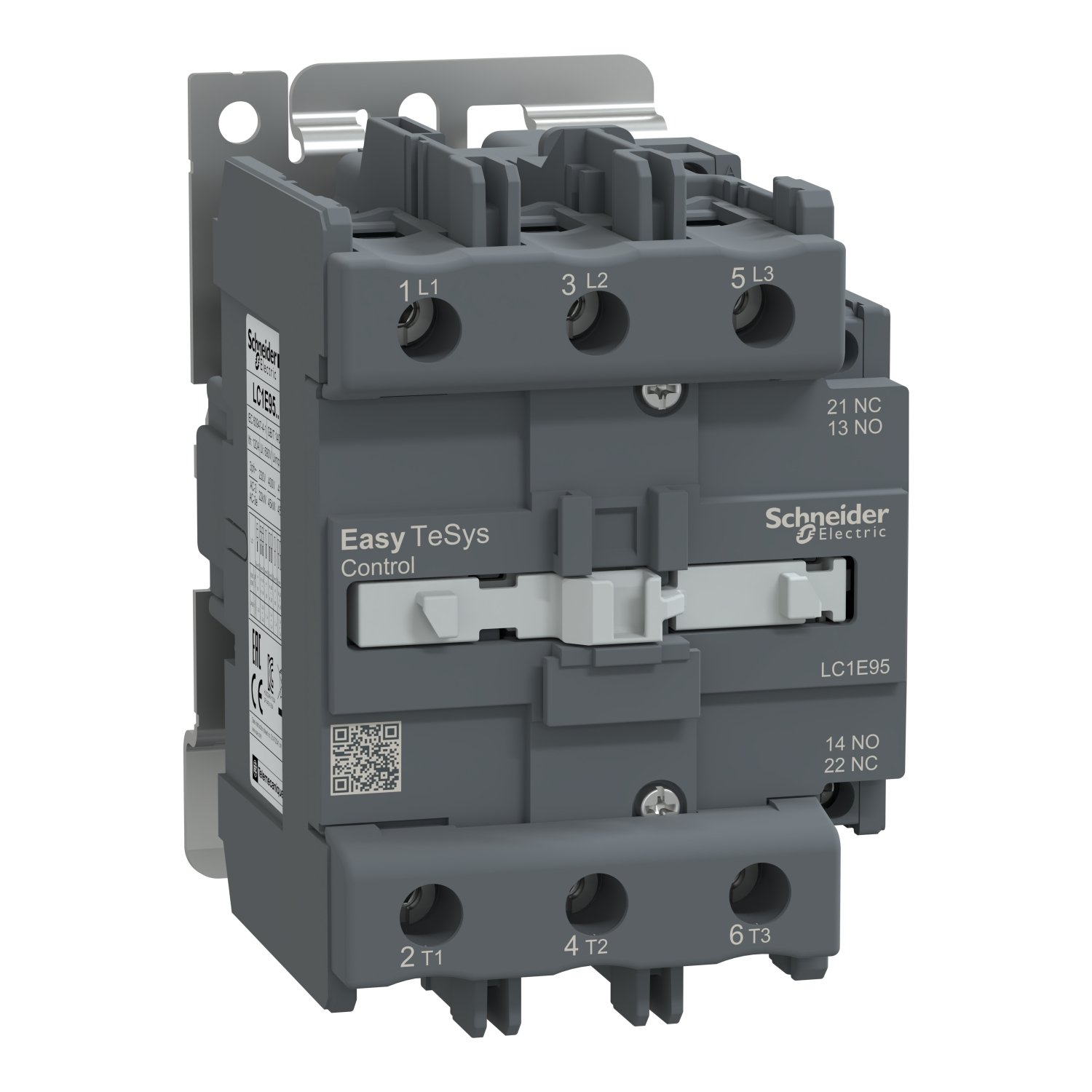

Schneider LC1E95M5 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,95A,220V AC coil,50Hz
Original price was: EGP 100,993.00.EGP 54,537.00Current price is: EGP 54,537.00.
Description
Schneider LC1E95M5 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,95A,220V AC coil,50Hz
Schneider LC1E95M5 Description
Introduction to Schneider LC1E95M5
it is a highly efficient and reliable contactor designed for a wide range of industrial applications. With its advanced features and robust build, it stands out as a top choice for engineers and technicians looking for a dependable solution for power control.
Specifications and Features
Voltage Rating
it operates within a voltage rating of [insert voltage rating here], making it suitable for various power systems and installations.
Current Rating
With a current rating of [insert current rating here], this contactor can handle heavy loads with ease, ensuring smooth operation even under demanding conditions.
Coil Voltage
The coil voltage of [insert coil voltage here] ensures optimal performance and reliable switching, enhancing the overall efficiency of the system.
Contact Configuration
The contact configuration of it allows for [insert contact configuration here], enabling seamless integration into different circuit setups.
Mounting Style
Designed for convenience, it features [insert mounting style here], offering flexibility in installation and space utilization.
Applications
it finds its applications across various industries, including:
- Industrial Machinery: From manufacturing plants to assembly lines, this contactor ensures efficient power distribution and control in industrial machinery.
- HVAC Systems: In heating, ventilation, and air conditioning systems, the Schneider LC1E95M5 plays a crucial role in regulating power flow and maintaining optimal performance.
- Power Distribution: Whether in commercial buildings or residential complexes, this contactor is essential for safe and reliable power distribution.
Advantages of Schneider LC1E95M5
Reliability
Built to withstand harsh conditions and heavy usage, the Schneider LC1E95M5 offers unmatched reliability, minimizing downtime and ensuring uninterrupted operation.
Durability
Constructed from high-quality materials and subjected to rigorous testing, this contactor delivers long-lasting performance, making it a cost-effective solution for various applications.
Efficiency
With its efficient design and precise engineering, the Schneider LC1E95M5 maximizes energy efficiency, reducing waste and lowering operational costs over time.
Installation Guide
Before installing the Schneider LC1E95M5, it is essential to:
- Precautions: Ensure all power sources are disconnected, and safety measures are followed to prevent accidents or damage.
- Wiring Instructions: Refer to the manufacturer’s guidelines for proper wiring connections, ensuring correct installation and functionality.
Maintenance Tips
To keep the Schneider LC1E95M5 operating at peak performance, follow these maintenance tips:
- Regular Inspections: Periodically inspect the contactor for signs of wear or damage, and replace any worn components promptly.
- Cleaning Procedures: Keep the contactor clean and free from dust or debris, as this can affect its performance and longevity.
Comparison with Competing Models
When compared to other contactors in its class, the Schneider LC1E95M5 stands out for its superior performance, reliability, and efficiency, making it the preferred choice for professionals worldwide.
Customer Reviews
Customers rave about the Schneider LC1E95M5, praising its durability, ease of installation, and consistent performance in diverse applications.
Pricing and Availability
The Schneider LC1E95M5 is competitively priced and readily available through authorized distributors and retailers worldwide.
Conclusion
In conclusion,it is a top-of-the-line contactor that offers unmatched reliability, durability, and efficiency for a wide range of industrial applications. With its advanced features and robust build, it’s the perfect choice for professionals seeking a dependable solution for power control.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| range of product | Easy TeSys Control |
| product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 95 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 95 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 125 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| Motor power kW | 45 kW at 415 V 45 kW at 440 V 45 kW at 500 V 25 kW at 220...230 V AC 50/60 Hz 45 kW at 380...400 V 55 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 120 A (at 55 °C) for power circuit |
| Irms rated making capacity | 950 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 760 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 135 A 40 °C - 600 s for power circuit 800 A 40 °C - 10 s for power circuit 400 A 40 °C - 60 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 160 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 0.8 mOhm - Ith 120 A 50 Hz for power circuit |
| Power dissipation per pole | 7.2 W AC-3 12 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 3000000 cycles |
| Electrical durability | 900000 cycles AC-3 350000 cycles AC-1 |
| Control circuit type | AC at 50 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50 Hz |
| Inrush power in VA | 200 VA 50 Hz cos phi 0.75 (at 20 °C) 220 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 22 VA 60 Hz cos phi 0.3 (at 20 °C) 20 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 6…10 W for control circuit |
| Operating time | 20...35 ms on closing 6...30 ms on opening |
| Maximum operating rate | 1200 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 4…16 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 4…50 mm² - cable stiffness: solid without cable end |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 12 N.m |
| Auxiliary contact composition | 1 NO + 1 NC |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| mounting support | DIN rail Plate |
| Standards | IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1 |
|---|---|
| Product certifications | EAC CE |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms) |
| Height | 127 mm |
| Width | 85 mm |
| Depth | 121 mm |
| Net weight | 1.52 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 1.535 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.178 kg |
| Warranty | 18 months |
|---|
