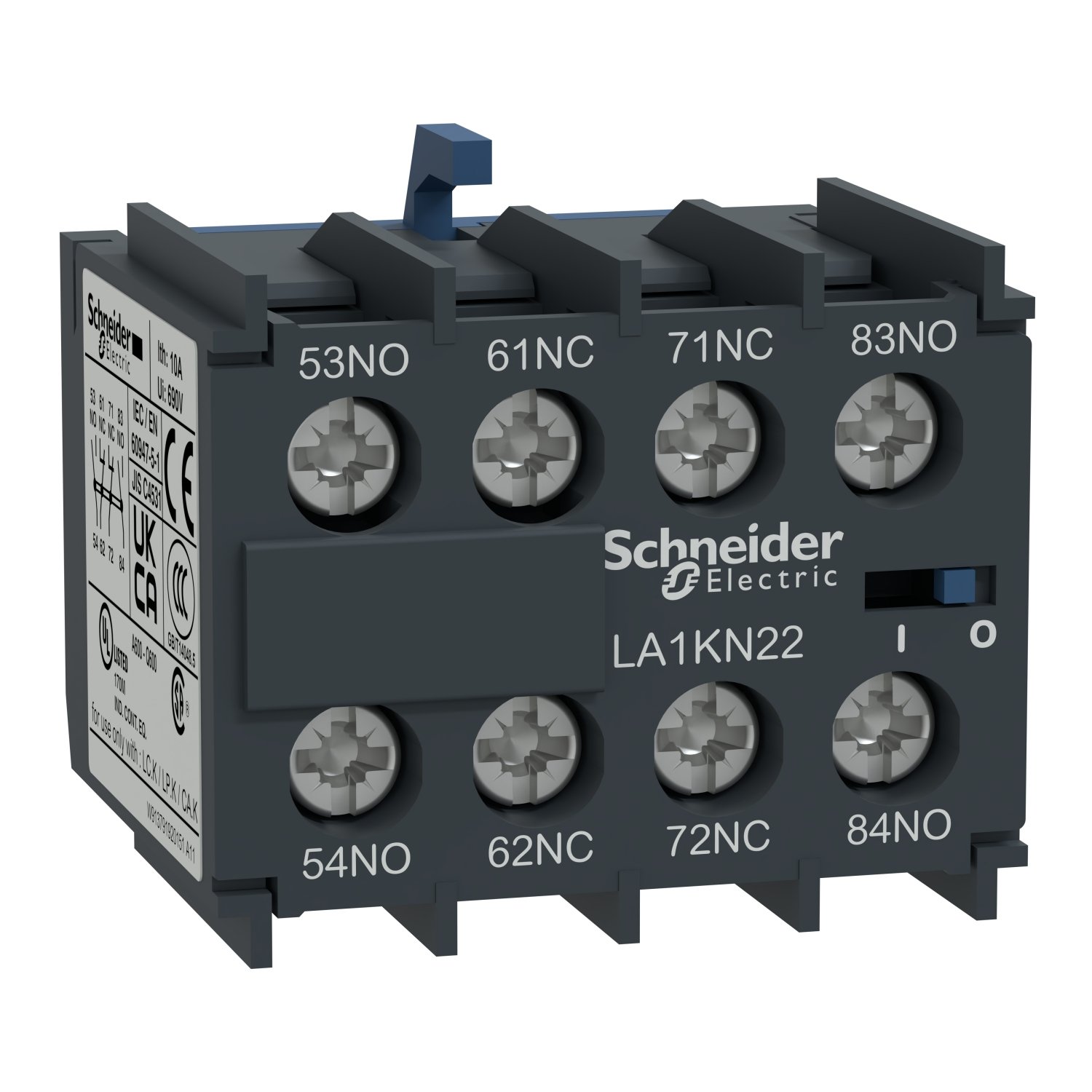

Schneider LA1KN22 TeSys K
it is a renowned product in the realm of contactors. These devices play a crucial role in controlling electric circuits, particularly in industrial and commercial settings. In this article, we delve into the features, specifications, applications, and advantages of it, along with a comprehensive guide on its installation and maintenance.
Understanding TeSys K Contactors
What are contactors?
Contactors are electromechanical switches used for controlling electric circuits. They are typically employed in applications where frequent switching of electrical power circuits is required.
Features of TeSys K contactors
TeSys K contactors, including the Schneider LA1KN22 model, are known for their robust construction, reliable performance, and versatility. They are designed to handle high current loads and offer excellent electrical and mechanical endurance.
Specifications of Schneider LA1KN22 TeSys K
contactors come with the following specifications:
- Voltage rating: Up to 690 volts AC
- Current rating: 20 amperes
- Coil voltage: 24 volts AC
- Enclosure type: IP20 protection
These specifications make the LA1KN22 model suitable for a wide range of industrial and commercial applications.
Applications of Schneider LA1KN22 TeSys K
contactors find applications in various industries, including manufacturing, automotive, and HVAC. They are commonly used for motor control, lighting control, and heating applications.
Advantages of Using Schneider LA1KN22 TeSys K
contactors offer several advantages, including:
- Reliability: They are built to withstand harsh operating conditions and ensure reliable performance.
- Durability: The rugged construction ensures long-term durability, reducing the need for frequent replacements.
- Easy installation: They come with user-friendly features that simplify the installation process, saving time and effort.
Installation Guide for Schneider LA1KN22 TeSys K
Installing it contactors is straightforward. Follow these steps for a successful installation:
- Wiring instructions: Ensure proper wiring according to the circuit requirements and follow the wiring diagram provided by Schneider Electric.
- Mounting instructions: Mount the contactor securely on a stable surface using suitable screws and fasteners.
Maintenance Tips for Schneider LA1KN22 TeSys K
To ensure optimal performance and longevity of contactors, follow these maintenance tips:
- Regular inspection: Periodically inspect the contactor for any signs of damage or wear.
- Cleaning procedures: Keep the contactor clean and free from dust and debris by using a soft brush or compressed air.
Troubleshooting Common Issues
Despite their reliability, contactors may encounter occasional issues. Here are some common problems and their solutions:
- Overheating: Check for any loose connections or overloaded circuits and rectify them accordingly.
- Coil failure: Inspect the coil for any damage or short circuits and replace it if necessary.
Comparison with Other Contactor Models
Schneider LA1KN22 TeSys K contactors can be compared with other models from the TeSys range, such as TeSys D and TeSys F. While each model has its unique features and applications, TeSys K contactors stand out for their versatility and reliability.
Customer Reviews and Testimonials
Customers who have used Schneider LA1KN22 TeSys K contactors have praised their performance, durability, and ease of installation. Many have commended Schneider Electric for delivering high-quality products that meet their needs.
Conclusion
Schneider LA1KN22 TeSys K contactors are an excellent choice for controlling electric circuits in industrial and commercial environments. With their robust construction, reliable performance, and user-friendly features, they offer a cost-effective solution for various applications. By following the installation and maintenance guidelines provided in this article, users can ensure optimal performance and longevity of Schneider LA1KN22 TeSys K contactors.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Product name | TeSys K |
| Product or component type | Auxiliary contact block |
| Device short name | LA1 |
| Range compatibility | TeSys K LC1K TeSys K CA2K TeSys K CA3K |
| Mounting location | Front |
| Pole contact composition | 2 NO + 2 NC |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A (at 50 °C) |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 JIS C8201-5-1 UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme CCC UL CSA CE UKCA |
| Irms rated making capacity | 110 A at <= 690 V AC conforming to IEC 60947 |
|---|---|
| Permissible short-time rating | 80 A 1 s 60 A 500 ms 110 A 100 ms |
| Associated fuse rating | 10 A gG at <= 690 V conforming to IEC 60947 |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non overlap distance | 0.5 mm |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid |
| Tightening torque | 1.3 N.m - with screwdriver Philips No 2 1.3 N.m - with screwdriver pozidriv No 2 |
| Height | 30 mm |
| Width | 38 mm |
| Depth | 35 mm |
| Net weight | 0.045 kg |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TC conforming to IEC 60068 |
| Ambient air temperature for storage | -50…80 °C |
| Ambient air temperature for operation | -25…50 °C |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.295 cm |
| Package 1 Width | 3.823 cm |
| Package 1 Length | 3.917 cm |
| Package 1 Weight | 30.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.4 cm |
| Package 2 Width | 16.698 cm |
| Package 2 Length | 15.45 cm |
| Package 2 Weight | 401.0 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 4.651 kg |
| Warranty | 18 |
|---|
