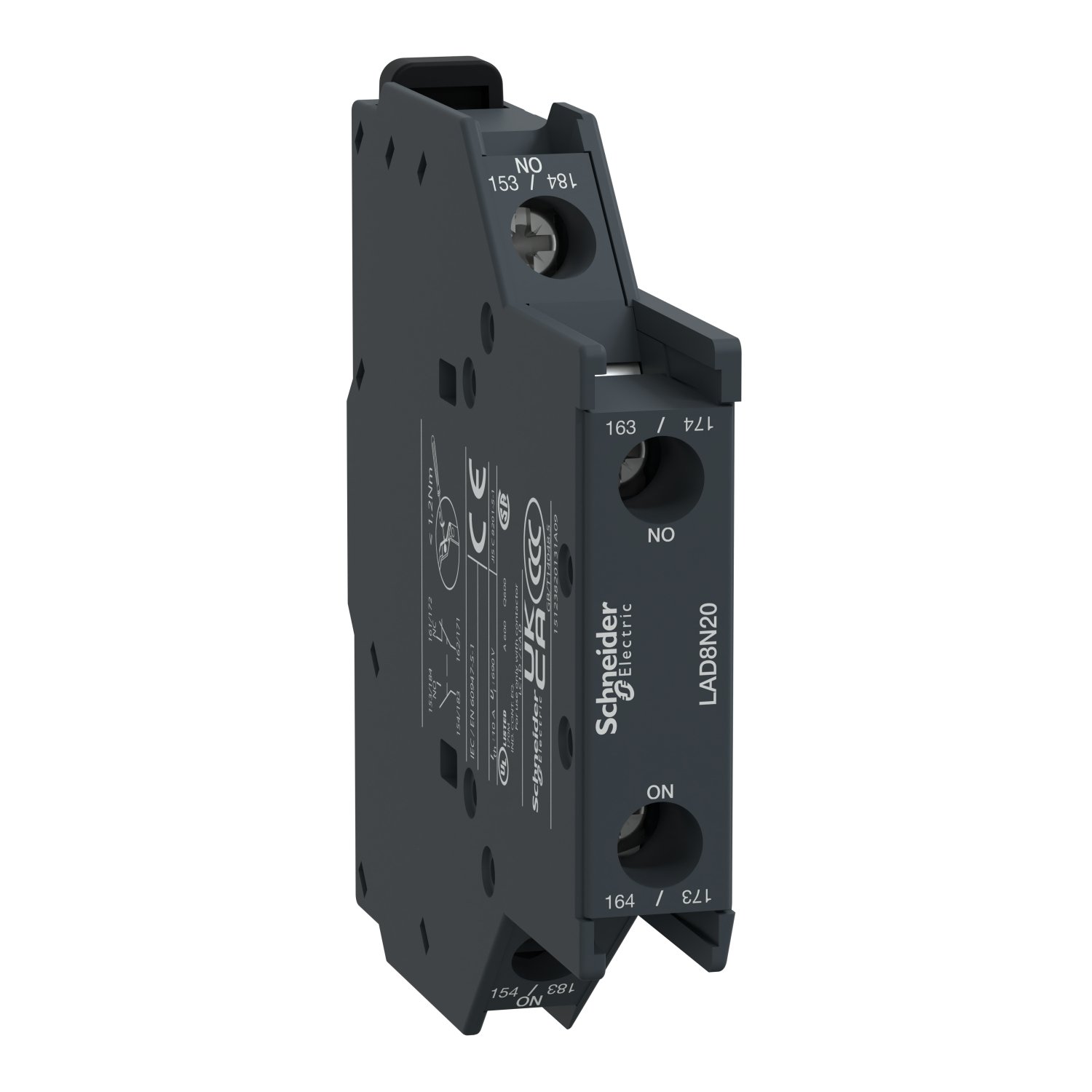

Schneider LAD8N20 TeSys
Schneider LAD8N20 TeSys: Enhancing Industrial Control Systems
In the realm of industrial control systems, reliability, efficiency, and safety are paramount. Schneider LAD8N20 TeSys stands tall as a crucial component in achieving these objectives. In this article, we delve into the intricacies of Schneider LAD8N20 TeSys, its features, applications, installation, maintenance, advantages, and much more.
Understanding TeSys – What is it?
TeSys is a comprehensive range of motor starters and contactors designed to ensure seamless control of electrical motors. Schneider LAD8N20 TeSys, a part of this range, offers advanced features for enhanced motor management and protection.
Features of Schneider LAD8N20 TeSys
Schneider LAD8N20 TeSys boasts a myriad of features tailored to meet the diverse needs of industrial applications. From its robust construction to its intelligent control capabilities, here are some key features:
Robust Construction
Advanced Motor Protection
Integrated Control Options
Compact Design
Easy Installation
Enhanced Reliability
Applications and Uses
- Motor Control Panels
- Conveyor Systems
- Pump Control
- HVAC Systems
- Industrial Machinery
Installation Guide
- Choose the appropriate mounting location.
- Ensure proper electrical connections.
- Securely fasten the TeSys device in place.
- Test the functionality to ensure proper operation.
Maintenance Tips
To ensure optimal performance and longevity, regular maintenance of Schneider LAD8N20 TeSys is essential. Follow these simple tips:
- Regularly inspect for signs of wear or damage.
- Keep the device clean and free from debris.
- Test functionality periodically.
- Replace worn-out components as needed.
Advantages of Using Schneider LAD8N20 TeSys
- Enhanced Motor Protection
- Improved Efficiency
- Reduced Downtime
- Cost Savings
- Compatibility with Various Applications
Comparison with Other Products
When compared to similar products in the market, Schneider LAD8N20 TeSys stands out due to its advanced features, reliability, and ease of use.
Customer Reviews and Testimonials
- has revolutionized our motor control systems, providing unmatched reliability.” – John D., Plant Manager
- “Easy to install and configure, it has simplified our operations significantly.” – Sarah L., Electrical Engineer
Troubleshooting Common Issues
Despite its robust design, users may encounter occasional issues with it. Here are some common troubleshooting steps:
- Check for loose connections.
- Verify power supply.
- Inspect for signs of overheating.
- Consult the user manual for specific error codes.
Warranty Information
comes with a standard warranty, ensuring peace of mind for customers. For detailed warranty terms and conditions, refer to the official Schneider Electric website.
Future Developments and Upgrades
As technology continues to evolve, Schneider Electric remains committed to enhancing the capabilities of TeSys devices. Stay tuned for future developments and upgrades.
Importance in Industrial Settings
In today’s fast-paced industrial landscape, reliable motor control systems are indispensable. it plays a crucial role in ensuring smooth operations and maximizing productivity.
Conclusion
In conclusion, it stands as a beacon of innovation and reliability in the realm of industrial control systems. With its advanced features, ease of installation, and robust construction, it continues to set the benchmark for excellence.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Product name | TeSys Deca |
| Product or component type | Auxiliary contact block |
| Range compatibility | TeSys Deca LC1D09…95 AC coil TeSys Deca LC1D40A…80A AC Coil TeSys Deca LC1D115/150 TeSys Deca CAD AC coil TeSys F LC1F |
| Mounting location | Side |
| Pole contact composition | 2 NO |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 600 V conforming to UL 600 V conforming to CSA |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme UL CSA CCC EAC UKCA |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
|---|---|
| Permissible short-time rating | 100 A 1 s 120 A 500 ms 140 A 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end |
| Tightening torque | 1.7 N.m - with screwdriver flat Ø 6 mm 1.7 N.m - with screwdriver Philips No 2 1.7 N.m - with screwdriver pozidriv No 2 |
| Height | 76 mm |
| Width | 12.5 mm |
| Depth | 76 mm |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60…80 °C |
| Ambient air temperature for operation | -5…60 °C |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.802 cm |
| Package 1 Width | 7.313 cm |
| Package 1 Length | 7.861 cm |
| Package 1 Weight | 61.2 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.5 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 960 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 80 kg |
| Warranty | 18 |
|---|
