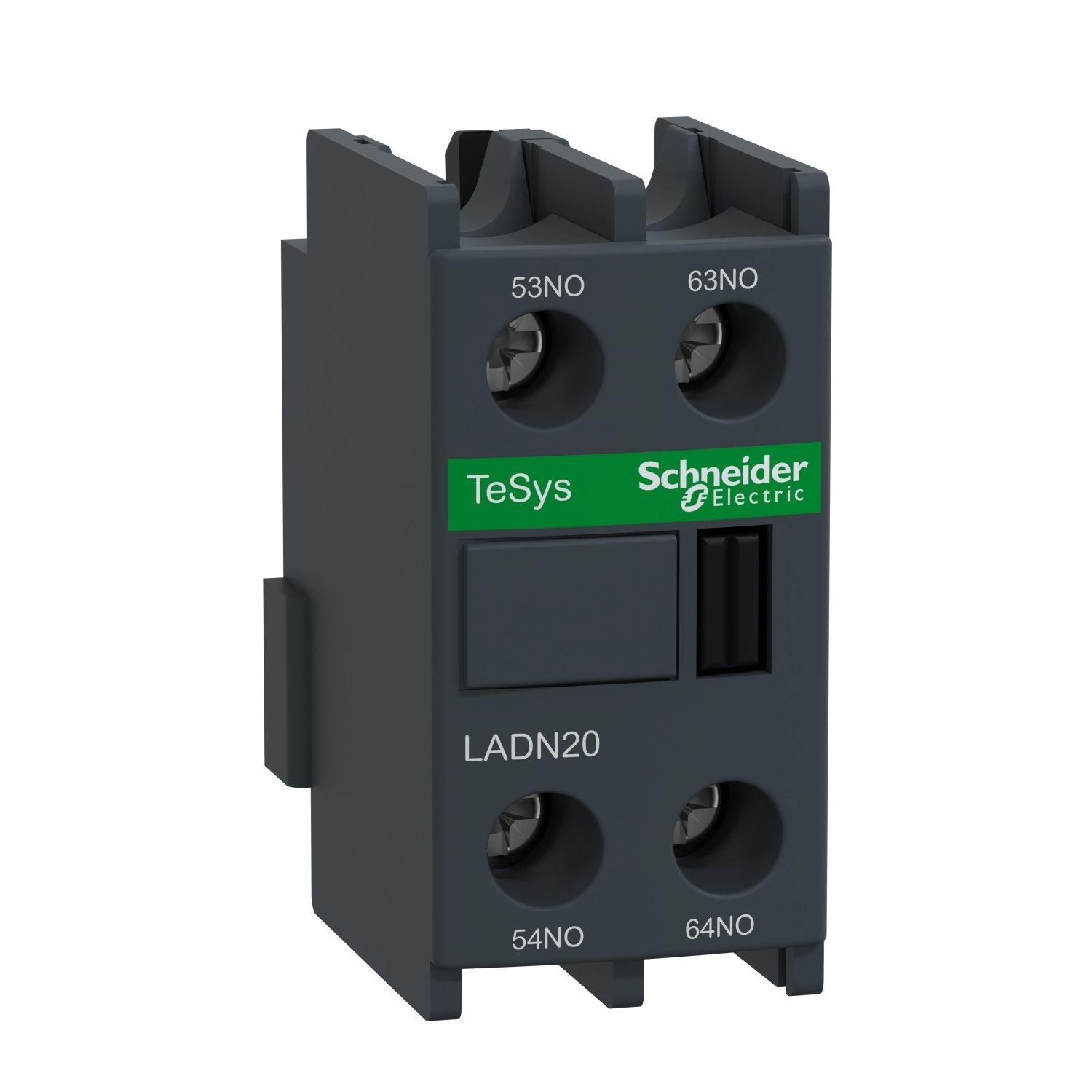

Schneider LADN20 TeSys | Auxiliary contact block, TeSys D, 2NO, front mounting, screw terminals
Schneider LADN20 TeSys
Original price was: EGP 10,118.00.EGP 5,464.00Current price is: EGP 5,464.00.
Description
Schneider LADN20 TeSys: Revolutionizing Industrial Automation
In the world of industrial automation, efficiency, reliability, and versatility are paramount. This is where Schneider LADN20 TeSys comes into play. This article aims to explore the features, applications, benefits, and installation of the Schneider LADN20 TeSys, shedding light on its significance in the industrial landscape.
Features of Schneider LADN20 TeSys
Compact Design
One of the standout features of the Schneider LADN20 TeSys is its compact design. Despite its small size, it packs a powerful punch, making it ideal for applications where space is limited.
High Performance
The LADN20 TeSys is renowned for its high performance. With robust construction and advanced technology, it delivers consistent and reliable operation, even in the most demanding environments.
Versatility
It is compatible with a wide range of motor types and can be seamlessly integrated into various industrial systems, offering flexibility and convenience to users.
Applications
it finds its applications across diverse industrial sectors, including:
- Industrial Automation: From conveyor systems to packaging machinery, it plays a crucial role in automating industrial processes, enhancing efficiency and productivity.
- Control Panels: It is commonly used in control panels to control and protect motors, ensuring optimal performance and safety.
- Motor Control: Whether it’s starting, stopping, or protecting motors, the LADN20 TeSys excels in motor control applications, providing precise and reliable operation.
Benefits of Using Schneider LADN20 TeSys
Improved Efficiency
By streamlining motor control and protection, it helps improve overall system efficiency, reducing energy consumption and downtime.
Cost-effectiveness
Despite its advanced features, the LADN20 TeSys offers excellent value for money. Its durability and longevity translate to long-term cost savings for businesses.
Reliable Performance
With Schneider Electric’s reputation for quality and reliability, users can trust the LADN20 TeSys to deliver consistent performance day in and day out, ensuring uninterrupted operation of industrial systems.
Installation Process
Installing the Schneider LADN20 TeSys is a straightforward process that can be completed in a few simple steps. Here’s a basic guide to help you get started:
- Preparation: Gather all the necessary tools and materials required for installation.
- Mounting: Securely mount the TeSys unit in the desired location, ensuring proper ventilation and accessibility.
- Wiring: Connect the appropriate wires according to the wiring diagram provided in the product manual.
- Testing: Once the installation is complete, perform a thorough test to ensure that the TeSys is functioning correctly.
Maintenance Tips
To prolong the lifespan and optimize the performance of your Schneider LADN20 TeSys, follow these maintenance tips:
- Regularly inspect the unit for any signs of damage or wear.
- Keep the surrounding area clean and free from debris to prevent overheating.
- Schedule periodic maintenance checks as recommended by the manufacturer.
Troubleshooting Common Issues
Despite its reliability, occasional issues may arise with it. Here are some common problems and their solutions:
- Overheating: Check for inadequate ventilation or excessive load on the motor.
- Faulty Connections: Inspect the wiring for loose connections or damaged cables.
- Tripping of Circuit Breakers: Identify and rectify any short circuits or overloads in the system.
Comparison with Alternatives
While there are several alternatives available in the market, it stands out for its superior performance, compact design, and versatility. Its robust construction and advanced features make it a preferred choice for industrial applications worldwide.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys TeSys Deca |
|---|---|
| Product name | TeSys Deca |
| Product or component type | Auxiliary contact block |
| Device short name | LADN |
| Range compatibility | TeSys D CAD TeSys D LC1D TeSys F LC1F TeSys F CR1F TeSys Deca CAD TeSys Deca LC1D |
| Mounting location | Front |
| Pole contact composition | 2 NO |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 600 V conforming to UL 600 V conforming to CSA |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 EN 50012 UL 60947-5-1 CSA C22.2 No 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme UL CSA CCC EAC UKCA |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
|---|---|
| Permissible short-time rating | 100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end |
| Tightening torque | 1.7 N.m - with screwdriver flat Ø 6 mm 1.7 N.m - with screwdriver Philips No 2 1.7 N.m - with screwdriver pozidriv No 2 |
| Height | 48 mm |
| Width | 26 mm |
| Depth | 42 mm |
| Colour | Dark grey |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60…80 °C |
| Ambient air temperature for operation | -5…60 °C |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.800 cm |
| Package 1 Width | 4.200 cm |
| Package 1 Length | 5.200 cm |
| Package 1 Weight | 34.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.800 cm |
| Package 2 Width | 8.600 cm |
| Package 2 Length | 25.600 cm |
| Package 2 Weight | 342.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 11.452 kg |
| Warranty | 18 |
|---|
