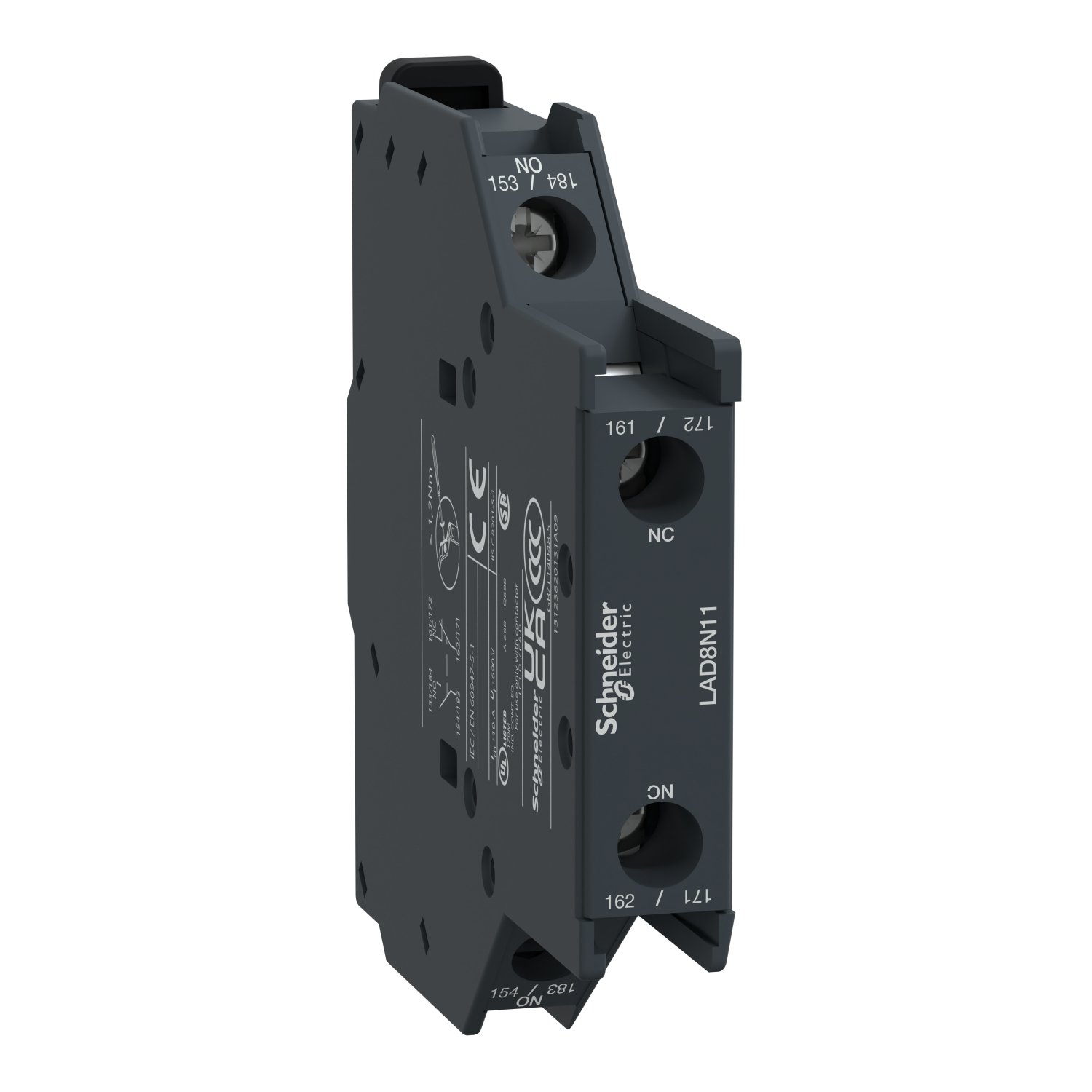

Schneider LAD8N11 TeSys: Enhancing Efficiency and Safety in Electrical Systems
In the realm of electrical engineering, efficiency and safety are paramount concerns. This is where Schneider LAD8N11 TeSys steps in as a reliable and innovative solution. Combining advanced technology with a user-friendly design, the Schneider LAD8N11 TeSys offers a range of features and benefits that make it a preferred choice for various applications.
Understanding TeSys and Its Importance
Before delving into the specifics of Schneider LAD8N11 TeSys, it’s essential to grasp the concept of TeSys. TeSys is a comprehensive range of motor-starter and motor-protection components designed to ensure the efficiency, reliability, and safety of electrical systems. It encompasses a variety of products, including contactors, overload relays, and motor circuit breakers.
Features of Schneider LAD8N11 TeSys
Compact Design
One of the standout features of Schneider LAD8N11 TeSys is its compact design. Despite its powerful capabilities, this TeSys model is remarkably space-efficient, making it suitable for installations where space is limited.
Reliability and Durability
is engineered to deliver unparalleled reliability and durability. Built to withstand harsh operating conditions, it offers long-term performance and peace of mind to users.
Wide Range of Applications
From industrial automation to building management systems, it finds application in diverse sectors. Its versatility and adaptability make it a versatile solution for various electrical control tasks.
Installation Process of Schneider LAD8N11 TeSys
Installing it is straightforward, thanks to its user-friendly design and clear instructions provided by Schneider Electric. However, it’s essential to follow all safety guidelines and consult professional electricians for complex installations.
Benefits of Using Schneider LAD8N11 TeSys
- Enhanced Efficiency: it optimizes the performance of electrical systems, resulting in improved efficiency and reduced energy consumption.
- Superior Safety: With advanced protective features, it enhances the safety of electrical installations, minimizing the risk of accidents and downtime.
- Easy Maintenance: Designed for ease of maintenance, it ensures minimal downtime and reduced maintenance costs, contributing to overall operational efficiency.
Maintenance Tips for Schneider LAD8N11 TeSys
To ensure optimal performance and longevity of it, regular maintenance is essential. This includes periodic inspections, cleaning, and testing of components. Additionally, it’s crucial to follow the manufacturer’s recommendations for maintenance intervals and procedures.
Comparison with Other TeSys Models
it stands out among its peers due to its superior performance, reliability, and versatility. When compared to other TeSys models, it offers enhanced features and capabilities, making it the preferred choice for many users.
Customer Reviews and Testimonials
Customer feedback plays a vital role in assessing the effectiveness and reliability of a product. it has garnered positive reviews from users worldwide, highlighting its performance, durability, and value for money.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Product name | TeSys Deca |
| Product or component type | Auxiliary contact block |
| Range compatibility | TeSys Deca LC1D09…95 AC coil TeSys Deca LC1D115/150 TeSys Deca LC1D40A…80A AC Coil TeSys Deca CAD AC coil TeSys F LC1F |
| Mounting location | Side |
| Pole contact composition | 1 NO + 1 NC |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 600 V conforming to UL 600 V conforming to CSA |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme UL CSA CCC EAC UKCA |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
|---|---|
| Permissible short-time rating | 100 A 1 s 120 A 500 ms 140 A 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end |
| Tightening torque | 1.7 N.m - with screwdriver flat Ø 6 mm 1.7 N.m - with screwdriver Philips No 2 1.7 N.m - with screwdriver pozidriv No 2 |
| Height | 76 mm |
| Width | 12.5 mm |
| Depth | 76 mm |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60…80 °C |
| Ambient air temperature for operation | -5…60 °C |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 7.1 cm |
| Package 1 Length | 7.5 cm |
| Package 1 Weight | 62.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.308 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 960 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 79 kg |
| Warranty | 18 |
|---|
