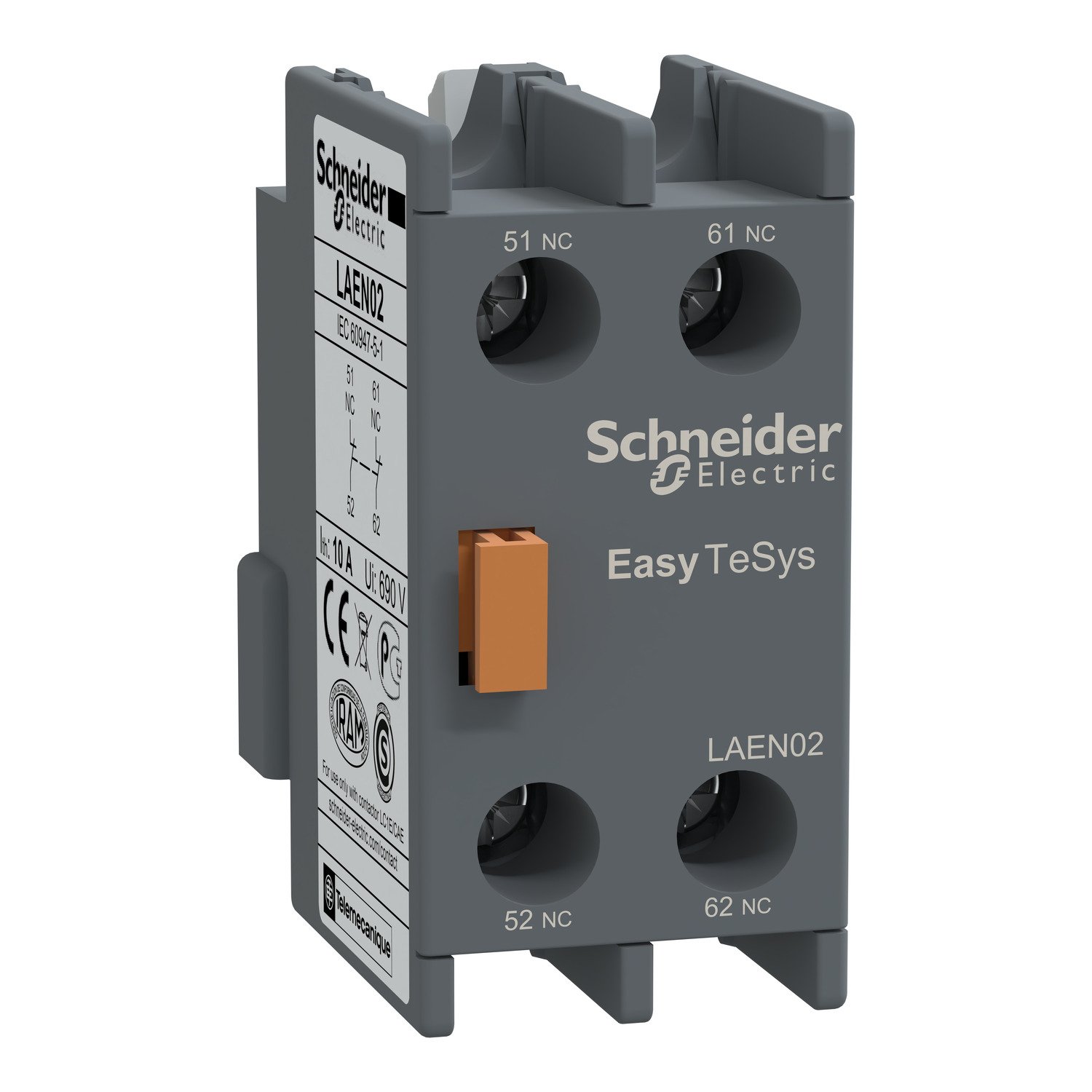

Schneider LAEN02 | Auxiliary contact block,Easy TeSys Control,2NC,for LC1E/CAE
Original price was: EGP 4,596.00.EGP 2,482.00Current price is: EGP 2,482.00.
Description
Schneider LAEN02 | Auxiliary contact block,Easy TeSys Control,2NC,for LC1E/CAE
Schneider LAEN02: Comprehensive Overview
Introduction
it is a high-quality auxiliary contact block designed for integration with Schneider Electric contactors. Known for its efficiency, reliability, and compact design, the LAEN02 enhances control panel operations by providing additional auxiliary functions.
This article delves into the technical specifications, features, applications, and benefits of it.
Technical Specifications
- Model Number: LAEN02
- Type: Auxiliary Contact Block
- Contacts Configuration: 2 Normally Closed (2NC) contacts
- Rated Voltage: Up to 690V AC
- Rated Current: 10A (AC-15 utilization category)
- Mounting Type: Front-mounted on compatible contactors
- Standards Compliance: Complies with IEC 60947-5-1 for auxiliary devices
Key Features
- Reliable Contact Configuration:
- Offers 2 Normally Closed (NC) contacts, ideal for specific interlocking or signaling requirements.
- Compact and Ergonomic Design:
- Occupies minimal space in control panels while providing maximum functionality.
- Durability:
- Engineered for longevity and consistent performance in demanding industrial environments.
- Ease of Installation:
- Designed for quick front-mounting on Schneider contactors.
- Safety and Standards Compliance:
- Meets international standards, ensuring safe and reliable operation.
Applications
it is utilized in a variety of settings, such as:
- Motor Control Circuits: Adding auxiliary functionality for signaling and interlocking.
- Industrial Automation Systems: Supporting enhanced control in automation processes.
- Power Distribution Systems: For additional monitoring or indication purposes.
- Process and Manufacturing Industries: Facilitating reliable control and safety mechanisms.
Benefits
- Enhanced Flexibility: Allows customization of control circuits for varied applications.
- Increased Safety: Ensures dependable auxiliary operations, reducing the risk of malfunctions.
- Long-Term Reliability: Built to withstand rigorous use in industrial setups.
- Compatibility: Designed for seamless integration with Schneider contactors, such as the LC1 series.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| range of product | Easy TeSys Control |
| product or component type | Auxiliary contact block |
| device application | Signalling |
| Device short name | LAEN |
| Colour | Grey (RAL 7011) |
| Range compatibility | EasyPact EasyPact TVS LC1E |
|---|---|
| Mounting location | Front |
| Auxiliary contacts operation | Instantaneous |
| Pole contact composition | 2 NC |
| [Ui] rated insulation voltage | 690 V - for control circuit conforming to IEC 60947-5-1 |
| [Ue] rated operational voltage | <= 690 V |
| [Ith] conventional free air thermal current | 8 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 100 A - 1 s 120 A - 500 ms 140 A - 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 10 Mcycles |
| Minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on energisation no overlap between NC and NO contact 1.5 ms on de-energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| net weight | 0.035 kg |
| Environmental characteristic | Standard environment |
|---|---|
| Standards | IEC 60947-5-1 |
| Product certifications | GOST |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 3000 m without derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.8 cm |
| Package 1 Width | 5 cm |
| Package 1 Length | 5.2 cm |
| Package 1 Weight | 34 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.8 kg |
| Warranty | 18 months |
|---|
