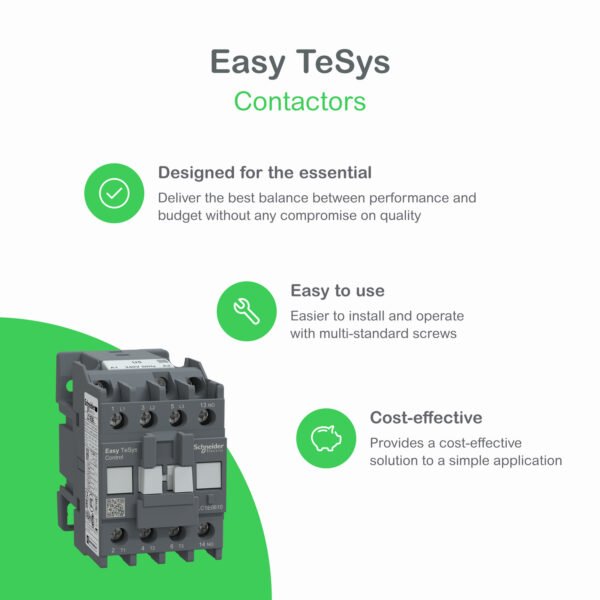

Schneider LC1E0610M5 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,6A,220V AC coil,50Hz,1NO auxiliary contact

The Schneider Electric LC1E0610M5 is part of the Easy TeSys Control series, offering a reliable and compact solution for controlling electrical circuits, particularly for motor control applications. This contactor is designed with efficiency and simplicity in mind, making it ideal for a wide range of industrial, commercial, and residential applications.

Specifications:

• Model: LC1E0610M5 Easy TeSys Contactor
• Type: 3-Pole (3 Normally Open Contacts)
• Rating: AC-3/AC-3e (motor use, with standard and enhanced efficiency options)
• Voltage Rating: Operates at ≤ 440 V
• Current Rating: Can handle up to 6 A
• Coil Voltage: 220 V AC, designed for 50 Hz operation.
• Auxiliary Contact: Comes with 1 Normally Open (NO) auxiliary contact.
• Size: Compact design suitable for tight spaces while providing high functionality.

Features:

1. Compact Design: The LC1E0610M5 is compact, making it ideal for applications where space is limited, such as small electrical panels.
2. Efficient Motor Control: With AC-3/AC-3e ratings, it provides efficient control of motors, both for standard and enhanced motor efficiency applications.
3. Easy Installation: Its straightforward design allows for simple installation into various electrical systems, saving time during setup.
4. Versatile Applications: Suitable for controlling a wide range of motors and non-inductive loads in various industrial and commercial environments.
5. Long Lifespan: Designed for durability, ensuring a long operational life and reliable performance over time.
6. Auxiliary Contact: The inclusion of a Normally Open (NO) auxiliary contact provides additional functionality for control and monitoring purposes.
7. Wide Voltage Compatibility: Operates within the standard voltage range of 220 V AC, offering flexibility in numerous electrical systems.

Applications:

• Motor Control: Primarily used to control small motors in industrial machinery, HVAC systems, and other equipment requiring motor operation.
• General Electrical Control: Ideal for controlling lighting, heating, and other non-inductive electrical loads.
• Automation Systems: Perfect for use in control panels, automation systems, and applications requiring automated switching of electrical equipment.
• Residential and Commercial Use: Can be utilized in smaller residential or commercial systems where reliable and efficient motor control is needed.

How It Works:

The LC1E0610M5 operates by energizing its 220 V AC coil to activate the contactor. This causes the 3 Normally Open (NO) contacts to close, allowing power to flow through the connected circuit. The auxiliary contact (NO) can be used for additional control or signaling purposes. The contactor can be used to start or stop motors, control lights, or manage other devices in the circuit.
