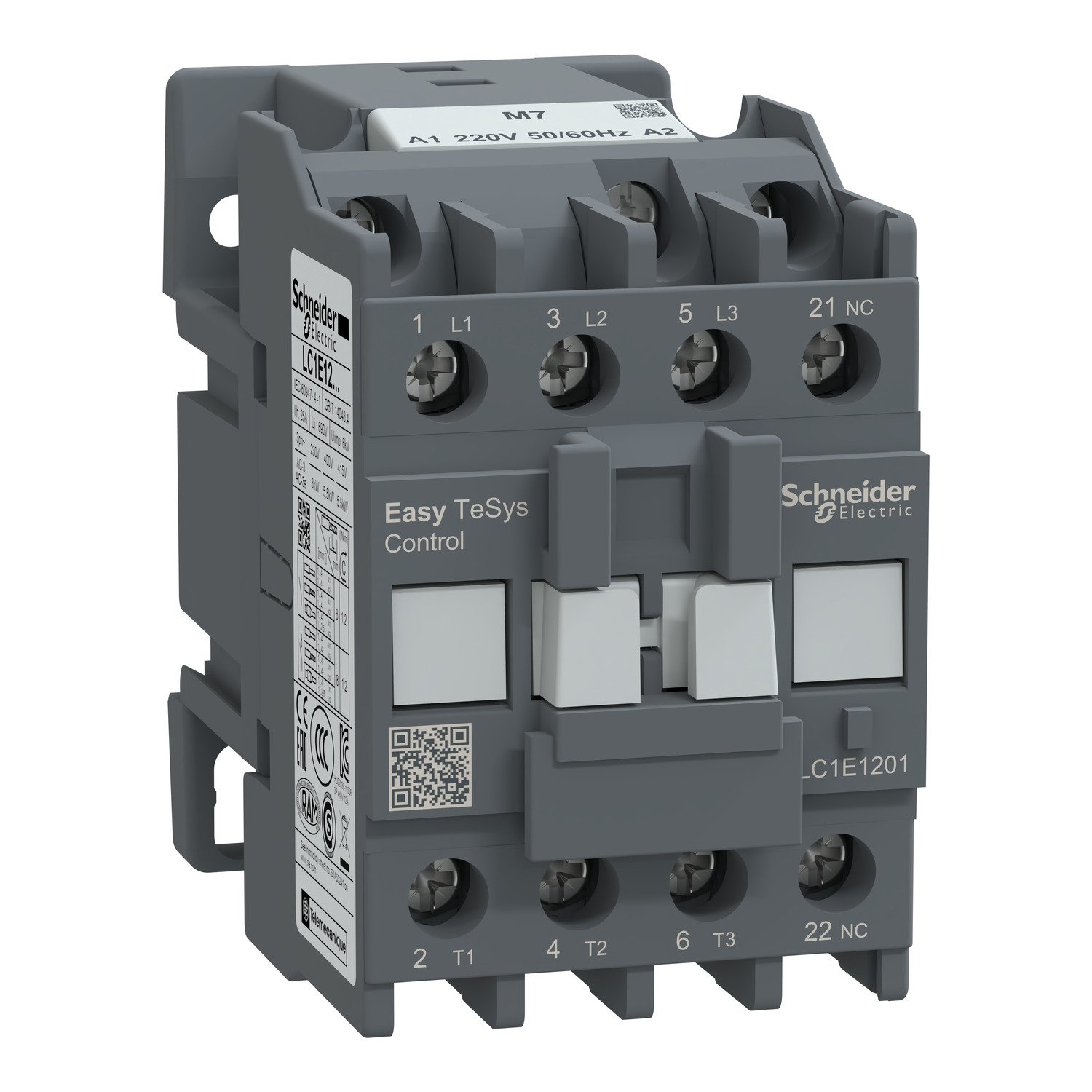

Schneider LC1E1201M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,12A,220V AC coil,50/60Hz,1NC auxiliary contact
Schneider LC1E1201M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,12A,220V AC coil,50/60Hz,1NC auxiliary contact
Original price was: EGP 13,327.00.EGP 7,197.00Current price is: EGP 7,197.00.
Description
Schneider LC1E1201M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,12A,220V AC coil,50/60Hz,1NC auxiliary contact
The Schneider Electric LC1E1201M7 is part of the Easy TeSys Control series, offering a powerful and compact solution for controlling electrical circuits, particularly for motor control applications. This contactor is ideal for use in a wide range of industrial, commercial, and residential settings, providing efficient and reliable operation with a variety of additional control options.
Specifications:
- Model: LC1E1201M7 Easy TeSys Contactor
- Type: 3-Pole (3 Normally Open Contacts)
- Rating: AC-3/AC-3e (motor control with both standard and enhanced motor efficiency options)
- Voltage Rating: Operates at ≤ 440 V
- Current Rating: Capable of handling up to 12 A
- Coil Voltage: 220 V AC, suitable for both 50 Hz and 60 Hz operation.
- Auxiliary Contact: Comes with 1 Normally Closed (NC) auxiliary contact, offering added flexibility for additional control functions.
- Size: Compact and space-saving design, perfect for systems requiring efficient and reliable performance in smaller installations.
Features:
- Powerful Motor Control: With a 12 A current rating and AC-3/AC-3e efficiency ratings, this contactor ensures reliable motor control in various applications, including industrial machinery and HVAC systems.
- Compact Design: Despite its high performance, the LC1E1201M7 has a compact form factor that allows for easy installation in tight spaces within control panels or systems.
- Enhanced Control: The inclusion of a Normally Closed (NC) auxiliary contact provides additional flexibility, allowing for further control or signaling functions in the circuit.
- Durable and Reliable: Built to last with minimal maintenance, this contactor is designed for durability, ensuring long-term, efficient operation even in demanding environments.
- Wide Voltage Compatibility: It operates at 220 V AC, making it compatible with a wide range of electrical systems and applications.
- Low Maintenance: Designed for low maintenance, it reduces operational downtime and helps minimize overall system maintenance costs.
Applications:
- Motor Control: Ideal for controlling motors in industrial machinery, HVAC systems, pumps, conveyors, and other motor-driven equipment.
- Lighting and Heating Systems: Can also be used to control lighting circuits, heating elements, and other non-inductive loads in residential or commercial environments.
- Automation Systems: Perfect for use in control panels and automation systems where efficient and reliable switching is required.
- General Electrical Applications: Suitable for a variety of applications requiring safe, efficient, and easy control of electrical circuits.
How It Works:
The LC1E1201M7 contactor works by energizing its 220 V AC coil, which activates the contactor, closing the 3 Normally Open (NO) contacts. This allows electrical current to flow through to the connected equipment, such as motors. Additionally, the Normally Closed (NC) auxiliary contact can be used for signaling or providing additional control within the system, ensuring smooth and efficient operation of the electrical circuit.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 12 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 12 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Motor power kW | 3 kW at 220...230 V AC 50/60 Hz 5.5 kW at 380...400 V 5.5 kW at 415 V 5.5 kW at 440 V 7.5 kW at 500 V 7.5 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 25 A (at 55 °C) for power circuit |
| Irms rated making capacity | 120 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 96 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 105 A 40 °C - 10 s for power circuit 61 A 40 °C - 60 s for power circuit 30 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 25 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Power dissipation per pole | 0.36 W AC-3 1.6 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 1400000 cycles AC-3 300000 cycles AC-1 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing 4...19 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end |
| Tightening torque | Power circuit: 1.2 N.m Control circuit: 1.2 N.m |
| Auxiliary contact composition | 1 NC |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Mounting support | Plate DIN rail |
| Standards | IEC 60947-1 IEC 60947-5-1 IEC 60947-4-1 |
|---|---|
| Product certifications | CE EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (7 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms) |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
| Product weight | 0.3 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.600 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 7.500 cm |
| Package 1 Weight | 348.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.835 kg |
