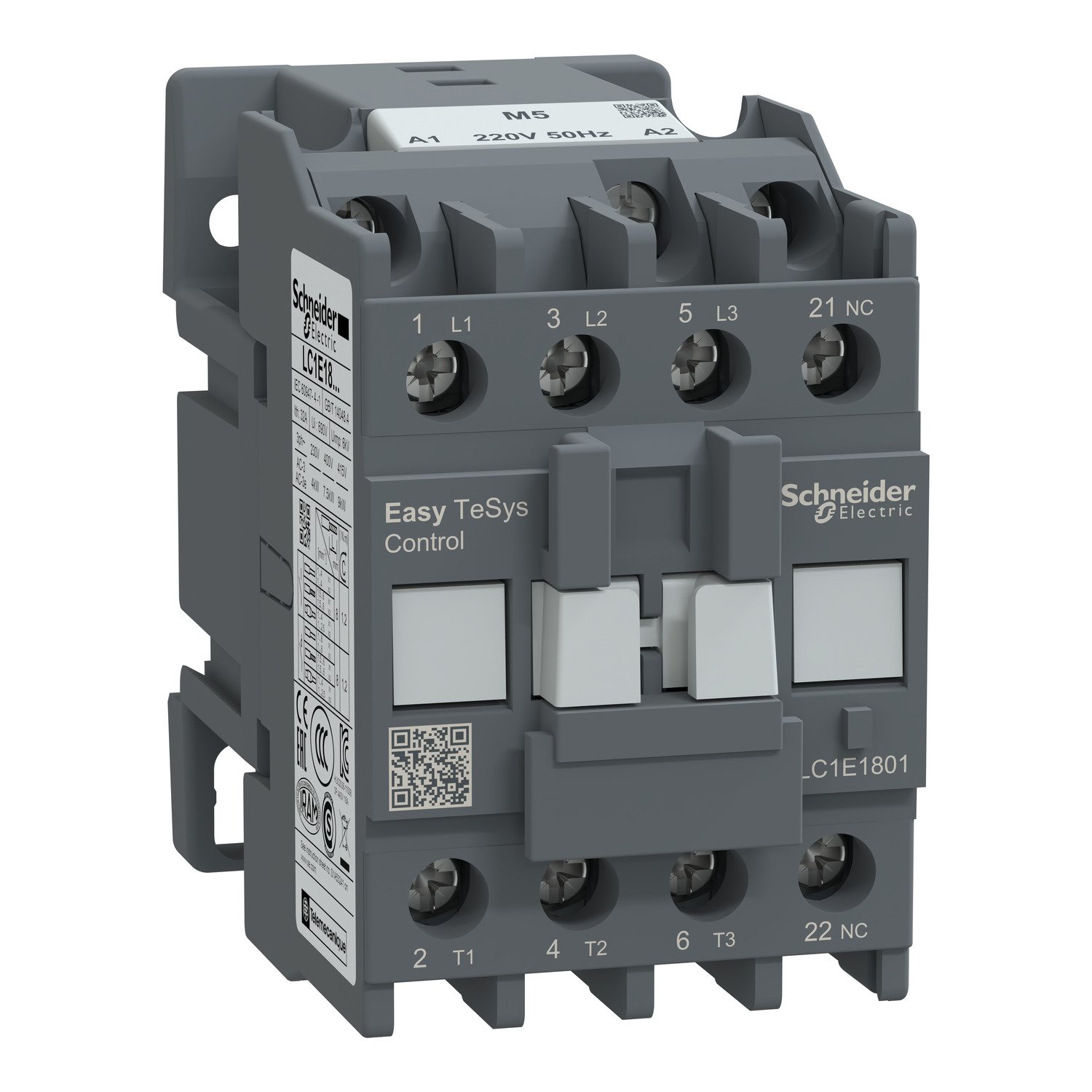

Schneider LC1E1801M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,18A,220V AC coil,50Hz,1NC auxiliary contact

Product Code:

LC1E1801M5

Tags:

18A, 1NC auxiliary contact, 220V AC coil, 3P(3NO), 50Hz, AC-3, APC Essential SurgeArrest 1 Outlet 2 USB Ports Black 230V Germany, Contactor, EasyPact TVS

Brand: Schneider Electric

Schneider LC1E1801M5| Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,18A,220V AC coil,50Hz,1NC auxiliary contact

Name: Schneider LC1E1801M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,&lt;=440V,18A,220V AC coil,50Hz,1NC auxiliary contact
Brand: Schneider Electric
SKU: LC1E1801M5
Availability: OutOfStock

<span data-mce-type="bookmark" style="width: 0px;overflow: hidden;line-height: 0" class="mce_SELRES_start"></span>

Schneider LC1E1801M5 | EasyPact TVS Contactor, 3P (3NO), AC-3, ≤440V, 18A, 220V AC Coil, 50Hz, 1NC Auxiliary Contact

1. Introduction

The Schneider LC1E1801M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, designed for motor control and power switching in industrial applications. It supports AC-3 applications up to 440V with a current rating of 18A and operates on a 220V AC coil (50Hz). Additionally, it includes a 1NC (Normally Closed) auxiliary contact, making it ideal for enhanced control and automation needs.

2. Key Features

Rated Current: 18A (AC-3)
Voltage Rating: ≤440V
Number of Poles: 3P (3 Normally Open – 3NO)
Auxiliary Contact: 1NC (Normally Closed)
Coil Voltage: 220V AC, 50Hz
Compact and Robust Design
High Electrical & Mechanical Endurance
Compatible with Overload Relays for motor protection
Quick and Easy Installation

3. Technical Specifications

Product Series: EasyPact TVS
Utilization Category: AC-3 (Motor Control Applications)
Rated Current (Ie): 18A
Operating Voltage: ≤440V
Coil Voltage: 220V AC, 50Hz
Number of Poles: 3P (3NO)
Auxiliary Contact Configuration: 1NC
Mechanical Durability: Up to 10 million operations
Electrical Durability: Up to 1 million operations (AC-3)
Operating Temperature: -5°C to +55°C
Compliance Standards: IEC 60947-4-1

4. Applications

The LC1E1801M5 contactor is widely used in industrial and commercial applications, including:

Motor Control – Ensures smooth and safe motor operation
HVAC Systems – Controls air conditioning, fans, and compressors
Pumping Systems – Manages water and fluid pumps
Lighting Control – Suitable for high-power lighting circuits
Industrial Automation – Integrates into automated control panels

5. Benefits

Reliable and Efficient Performance – Designed for long-term industrial use
Compact & Space-Saving Design – Ideal for electrical control panels
Versatile Application Range – Suitable for multiple industrial needs
Quick Installation & Maintenance – Reduces downtime
Built-in 1NC Auxiliary Contact – Enhances control and monitoring functions
Seamless Compatibility – Works with Schneider overload relays for motor protection

brands	Schneider Electric

Main
Range	Easy TeSys
Range of product	Easy TeSys Control
Product or component type	Contactor
Device short name	LC1E
Contactor application	Motor control Resistive load
Utilisation category	AC-3 AC-3e AC-1
Poles description	3P
[Ue] rated operational voltage	Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current	18 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 18 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 32 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage	220 V AC 50 Hz

Complementary
Motor power kW	4 kW at 220...230 V AC 50/60 Hz 7.5 kW at 380...400 V 9 kW at 415 V 9 kW at 440 V 10 kW at 500 V 10 kW at 660...690 V
Pole contact composition	3 NO
[Ith] conventional free air thermal current	32 A (at 55 °C) for power circuit
Irms rated making capacity	180 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity	144 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current	145 A 40 °C - 10 s for power circuit 84 A 40 °C - 60 s for power circuit 40 A 40 °C - 600 s for power circuit
Associated fuse rating	10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 35 A gG at <= 690 V coordination type 1 for power circuit
Average impedance	2.5 mOhm - Ith 32 A 50 Hz for power circuit
Power dissipation per pole	0.81 W AC-3 2.6 W AC-1
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1
Overvoltage category	III
pollution degree	3
[Uimp] rated impulse withstand voltage	6 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability	10000000 cycles
Electrical durability	300000 cycles AC-1 1200000 cycles AC-3
Control circuit type	AC at 50 Hz
Control circuit voltage limits	0.85...1.1 Uc (-5…55 °C):operational 50 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50 Hz
Inrush power in VA	95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA	8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	2…3 W for control circuit
Operating time	12...22 ms on closing 4...19 ms on opening
Maximum operating rate	1800 cyc/h 60 °C
Connections - terminals	Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end
Tightening torque	Power circuit: 1.2 N.m Control circuit: 1.2 N.m
Auxiliary contact composition	1 NC
Minimum switching voltage	17 V for control circuit
Minimum switching current	5 mA for control circuit
Insulation resistance	> 10 MOhm for control circuit
Non-overlap time	1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact
Mounting support	Plate DIN rail

Environment
Standards	IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1
Product certifications	EAC CE
IP degree of protection	IP2X conforming to IEC 60529
Protective treatment	TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Permissible ambient air temperature around the device	-20…70 °C at Uc -60…80 °C storage -5…55 °C operation
Operating altitude	3000 m without derating
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (7 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms)
Height	74 mm
Width	45 mm
Depth	80 mm
Net weight	0.3 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	7.700 cm
Package 1 Length	8.900 cm
Package 1 Weight	339.800 g

Contractual warranty
Warranty	18 months
