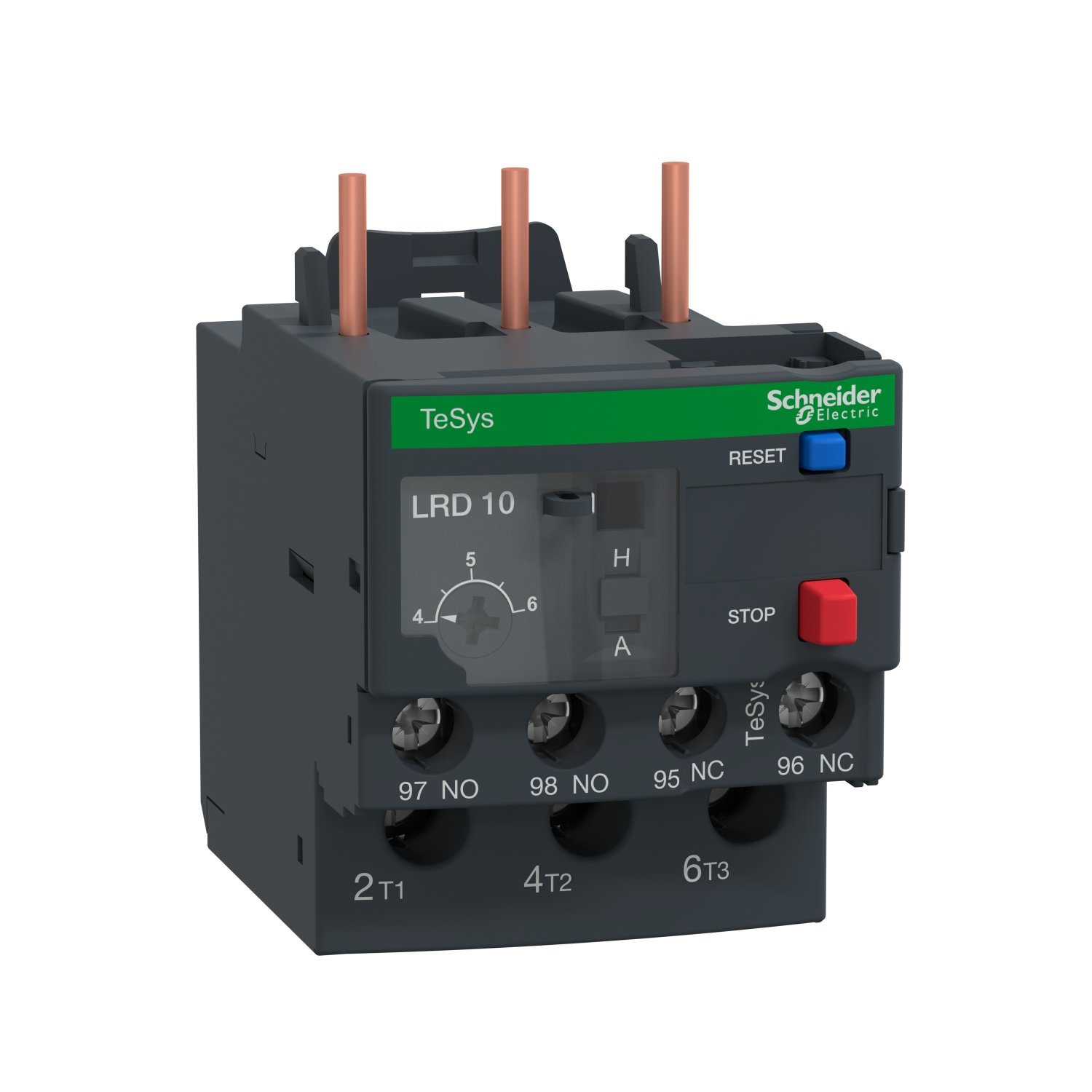

Schneider LRD10 | TeSys LRD thermal overload relays – 4…6 A – class 10A
Schneider LRD10 Description
Introduction to Schneider LRD10
it is a versatile and reliable electronic component designed to protect electrical motors from overload. It belongs to the TeSys series of motor starters manufactured by Schneider Electric, a global leader in energy management and automation solutions.
Features and Specifications
- Dimensions and Weight: The Schneider LRD10 is compactly designed, with dimensions of [insert dimensions] and a lightweight build, making it easy to install in various electrical setups.
- Voltage Rating: It is rated for voltage up to [insert voltage rating], ensuring compatibility with a wide range of electrical systems.
- Current Rating: With a current rating of [insert current rating], the LRD10 can effectively handle the power requirements of most motors.
- Operating Temperature: This device operates efficiently within a temperature range of [insert temperature range], making it suitable for diverse environmental conditions.
- Mounting Style: The LRD10 features a convenient DIN rail mounting style, facilitating easy installation in control panels and switchboards.
- Enclosure Material: Constructed from durable materials, the enclosure of the LRD10 ensures protection against dust, moisture, and other environmental factors.
Application Areas
it finds extensive applications in various industries and settings, including:
- Industrial Automation: It is commonly used in industrial machinery and automation systems to safeguard motors against overload conditions.
- HVAC Systems: The LRD10 provides reliable protection for motors used in heating, ventilation, and air conditioning (HVAC) systems, ensuring uninterrupted operation.
- Commercial and Residential Electrical Panels: Whether in commercial buildings or residential complexes, the LRD10 is an essential component in electrical panels to prevent motor damage.
Advantages of Using Schneider LRD10
The key advantages of incorporating it in electrical setups include:
- Reliable Overload Protection: The LRD10 offers dependable protection against motor overload, reducing the risk of equipment damage and downtime.
- Easy Installation: Its compact design and DIN rail mounting style simplify the installation process, saving time and effort for installers.
- Versatile Compatibility: With its wide voltage and current ratings, the LRD10 is compatible with a variety of motor types and electrical systems.
Comparison with Similar Products
In comparison to other overload protection devices, it stands out due to its robust build quality, extensive compatibility, and user-friendly design. While other products may offer similar features, the reputation and reliability of Schneider Electric set the LRD10 apart from the competition.
Installation Process
Installing the it is straightforward and requires basic electrical knowledge. Follow these steps for a hassle-free installation:
- Choose a suitable location within the electrical panel for mounting the LRD10.
- Ensure proper wiring connections according to the manufacturer’s guidelines.
- Secure the device in place using the DIN rail mounting mechanism.
- Test the functionality of the LRD10 by simulating overload conditions and verifying its response.
Maintenance Tips
To maintain optimal performance and longevity of ti consider the following maintenance tips:
- Regular Inspection: Periodically inspect the device for any signs of damage or wear.
- Cleanliness: Keep the surrounding area clean to prevent dust and debris from accumulating on the device.
- Calibration: If necessary, calibrate the LRD10 according to the manufacturer’s recommendations to ensure accurate overload protection.
Common Troubleshooting Issues
Despite its reliability, it may encounter occasional issues such as:
- False Tripping: In some cases, the device may trip unnecessarily due to transient voltage spikes or improper wiring.
- Overheating: Overloading or prolonged operation at high temperatures can lead to overheating issues.
- Mechanical Failure: Like any electronic component, the LRD10 may experience mechanical failures over time, requiring replacement.
Customer Reviews and Feedback
Customers who have used the Schneider LRD10 praise its reliability, ease of installation, and effectiveness in protecting motors from overload. Positive feedback highlights its robust construction and compatibility with various applications.
Warranty Information
Schneider Electric offers a [insert warranty duration] warranty on the LRD10, covering defects in materials and workmanship. For detailed warranty terms and conditions, refer to the product documentation provided by the manufacturer.
Where to Buy
it is available for purchase through authorized distributors, electrical suppliers, and online retailers. Ensure to buy from reputable sources to guarantee the authenticity and quality of the product.
Conclusion
In conclusion, it is a dependable solution for overload protection in electrical motor applications. Its compact design, wide compatibility, and reliable performance make it an essential component in industrial, commercial, and residential settings. By investing in the Schneider LRD10, users can safeguard their equipment and ensure uninterrupted operation.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys TeSys Deca |
|---|---|
| Product name | TeSys LRD TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D09 LC1D32 LC1D38 LC1D12 LC1D18 LC1D25 |
| Network type | DC AC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 4…6 A |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 |
| Network frequency | 0...400 Hz |
|---|---|
| Mounting support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Permissible current | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type | Red push-button: stop Blue push-button: reset |
| Temperature compensation | -20…60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid without cable end |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals |
| Height | 66 mm |
| Width | 45 mm |
| Depth | 70 mm |
| Net weight | 0.124 kg |
| Climatic withstand | conforming to IACS E10 |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495 |
| Product certifications | IEC UL CSA CCC EAC BV RINA DNV-GL LROS (Lloyds register of shipping) ATEX INERIS UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 7.200 cm |
| Package 1 Length | 4.900 cm |
| Package 1 Weight | 138.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.648 kg |
| Warranty | 18 months |
|---|
