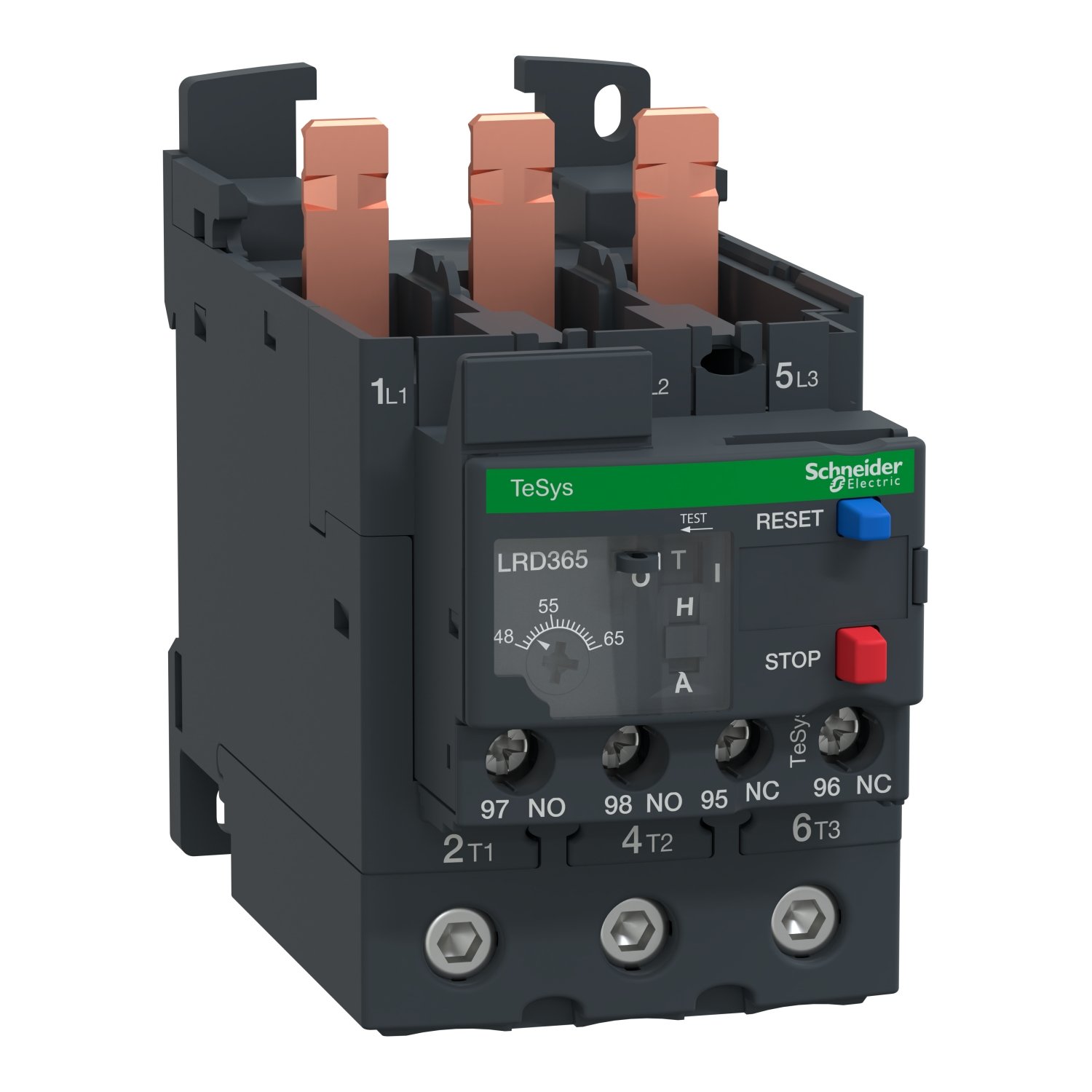

Schneider LRD365 TeSys: Enhancing Motor Protection Efficiency
Introduction to Schneider LRD365
is a cutting-edge motor protection relay designed to safeguard electrical motors against overload, phase loss, and other critical faults. Developed by Schneider Electric, a global leader in energy management and automation solutions, LRD365 offers advanced features and capabilities to ensure optimal motor performance and longevity.
History and Background of Schneider Electric
Schneider Electric has been at the forefront of innovation in the electrical industry for over a century. Founded in 1836, the company has evolved into a multinational corporation renowned for its expertise in energy management, industrial automation, and sustainable solutions. With a commitment to sustainability and innovation, Schneider Electric continues to revolutionize the way we manage and optimize energy resources.
Understanding Motor Protection with LRD365
Motor protection is essential for ensuring the reliable operation of electrical motors in various industrial and commercial applications. provides comprehensive protection by monitoring key parameters such as current, voltage, and temperature to detect abnormalities and initiate timely protective actions.
Features and Specifications of Schneider LRD365
offers a wide range of features and specifications tailored to meet the diverse needs of motor protection applications. With a current range of up to 100A and voltage ratings ranging from 24V to 690V, it is suitable for a wide range of motor sizes and configurations. Its thermal overload protection mechanism ensures reliable operation by preventing overheating and damage to the motor windings.
Installation and Setup Guide for LRD365
Installing and configuring it is a straightforward process. The relay can be easily mounted on a DIN rail or panel using standard mounting hardware. Wiring connections are clearly labeled for easy identification, and the configuration can be adjusted to suit specific application requirements using intuitive controls.
Applications and Industries Utilizing Schneider LRD365
is widely used in various industries and applications, including industrial machinery, HVAC systems, pumping stations, and more. Its robust design and reliable performance make it the preferred choice for motor protection in critical infrastructure and equipment.
Advantages of Using Schneider LRD365
The adoption of it offers numerous benefits, including enhanced motor reliability, improved operational efficiency, and cost savings through reduced downtime and maintenance expenses. By proactively monitoring and protecting motors against faults, LRD365 helps organizations maximize productivity and minimize risk.
Case Studies and Success Stories
Real-world examples highlight the effectiveness of Schneider LRD365 in safeguarding motors and optimizing performance. Case studies showcase how organizations across different industries have benefited from the reliability and efficiency of it in their operations.
Comparison with Other Motor Protection Relays
stands out from other motor protection relays due to its superior performance, advanced features, and cost-effectiveness. A comparative analysis demonstrates the value proposition of LRD365 in terms of functionality, reliability, and overall return on investment.
Maintenance and Troubleshooting Tips for LRD365
Regular maintenance and inspection are crucial for ensuring the continued performance and reliability of it. Common troubleshooting issues and solutions are outlined to assist users in addressing potential issues and maximizing the lifespan of the relay.
Future Developments and Innovations in Motor Protection Technology
As technology continues to evolve, the future of motor protection holds exciting possibilities. Schneider Electric remains committed to innovation and development, continually enhancing the capabilities of it and exploring new avenues for improving motor protection efficiency.
Conclusion
represents a paradigm shift in motor protection technology, offering unparalleled reliability, performance, and efficiency. With its advanced features, intuitive design, and proven track record, LRD365 is the ideal solution for safeguarding electrical motors in various industrial and commercial applications.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys TeSys Deca |
|---|---|
| Product name | TeSys LRD TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D65A LC1D50A |
| Network type | DC AC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 48…65 A |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 |
| Network frequency | 0...400 Hz |
|---|---|
| Mounting support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Permissible current | 0.95 A at 380 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type | Red push-button: stop Blue push-button: reset |
| Temperature compensation | -20…60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible without cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible with cable end Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² solid without cable end |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 5 N.m - on EverLink BTR screw connectors |
| Height | 70 mm |
| Width | 55 mm |
| Depth | 123 mm |
| Net weight | 0.375 kg |
| Climatic withstand | conforming to IACS E10 |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 4 gn conforming to IEC 60068-2-6 |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495 |
| Product certifications | IEC UL CSA CCC EAC DNV-GL RMRS EU-RO MR LROS (Lloyds register of shipping) ATEX INERIS UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.200 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 14.000 cm |
| Package 1 Weight | 394.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 13 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.453 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 208 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 97.732 kg |
| Warranty | 18 months |
|---|
