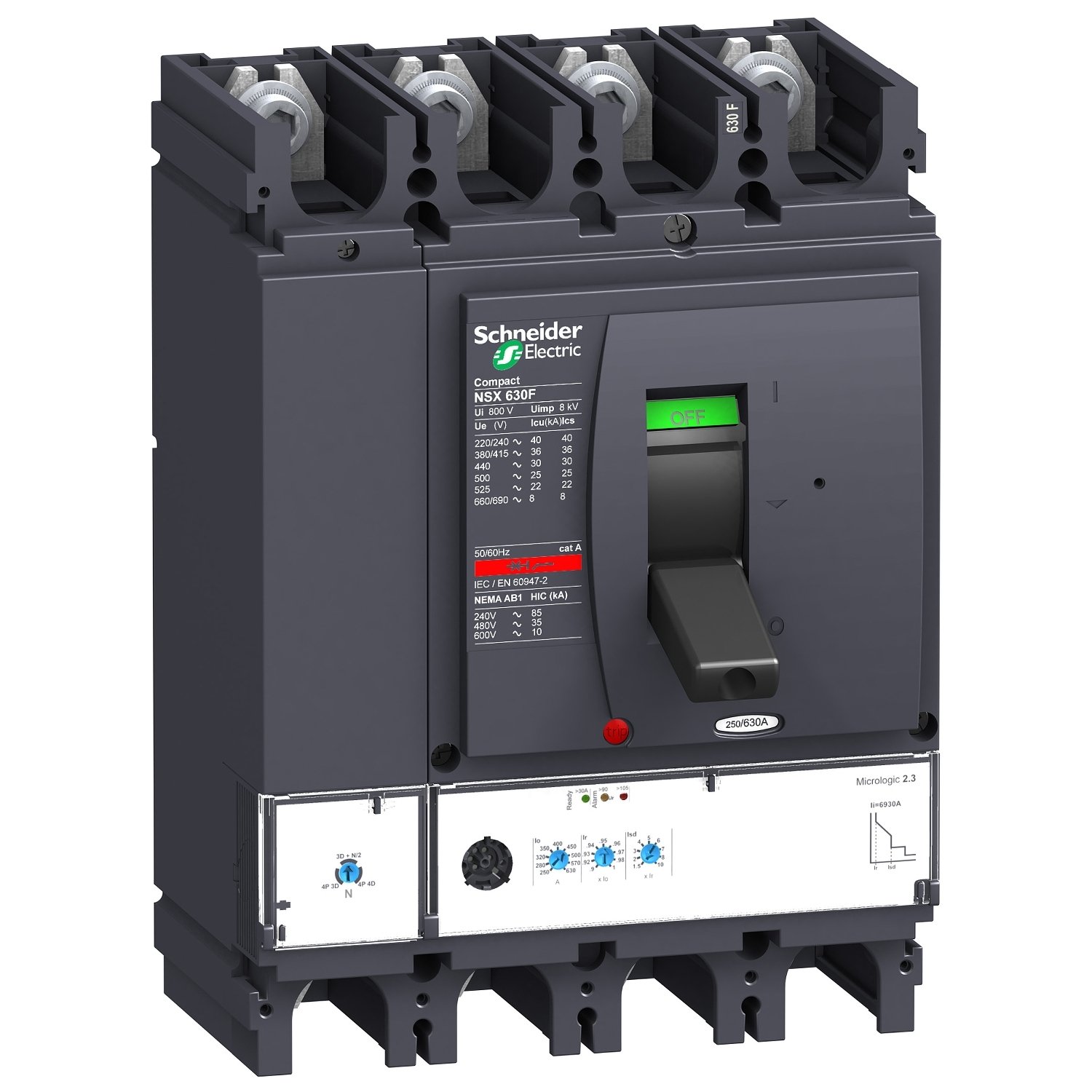

Schneider LV432877 | circuit breaker ComPact NSX630F, 36 kA at 415 VAC, MicroLogic 2.3 trip unit 630 A, 4 poles 4d

Technical Specifications:

• Type: Circuit Breaker

• Model: Schneider LV432877 | ComPact NSX630F

• Nominal Current: 630 Amps

• Maximum Breaking Capacity: 36 kA at 415 VAC

• Number of Poles: 4 Poles

• Trip Unit: MicroLogic 2.3 (Electronic Trip Unit)

• Short-Circuit Protection: Capable of withstanding short-circuit currents up to 36 kA at 415 VAC, providing effective protection for systems against fault currents.

Features:

1. Advanced MicroLogic Trip Unit:
   The MicroLogic 2.3 electronic trip unit enhances the performance of the circuit breaker by offering comprehensive protection. It features adjustable settings for overload protection, short-circuit protection, and ground fault protection, making it ideal for flexible, customized operation in various electrical environments.

2. High Short-Circuit Withstand Capacity:
   With a breaking capacity of up to 36 kA at 415 VAC, this circuit breaker is designed to handle large fault currents, making it well-suited for environments with heavy electrical loads and the potential for significant short circuit conditions.

3. 4-Pole Configuration:
   The 4-pole design is ideal for three-phase systems that include a neutral, ensuring effective protection for all phases and the neutral conductor, allowing for comprehensive disconnection of the entire system during fault conditions.

4. Durability and Long-Lasting Performance:
   Designed with high-quality materials, the ComPact NSX630F circuit breaker offers durability and a long service life, even under harsh and demanding conditions, ensuring reliable operation for many years.

5. Energy Efficiency:
   With its advanced protection settings, the breaker helps prevent energy loss due to overloads and electrical faults, contributing to the overall energy efficiency of the electrical system.

Applications:

• Industrial Systems:
  The Schneider LV432877 circuit breaker is ideal for protecting industrial electrical systems, including machinery, production lines, and large motors, where reliable and efficient protection is critical to maintaining system integrity and safety.

• Power Distribution Systems:
  This breaker is commonly used in electrical distribution networks, ensuring that circuits are protected against overloads, short circuits, and other electrical faults, thus maintaining the stability and reliability of the power grid.

• Commercial Buildings:
  Suitable for use in commercial infrastructures such as office buildings, shopping centers, and hospitals, the ComPact NSX630F provides protection for critical electrical systems, ensuring safety across the facility.

• Data Centers and Critical Infrastructure:
  In environments like data centers, where electrical supply is vital for continuous operations, this circuit breaker guarantees reliable protection, helping prevent costly downtime or damage to sensitive equipment.

• Motor Control Systems:
  This breaker is ideal for protecting motor-driven equipment such as pumps, compressors, and conveyors, ensuring these systems are safe from electrical overloads and faults.
