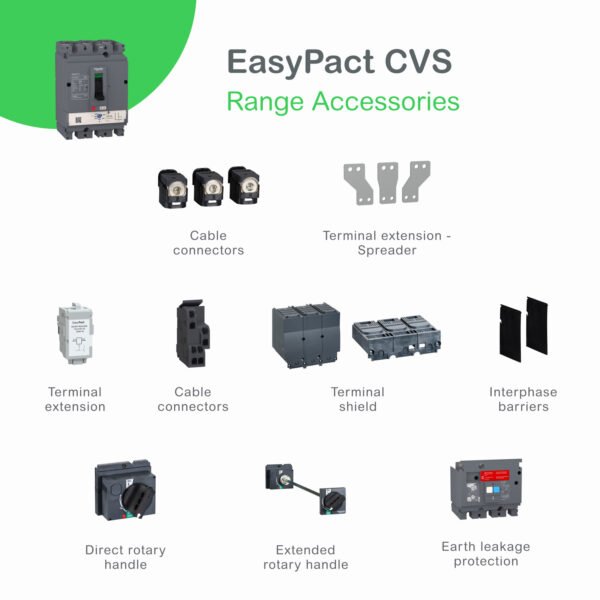

Schneider LV510302 | circuit breaker EasyPact CVS100B, 25 kA at 415 VAC, 32 A rating thermal magnetic TM-D trip unit, 3P 3d
Schneider LV510302 | circuit breaker EasyPact CVS100B, 25 kA at 415 VAC, 32 A rating thermal magnetic TM-D trip unit, 3P 3d
Original price was: EGP 1,102,813.00.EGP 656,174.00Current price is: EGP 656,174.00.
Description
Schneider LV510302 | circuit breaker EasyPact CVS100B, 25 kA at 415 VAC, 32 A rating thermal magnetic TM-D trip unit, 3P 3d
Technical Specifications
- Model: Schneider LV510302 | EasyPact CVS100B
- Rated Current: 32A
- Breaking Capacity: 25 kA at 415V AC
- Poles: 3P (Three-Pole)
- Trip Unit Type: Thermal-Magnetic TM-D
- Voltage Rating: 415V AC
- Mounting Type: Fixed
- Protection Type: Overload & Short Circuit
- Standard Compliance: IEC 60947-2
- Operating Temperature: -25°C to 70°C

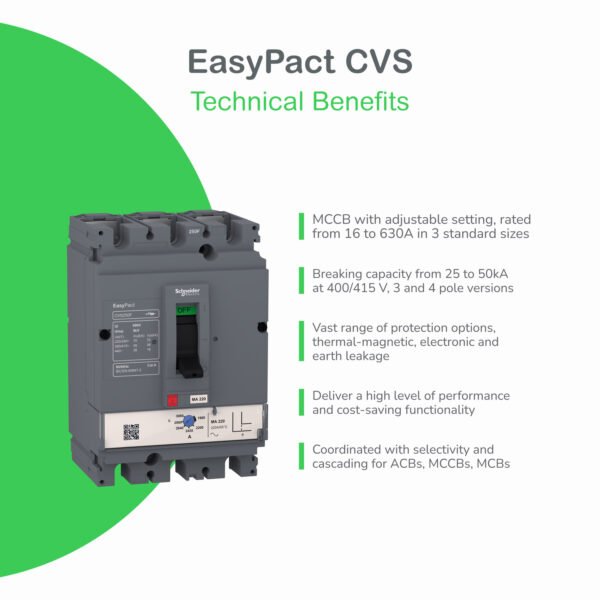

Key Features
- High-Performance Protection
- Thermal-Magnetic TM-D Trip Unit offers dual protection:
Thermal protection for overloads.
Magnetic protection for short circuits. - 25 kA breaking capacity at 415V AC ensures safety in demanding electrical environments.
- Thermal-Magnetic TM-D Trip Unit offers dual protection:
- Durability & Reliability
- Built to withstand harsh conditions in industrial and commercial applications.
- Long lifespan with minimal maintenance requirements.
- Ease of Installation & Use
- Three-pole (3P) design for effective three-phase power distribution.
- Compact and user-friendly design for seamless integration into electrical panels.
- Compliance with Safety Standards
- Certified under IEC 60947-2, ensuring global safety and performance reliability.
Applications
The Schneider LV510302 | EasyPact CVS100B circuit breaker is ideal for various applications, including:
Industrial Facilities – Protecting machinery and electrical panels from faults.
Commercial Buildings – Ensuring safe and efficient power distribution.
Residential Installations – Providing enhanced protection for home electrical circuits.
Power Distribution Systems – Used in switchgear and distribution boards.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | EasyPact |
|---|---|
| Range of product | EasyPact CVS100...250 |
| product name | EasyPact CVS |
| Device short name | CVS100B |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | Without |
| [In] rated current | 32 A at 40 °C |
| network type | AC |
| Utilisation category | Category A |
| [Icu] Breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 32 A at 40 °C |
| Protection type | Overload protection (thermal) Short-circuit protection (magnetic) |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
|---|---|
| Network frequency | 50/60 Hz |
| Breaking capacity code | B |
| [Ics] rated service breaking capacity | 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 30000 cycles |
| Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Control type | Toggle |
| Thermal protection adjustment range | 22.4…32 A |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 0.7...1 x In |
| Long time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| Instantaneous pick-up adjustment range | 400 A |
| Contact position indicator | Yes |
| Mounting support | Backplate |
| Mounting mode | Fixed |
| Upside connection | Front |
| Downside connection | Front |
| Connections - terminals | Screw connection |
| Connection pitch | 35 mm |
| Compatibility code | CVS100 |
| Width | 105 mm |
| Depth | 86 mm |
| Height | 161 mm |
| Product weight | 1.5 kg |
| Standards | IEC 60947-2 EN 60947-2 |
|---|---|
| Product certifications | IEC GOST |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 1.702 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 14.036 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 124.288 kg |
