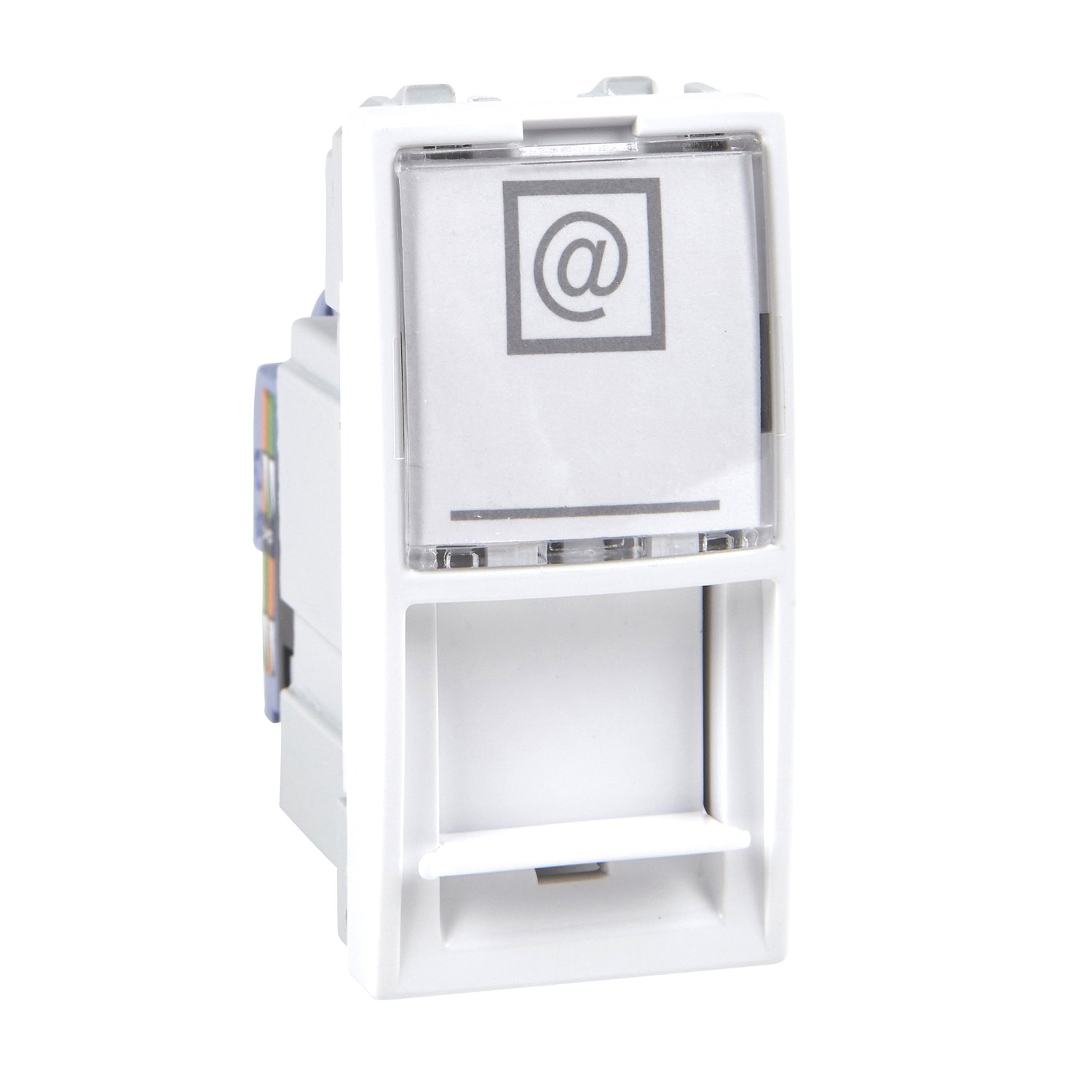

Schneider MGU3.414.18 | Unica – 1 RJ45 socket (S-One) – 1 m – Cat.6, UTP – white
Product Overview: Schneider MGU3.414.18
The Schneider MGU3.414.18 is a high-performance RJ45 data socket from the Unica series, designed to support fast and stable data connections for residential, commercial, and industrial applications. This model features a Category 6 (Cat.6) unshielded twisted pair (UTP) connector for reliable Ethernet communication.
Key Features
-
Product Type: RJ45 socket (S-One)
-
Series: Unica
-
Model Reference: MGU3.414.18
-
Connectivity Standard: Cat.6
-
Cable Type: U/UTP (Unshielded Twisted Pair)
-
Number of Modules: 1 module
-
Color: White
-
Form Factor: 1 gang
-
Mounting: Clip-in mechanism for easy installation
-
Material: ASA + PC (durable thermoplastic)
-
Data Transmission Frequency: Up to 250 MHz
Applications
-
Home Networks:
-
Ideal for high-speed internet and data connectivity in living rooms, bedrooms, and home offices.
-
-
Commercial Buildings:
-
Suitable for office environments, conference rooms, and data points in open workspaces.
-
-
Institutional Use:
-
Reliable for educational institutions, libraries, and public buildings requiring consistent network access.
-
Advantages
-
High-Speed Performance:
-
Supports reliable Ethernet and network connectivity for modern applications.
-
-
Easy to Install:
-
Modular design with clip-in fixing allows for fast installation into Unica frames.
-
-
Sleek and Clean Design:
-
Finished in white to blend with a wide range of interior decors.
-
-
Durability:
-
Made from high-quality, impact-resistant thermoplastic.
-
-
Flexibility:
-
Compatible with standard Unica mechanisms and installation systems.
-
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Unica |
|---|---|
| Aesthetic name | Unica (standard aesthetic) |
| Product or component type | Data socket |
| Device presentation | Mechanism |
| Colour tint | White (RAL 9003) |
| Data socket type | RJ45 8 contact(s) Cat.6 < 250 MHz |
| Provided equipment | Label holder Protective flap |
| Communication network type | 1000BASE-TX |
|---|---|
| Communication port protocol | ATM 1200 Mbps |
| Number of modules | 1 module |
| Socket number | 1 |
| Type of footprint | Infraplus |
| Connector type | S-One |
| Cable shielding type | U/UTP |
| Organization of wire | Unshielded twisted pair |
| Connections - terminals | Click |
| Fixing mode | Clip-in |
| Installation direction | Straight |
| Material | ASA + PC: mechanism cover |
| Depth | 36 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Embedding depth | 25 mm |
| IP degree of protection | IP40 |
|---|---|
| IK degree of protection | IK01 |
| Ambient air temperature for operation | 15…30 °C |
| Ambient air temperature for storage | 0…35 °C |
| Environmental characteristic | Petrol Acetone Window-cleaning fluid UV resistant Oil Bleach Alcohol Liquid soap |
| Standards | ISO 8877 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.1 cm |
| Package 1 Width | 6.1 cm |
| Package 1 Length | 7.4 cm |
| Package 1 Weight | 20 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.6 cm |
| Package 2 Width | 11.4 cm |
| Package 2 Length | 24.6 cm |
| Package 2 Weight | 252 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 30 cm |
| Package 3 Width | 40 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 8.263 kg |
| Warranty | 18 months |
|---|
