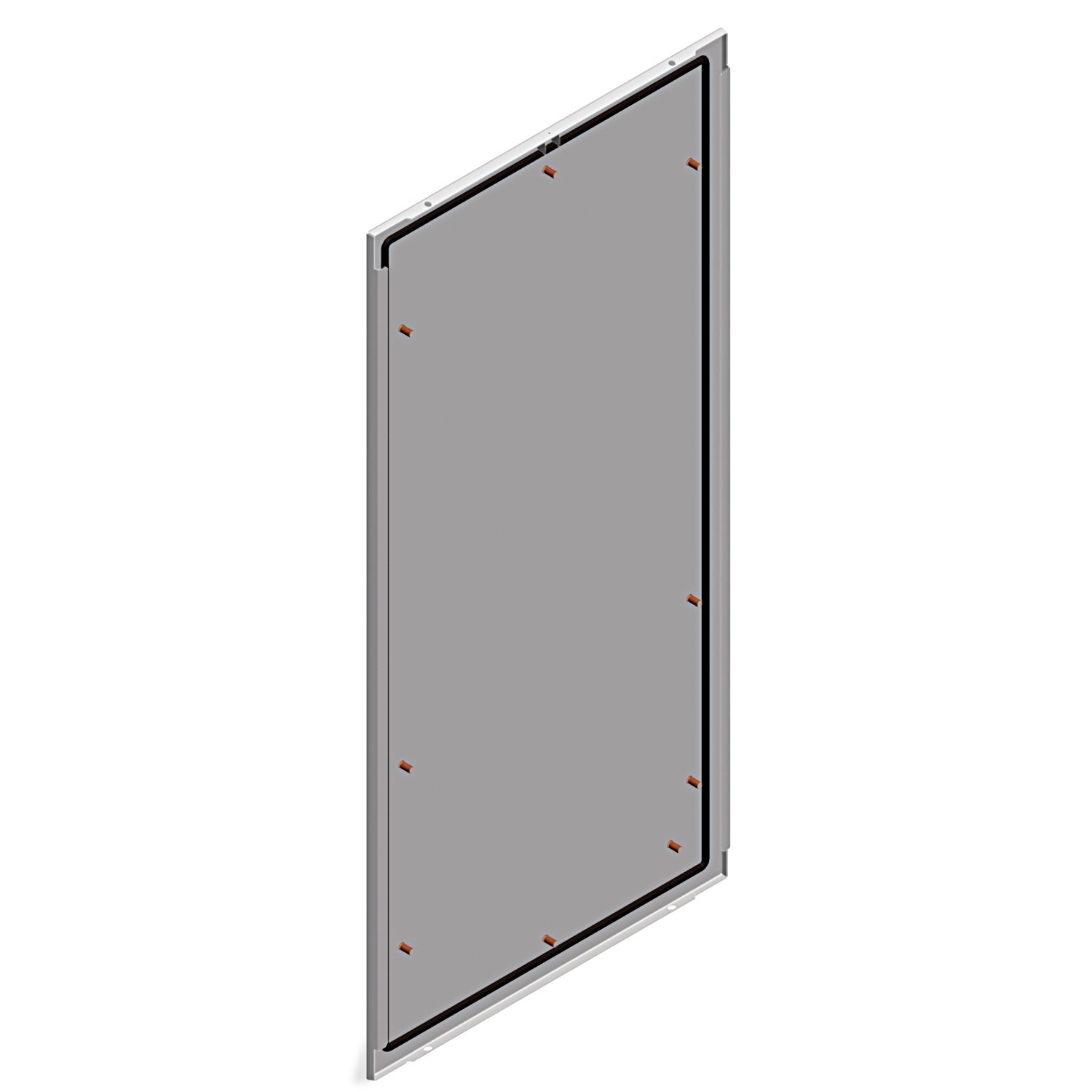

Schneider NSYBP2012 | Spacial SF rear panel external fixing – 2000×1200 mm

Specifications

The Schneider NSYBP2012 is a rear panel designed for use with the Spacial SF modular enclosure system. With dimensions of 2000×1200 mm, it is built to provide robust enclosure sealing and protection, particularly for larger cabinets. This panel is externally fixed, making installation and maintenance easier without accessing the internal compartment.

• Product Reference: NSYBP2012

• Product Type: Rear Panel with External Fixing

• System Compatibility: Schneider Spacial SF enclosures

• Dimensions: Height – 2000 mm, Width – 1200 mm

• Material: Steel

• Finish: Painted or galvanized (depending on variant)

• Fixing Type: External fixing (from the outside of the enclosure frame)

• Installation Location: Rear side of the enclosure

• Ingress Protection: Designed to maintain the enclosure’s overall IP rating (when properly installed)

• Standard Compliance: Conforms to IEC standards for industrial enclosures

Features

1. High Mechanical Strength
   Manufactured from high-quality steel, the panel provides excellent durability and protection against mechanical impact.

2. External Fixing Design
   Allows for secure attachment without opening the enclosure, enabling easy panel replacement or removal during maintenance.

3. Perfect Fit for Spacial SF Enclosures
   Engineered to integrate seamlessly with Spacial SF enclosures of the same size, maintaining consistent sealing and structural performance.

4. Surface Protection
   Treated with a corrosion-resistant finish (painted or galvanized), suitable for indoor or sheltered outdoor use.

5. Improved Accessibility
   External mounting means easier access and installation, especially in tight or complex configurations.

6. Maintains Enclosure Protection Level
   Designed to work with Schneider gaskets and seals to maintain appropriate levels of dust and water resistance.

Applications

The Schneider NSYBP2012 rear panel is suitable for use in a variety of industrial and commercial applications where robust enclosure systems are required. Typical applications include:

1. Electrical and Power Distribution Cabinets
   Used in the rear of enclosures that house breakers, switchgear, and distribution equipment in industrial facilities.

2. Automation and Control Panels
   Ideal for enclosing programmable logic controllers (PLCs), HMIs, and related components in automated systems.

3. Data and Communication Cabinets
   Forms the rear protection of cabinets used in network infrastructure and structured cabling systems.

4. Process and Instrumentation Systems
   Common in enclosures that support process monitoring and control in industries like oil and gas, water treatment, and manufacturing.

5. Infrastructure Projects
   Used in control systems within transportation, utilities, and public sector installations requiring secure and accessible rear access.

6. Renewable Energy Installations
   Part of electrical cabinets in solar, wind, and battery systems where modular enclosures are needed for flexible layout.
