Schneider NSYCRN43200 | Spacial CRN Enclosure – Plain Door, No Mounting Plate

1. General Description

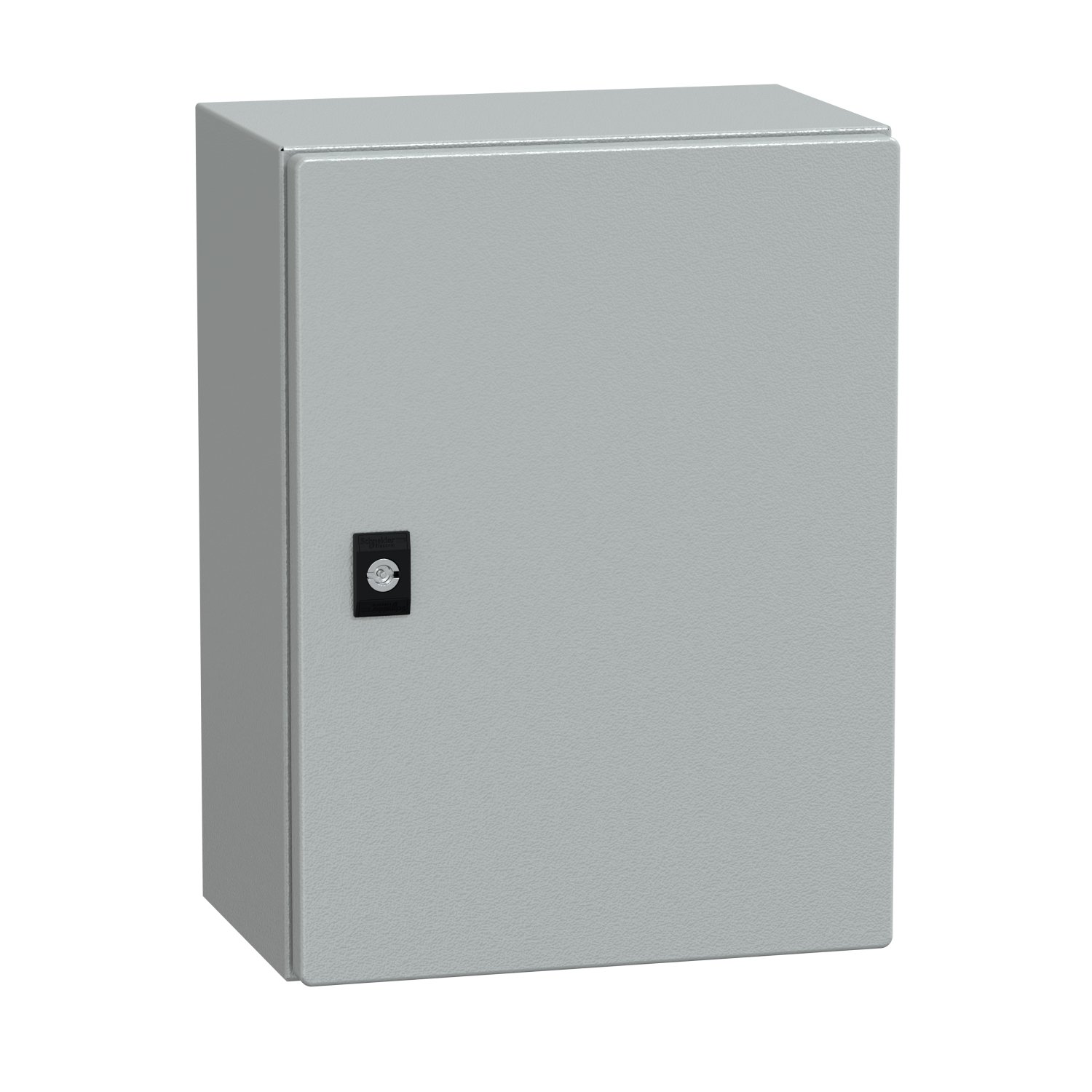

The Schneider NSYCRN43200 is a Spacial CRN enclosure designed to provide secure housing for electrical components in industrial and commercial applications. It features a plain door without a mounting plate and offers high durability, impact resistance, and protection against dust and water. With compact dimensions of H400mm x W300mm x D200mm, this enclosure is ideal for small to medium-sized electrical installations.

2. Technical Specifications

• Product Series: Spacial CRN

• Type: Enclosure with plain door (without mounting plate)

• Material: High-quality steel

• Protection Rating: IP66 (dust-tight and protected against strong water jets)

• Impact Resistance: IK10 (high resistance to mechanical impacts)

• Dimensions: Height 400mm x Width 300mm x Depth 200mm

• Color: RAL 7035 (Light Grey)

• Door Type: Single plain door with a secure locking system

• Mounting Type: Wall-mounted

3. Key Features

• Superior Protection: IP66-rated enclosure ensures protection against dust and powerful water jets, making it ideal for harsh environments.

• Strong Impact Resistance: IK10 rating provides high durability against mechanical shocks and external impacts.

• Compact and Space-Saving Design: Ideal for smaller electrical systems and control units.

• Corrosion-Resistant Coating: Powder-coated steel with RAL 7035 color for long-lasting durability.

• Secure and Easy Installation: Can be wall-mounted, making it suitable for various industrial and commercial applications.

4. Applications

The NSYCRN43200 is widely used in:

• Electrical distribution and control systems

• Automation and process control

• Industrial machinery enclosures

• Data and telecommunication networks

• Outdoor and indoor electrical installations

5. Compliance and Standards

• IP66 (IEC 60529): Ensures excellent protection against dust and water.

• IK10 (IEC 62262): High mechanical impact resistance.

• RoHS Compliance: Free from hazardous substances, ensuring environmental safety.

• CE Certified: Meets European safety and performance regulations.

6. Conclusion

The Schneider NSYCRN43200 is a compact yet durable enclosure, offering reliable protection for electrical components in various industrial and commercial applications. With its IP66 and IK10 ratings, high-quality steel construction, and corrosion-resistant finish, it is an excellent choice for safeguarding electrical equipment in demanding environments.
