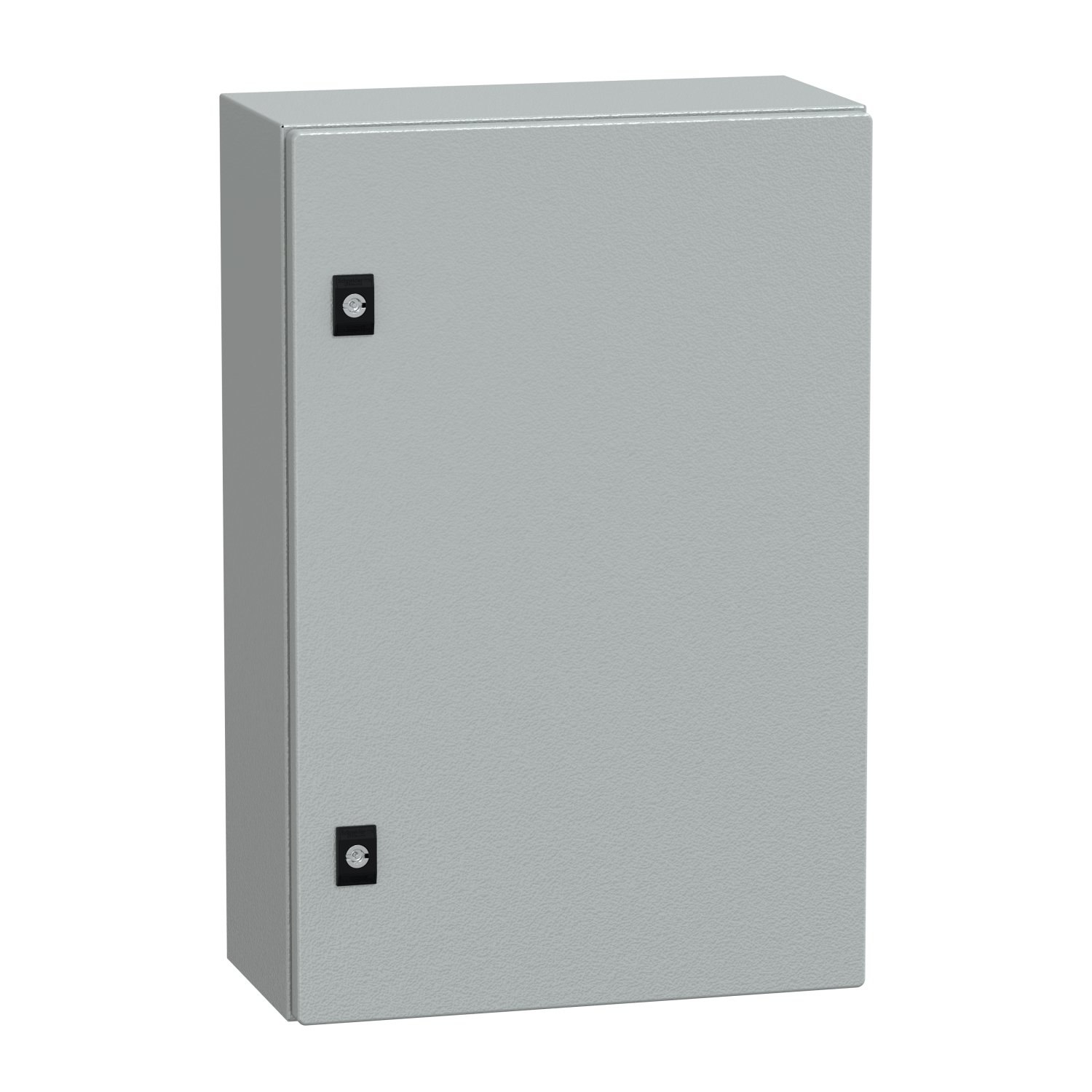

Schneider NSYCRN64200 | Spacial CRN Enclosure – Plain Door, No Mounting Plate

1. General Description

The Schneider NSYCRN64200 is a high-quality Spacial CRN enclosure designed to provide superior protection for electrical and control components in industrial and commercial environments. This model features a plain door without a mounting plate, ensuring exceptional resistance to dust, water, and mechanical impacts. With dimensions of H600mm x W400mm x D200mm, it is suitable for medium-sized electrical and automation systems.

2. Technical Specifications

• Product Series: Spacial CRN

• Type: Enclosure with plain door (without mounting plate)

• Material: High-quality steel

• Protection Rating: IP66 (dust-tight and protected against strong water jets)

• Impact Resistance: IK10 (high mechanical impact resistance)

• Dimensions: Height 600mm x Width 400mm x Depth 200mm

• Color: RAL 7035 (Light Grey)

• Door Type: Single plain door with a secure locking system

• Mounting Type: Wall-mounted

3. Key Features

• High Protection Standards: IP66-rated, ensuring complete dust and water resistance, making it suitable for harsh environments.

• Strong Mechanical Resistance: IK10 rating offers protection against external mechanical impacts.

• Compact and Versatile Design: Ideal for medium-scale electrical control and automation applications.

• Corrosion-Resistant Finish: Powder-coated steel with RAL 7035 color for long-lasting durability.

• Easy Installation: Designed for wall mounting, offering flexibility in various industrial settings.

4. Applications

The NSYCRN64200 enclosure is widely used in:

• Electrical distribution and control systems

• Industrial automation and process control

• Data and telecommunication networks

• Indoor and outdoor electrical installations

• Machine and equipment control enclosures

5. Compliance and Standards

• IP66 (IEC 60529): Ensures excellent protection against dust and strong water jets.

• IK10 (IEC 62262): Provides high resistance to mechanical shocks and impacts.

• RoHS Compliance: Free from hazardous substances, ensuring environmental safety.

• CE Certified: Meets European safety and performance regulations.

6. Conclusion

The Schneider NSYCRN64200 is a durable, reliable, and medium-sized enclosure, making it an excellent choice for electrical and industrial applications. With IP66 and IK10 ratings, robust steel construction, and corrosion-resistant coating, it ensures long-term protection for electrical components in demanding environments.
