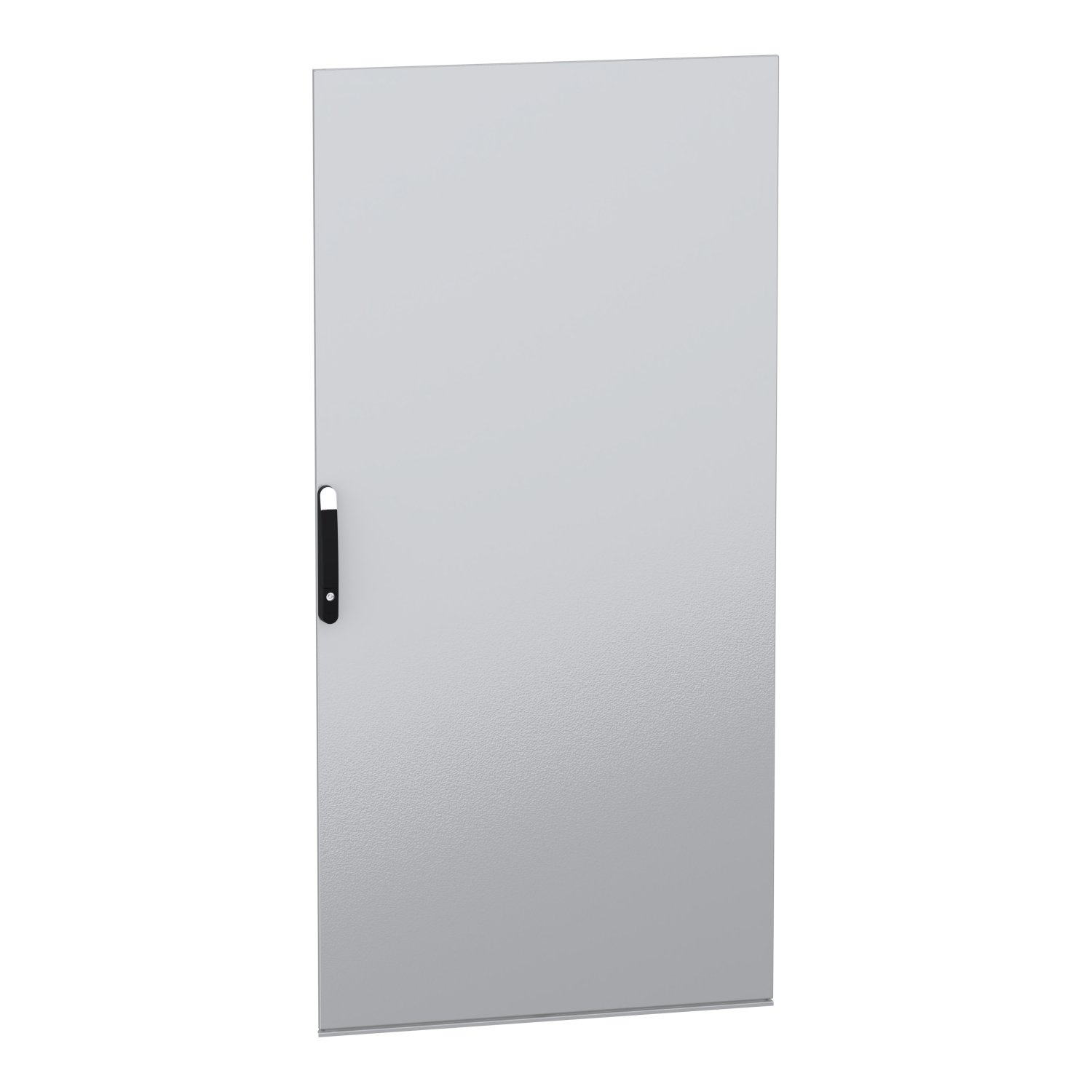

Schneider NSYSFND2010 | Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W1000mm
Schneider NSYSFND2010 | Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W1000mm
Original price was: EGP 3,716,400.00.EGP 2,564,316.00Current price is: EGP 2,564,316.00.
Description
Schneider NSYSFND2010 | Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W1000mm
Technical Specifications
- Model: Schneider NSYSFND2010
- Product Type: Plain Door
- Compatible Enclosure Series: PanelSeT SFN, PanelSeT SM
- Dimensions:
- Height: 2000mm
- Width: 1000mm
- Material: High-strength metal construction
- Application: Electrical enclosures, control cabinets, power distribution systems
Key Features
- Strong and Durable Construction
- Made from high-quality metal, the plain door provides long-lasting durability and resistance to physical impacts.
- The door is designed to withstand environmental challenges such as moisture, dust, and other harsh conditions, ensuring the integrity of electrical systems inside.
- Enhanced Security and Protection
- The plain door provides an effective physical barrier, preventing unauthorized access to the internal electrical components.
- It also protects against external damage, ensuring the safety of critical electrical components housed within the enclosure.
- Easy Installation and Access
- Designed for easy mounting on the PanelSeT SFN and PanelSeT SM enclosures.
- Allows for secure locking options and provides convenient access when maintenance or adjustments are required.
- Optimized for Industrial and Commercial Use
- Ideal for use in industrial control panels, electrical distribution systems, and commercial electrical enclosures.
- Offers a universal fit for electrical enclosures needing a robust, simple door design.
Applications
The Schneider NSYSFND2010 Plain Door is suitable for a wide range of applications, including:
Industrial Electrical Control Panels – Securing internal electrical components in factories, manufacturing plants, and process control environments.
Power Distribution Systems – Protecting electrical systems and circuits in switchgear and distribution panels.
Commercial Buildings – Ensuring secure enclosures for electrical components in office buildings, retail spaces, or warehouses.
Public Infrastructure – Providing protection for electrical systems in transportation, utilities, and public infrastructure projects.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Product or Component Type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - H: 78.7 in (2000 mm) W: 39.4 in (1000 mm) |
| Mounting Location | Front |
| Range compatibility | PanelSeT PanelSeT SFN |
| Device composition | 1 door 1 lock with handle and 5 mm double bar insert 1 locking bar system 4 points 1 reinforcement frame 4 hinges 4 locking bar catches |
| Quantity per Set | Set of 1 |
| Material | sheet steel |
|---|---|
| color | Gray RAL 7035) |
| Surface Finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | External plain |
| Door opening side | Reversible 120 °) |
| Maximum load | 60 kg/m² |
| Height | Nominal: 77.4 in (1966 mm) |
| Width | Nominal: 38.1 in (969 mm) |
| Product Weight | 38.6 lb(US) (17.5 kg) |
| IK degree of protection | IK10 |
|---|
| GTIN | 3606486378144 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 38.98 in (99.000 cm) |
| Package 1 Length | 78.74 in (200.000 cm) |
| Package 1 Weight | 82.673 lb(US) (37.500 kg) |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 39.96 in (101.500 cm) |
| Package 2 Width | 47.24 in (120.000 cm) |
| Package 2 Length | 78.74 in (200.000 cm) |
| Package 2 Weight | 1408.755 lb(US) (639.000 kg) |
| Warranty | 18 months |
|---|
