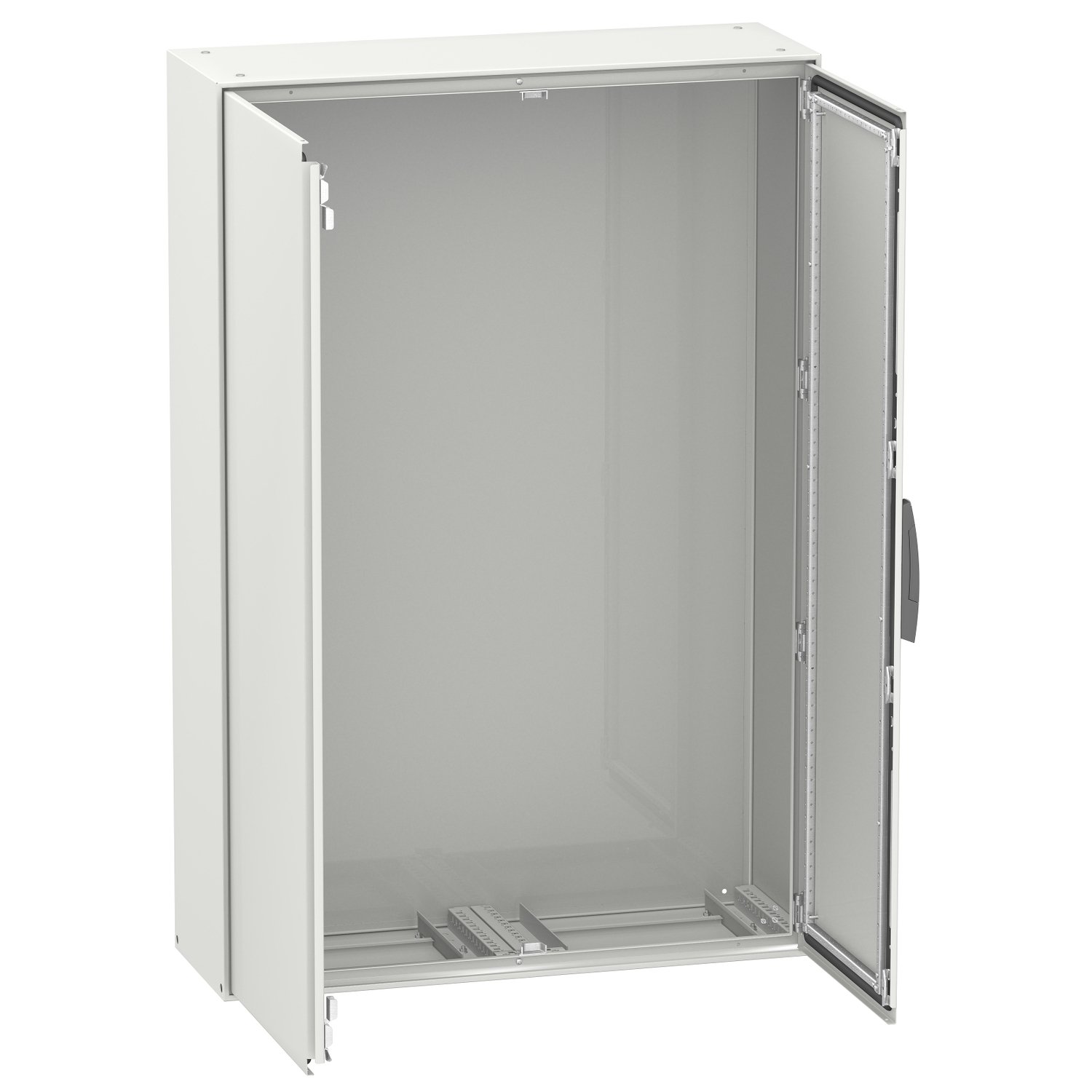

Schneider NSYSM1410402D | Spacial SM compact enclosure without mounting plate – 1400x1000x400 mm

Technical Specifications

• Product Reference: NSYSM1410402D

• Series: Spacial SM

• Enclosure Type: Compact, floor-standing

• Material: Galvanized steel

• Finish: Epoxy-polyester powder coated

• Color: Light grey (RAL 7035)

• External Dimensions:

  • Height: 1400 mm

  • Width: 1000 mm

  • Depth: 400 mm

• Door Type: Double front doors with concealed hinges

• Locking Mechanism: 3-point locking system with handle

• Mounting Plate: Not included (available separately)

• Protection Rating: IP55 (conforming to IEC 60529)

• Impact Resistance: IK10 (according to IEC 62262)

• Cable Entry: Removable bottom gland plate

• Standards Compliance: IEC 62208, IEC 60529, IEC 62262

Key Features

• Spacious double-door design allows full access to the enclosure interior, ideal for large assemblies and complex wiring layouts.

• IP55 ingress protection ensures excellent resistance to dust and water jets, making it suitable for demanding indoor or semi-industrial use.

• IK10 mechanical impact rating provides high resistance against physical damage, enhancing durability and component protection.

• Modular and scalable design, ready to be customized with accessories such as mounting plates, chassis, internal doors, or ventilation systems.

• Steel body with durable powder coating ensures long-term corrosion resistance and mechanical strength.

• Bottom gland plate allows easy and flexible cable routing with ample space for high-capacity wiring systems.

• No mounting plate included, offering flexibility for custom setups, third-party configurations, or dedicated mounting solutions.

Applications

The NSYSM1410402D enclosure is ideally suited for various professional and industrial sectors requiring robust, flexible, and high-capacity enclosures:

• Electrical power distribution

• Process automation and factory control systems

• Motor control centers (MCCs)

• Building management and HVAC systems

• Data and communication installations

• Renewable energy and smart grid interfaces

• Infrastructure and utility control rooms
