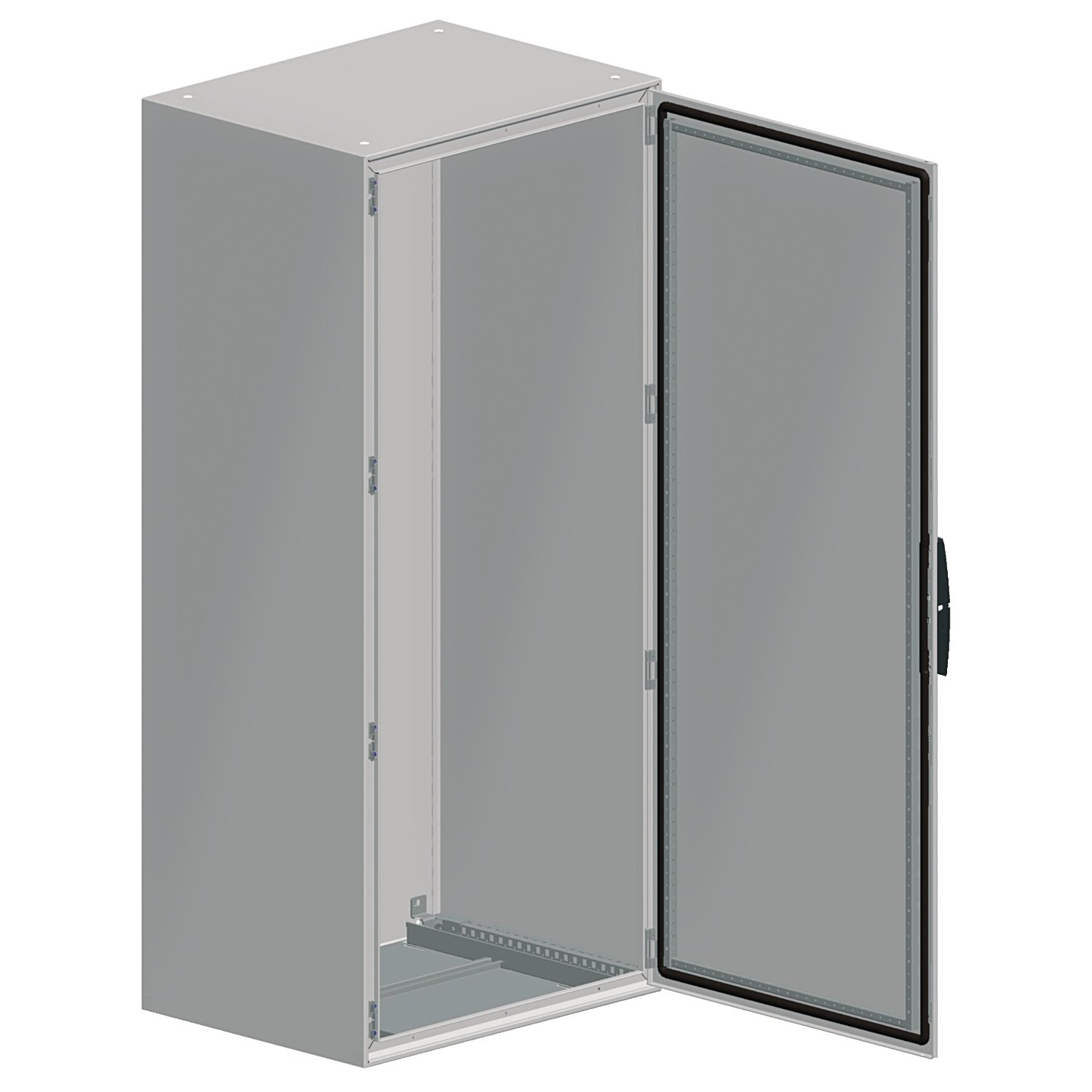

Schneider NSYSM14830 | Spacial SM compact enclosure without mounting plate – 1400x800x300 mm
Schneider NSYSM14830 | Spacial SM compact enclosure without mounting plate – 1400x800x300 mm
Original price was: EGP 5,604,525.00.EGP 3,867,122.00Current price is: EGP 3,867,122.00.
Description
Schneider NSYSM14830 | Spacial SM compact enclosure without mounting plate – 1400x800x300 mm
Technical Specifications
-
Product Reference: NSYSM14830
-
Range: Spacial SM
-
Enclosure Type: Compact floor-standing enclosure
-
Material: Galvanized steel
-
Surface Finish: Epoxy-polyester powder coating
-
Color: Light grey (RAL 7035)
-
Dimensions:
-
Height: 1400 mm
-
Width: 800 mm
-
Depth: 300 mm
-
-
Door Configuration: Single front door with concealed hinges and 3-point locking system
-
Mounting Plate: Not included
-
Degree of Protection: IP55 (according to IEC 60529)
-
Mechanical Impact Resistance: IK10 (according to IEC 62262)
-
Standards Compliance: IEC 62208, IEC 60529, IEC 62262
-
Delivered With:
-
Door
-
Body
-
Locking system
-
Gland plate
-
Mounting accessories (excluding mounting plate)
-
Key Features
-
Robust steel construction ensures high mechanical protection and resistance to harsh industrial environments.
-
IP55 rating provides strong protection against dust ingress and water jets, making it suitable for indoor and semi-outdoor applications.
-
Spacious interior allows for flexible component arrangement and future system expansion.
-
3-point locking system improves door security and ensures tight sealing.
-
Removable gland plates enable easy cable management and integration with existing wiring systems.
-
Modular design allows for optional accessories such as mounting plates, inner doors, ventilation kits, and lifting brackets.
Applications
The NSYSM14830 enclosure is ideal for a wide variety of applications requiring durable, protective housing for electrical or automation equipment, including:
-
Electrical distribution panels
-
Automation and control systems
-
PLC and drive installations
-
Building management systems
-
Industrial machine panels
-
Data and telecom systems
-
Power factor correction assemblies
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Spacial |
|---|---|
| Product name | Spacial SM |
| product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body 1 cable gland plate 1 locking system with handle: door 4 mounting plate bracket 1 door |
| Removable parts | Door by screws hinge Mounting plate bracket by screws |
| enclosure nominal height | 1400 mm |
| enclosure nominal width | 800 mm |
| Enclosure nominal depth | 300 mm |
| Number of doors | Front: 1 door(s) |
|---|---|
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners Single piece body with welded rear panel |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Cable entry | 1 entry |
| Material | Body: sheet steel Door: sheet steel Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) Handle: black (RAL 9005) |
| accessibility for operation | Front |
| net weight | 60 kg |
| Standards | IEC 62208 |
|---|---|
| Product certifications | DNV UL BV |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 153.0 cm |
| Package 1 Width | 84.5 cm |
| Package 1 Length | 39.0 cm |
| Package 1 Weight | 60.0 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 78 cm |
| Package 2 Width | 85 cm |
| Package 2 Length | 153 cm |
| Package 2 Weight | 132 kg |
| Warranty | 18 months |
|---|
