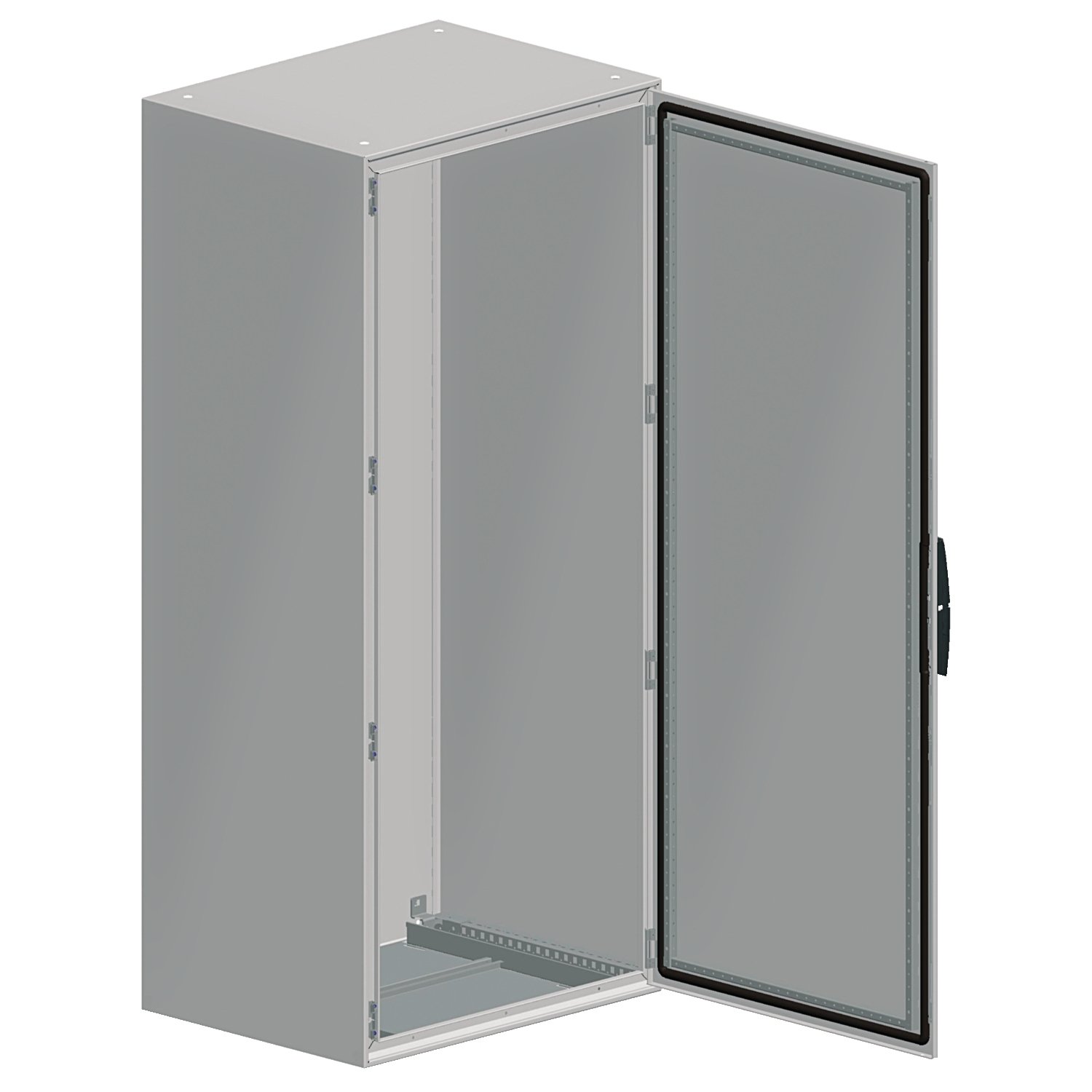

Schneider NSYSM14640 | PanelSeT SM compact enclosure without mounting plate – 1400x600x400 mm
Schneider NSYSM14640 | PanelSeT SM compact enclosure without mounting plate – 1400x600x400 mm
Original price was: EGP 5,963,625.00.EGP 4,114,901.00Current price is: EGP 4,114,901.00.
Description
Schneider NSYSM14640 | PanelSeT SM compact enclosure without mounting plate – 1400x600x400 mm
Technical Specifications
-
Product Reference: NSYSM14640
-
Range: PanelSeT (Spacial SM)
-
Enclosure Type: Compact floor-standing steel enclosure
-
Material: Galvanized steel
-
Finish: Epoxy-polyester powder coated
-
Color: Light grey (RAL 7035)
-
External Dimensions:
-
Height: 1400 mm
-
Width: 600 mm
-
Depth: 400 mm
-
-
Mounting Plate: Not included (optional and sold separately)
-
Door Type: Single door with concealed hinges and 3-point locking system
-
Ingress Protection Rating: IP55 (according to IEC 60529)
-
Mechanical Impact Resistance: IK10 (according to IEC 62262)
-
Cable Entry: Removable bottom gland plate
-
Compliance Standards: IEC 62208, IEC 60529, IEC 62262
-
Supplied With:
-
Enclosure body
-
Front door
-
Locking mechanism
-
Gland plate
-
Grounding hardware
-
Key Features
-
IP55 protection ensures resistance to dust and water jets, making the enclosure suitable for indoor and semi-industrial applications.
-
IK10 mechanical strength provides robust protection against mechanical impacts, ensuring safety of internal components.
-
Customizable interior thanks to the absence of a mounting plate, allowing tailored layouts for unique electrical installations.
-
Durable steel construction with corrosion-resistant finish extends lifespan and maintains appearance in demanding environments.
-
Secure door system with a 3-point locking mechanism and concealed hinges enhances security and access control.
-
Flexible cable management with removable gland plates and optional accessories for improved cable routing and sealing.
Applications
The NSYSM14640 is designed for a wide range of applications requiring strong enclosure protection and adaptability, including:
-
Electrical distribution boards
-
Industrial automation and process control panels
-
Machine control cabinets
-
IT and network equipment housing
-
HVAC and building management systems
-
Utility control stations
-
Renewable energy integration panels
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Spacial |
|---|---|
| Product name | Spacial SM |
| Product or Component Type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body 1 cable gland plate 1 locking system with handle door 4 mounting plate bracket 1 door |
| Removable parts | Door by screws hinge Mounting plate bracket by screws |
| enclosure nominal height | 55.12 in (1400 mm) |
| enclosure nominal width | 23.62 in (600 mm) |
| Enclosure nominal depth | 15.75 in (400 mm) |
| Number of doors | Front 1 |
|---|---|
| Door opening side | Reversible 120 °) |
| Door type | Solid |
| lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners Single piece body with welded rear panel |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Cable entry | 1 entry |
| Material | Body sheet steel Door sheet steel Hinge zamak |
| Surface finish | Epoxy-polyester powder |
| color | Enclosure Gray RAL 7035) Handle Black RAL 9005) |
| accessibility for operation | Front |
| Net Weight | 134.48 lb(US) (61 kg) |
| Standards | IEC 62208 |
|---|---|
| Product Certifications | BV DNV UL |
| IK degree of protection | IK10 IEC 62262 |
| IP degree of protection | IP55 IEC 60529 |
| Category | US10ES180035 |
|---|---|
| Discount Schedule | 0ES1 |
| GTIN | 3606485120508 |
| Returnability | No |
| Country of origin | ES |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 60.24 in (153.0 cm) |
| Package 1 Width | 25.39 in (64.5 cm) |
| Package 1 Length | 19.29 in (49.0 cm) |
| Package 1 Weight | 134.48 lb(US) (61.0 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 38.58 in (98 cm) |
| Package 2 Width | 25.59 in (65 cm) |
| Package 2 Length | 60.24 in (153 cm) |
| Package 2 Weight | 257.94 lb(US) (117 kg) |
| Warranty | 18 months |
|---|
